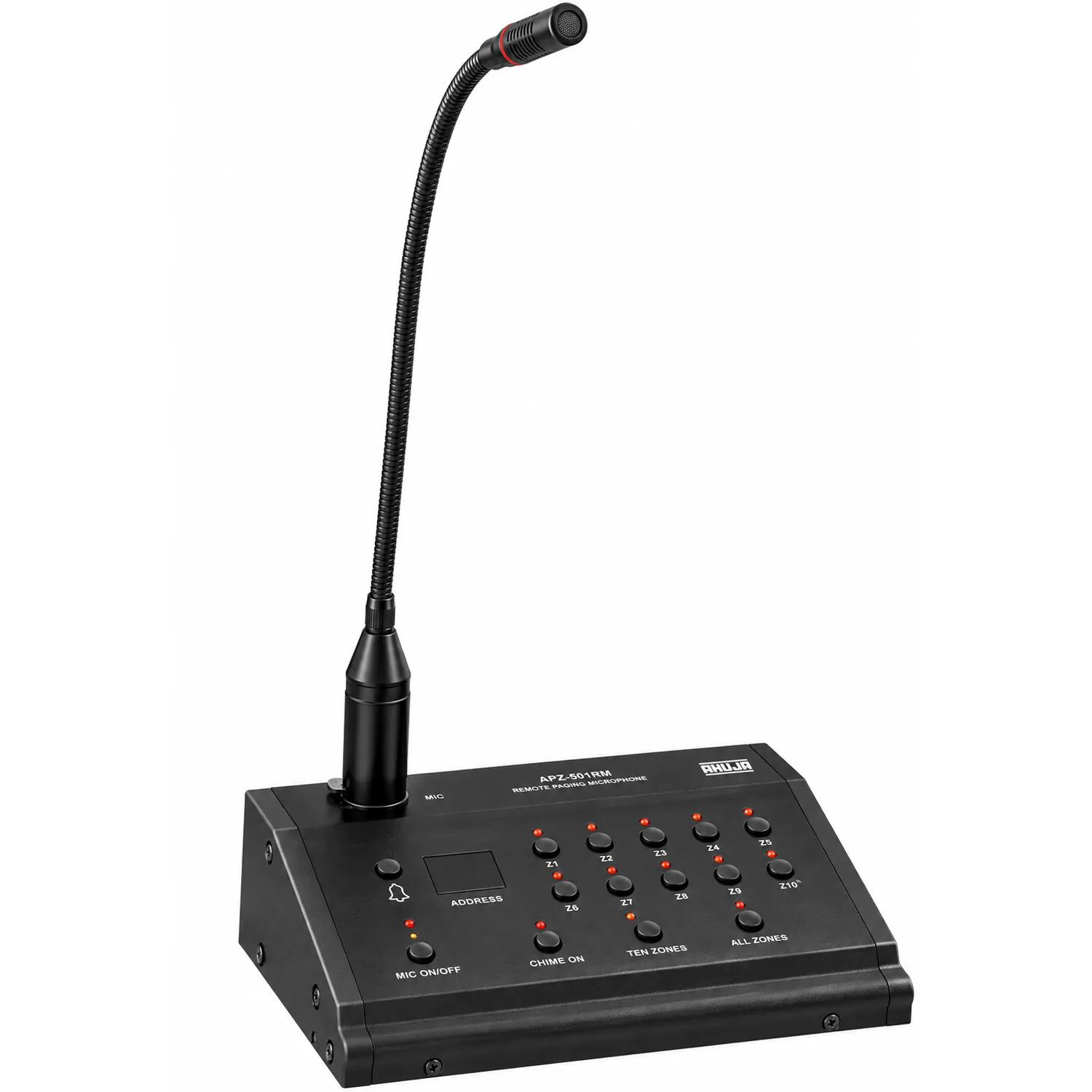

A high performance remote zonal paging console that works with paging controller APZ-502CU for remote paging and control over a multi-zone system.
Features
A high performance remote zonal paging console that works with paging controller APZ-502CU for remote paging and control over a multi-zone system.
Specifications, Q&A and videos
APZ-501RM technical specifications
Input
MIC 600Ω, 10mV unbalanced; Line 10kΩ, 775mV unbalanced
Output
Balanced
Frequency Response
MIC 100Hz–15kHz; Line 30Hz–18kHz
S/N Ratio
MIC 60dB; Line 80dB
Controls
Chime and MIC volume, 300 channel selection, chime button, MIC on/off, 10 zones and All Zone, power
Power Supply
DC 24V
Communication Protocol
RS422
Communication Input and Speed
RJ45, 4800 bps
Dimensions
W220 × H51.5 × D142.7 mm
Weight
1.25 kg
01What type of remote paging mic console is the APZ-501RM?
The APZ-501RM is an Ahuja remote paging mic console in the Paging System. A high performance remote zonal paging console that works with paging controller APZ-502CU for remote paging and control over a multi-zone system. Available from Mansukhlal Sales Corporation, an authorized dealer.
02What are the main features of the APZ-501RM?
A high performance remote zonal paging console that works with paging controller APZ-502CU for remote paging and control over a multi-zone system; Several modes (all zones, 10 zones or individual zones) can be achieved through this paging console; Capability to page upto 300 zones from one APZ-501RM; Capability of cascading (series connection with RJ 45) up to 16 microphones for paging from multiple locations; Operation number input keys with LED display; Can manage upto 30 paging controllers APZ-502CU (for 300 zones).
03What is the input of the APZ-501RM?
The APZ-501RM input is MIC 600Ω, 10mV unbalanced; Line 10kΩ, 775mV unbalanced.
04What is the output of the APZ-501RM?
The APZ-501RM output is Balanced.
05What is the frequency response of the APZ-501RM?
The APZ-501RM frequency response is MIC 100Hz–15kHz; Line 30Hz–18kHz.
06What is the s/n ratio of the APZ-501RM?
The APZ-501RM s/n ratio is MIC 60dB; Line 80dB.
07What is the controls of the APZ-501RM?
The APZ-501RM controls is Chime and MIC volume, 300 channel selection, chime button, MIC on/off, 10 zones and All Zone, power.
