Ahuja
10 Zone Paging selector / controller.
| Input | MIC 1 and 2: 600Ω, 5mV unbalanced; Line 1 and 2: 10kΩ, 775mV unbalanced |
|---|---|
| Frequency Response | MIC 100Hz–15kHz; Line 30Hz–18kHz |
| S/N Ratio | MIC 60dB; Line 80dB |
| Controls | MIC 1 and 2 volume, 10 channel selectors, chime button, power |
| Power Supply | 230V / 50Hz |
| Communication Protocol | RS422 |
| Communication Input and Speed | RJ45, 4800 bps |
| Dimensions | W484 × H88 × D303 mm |
| Weight | 4.6 kg |

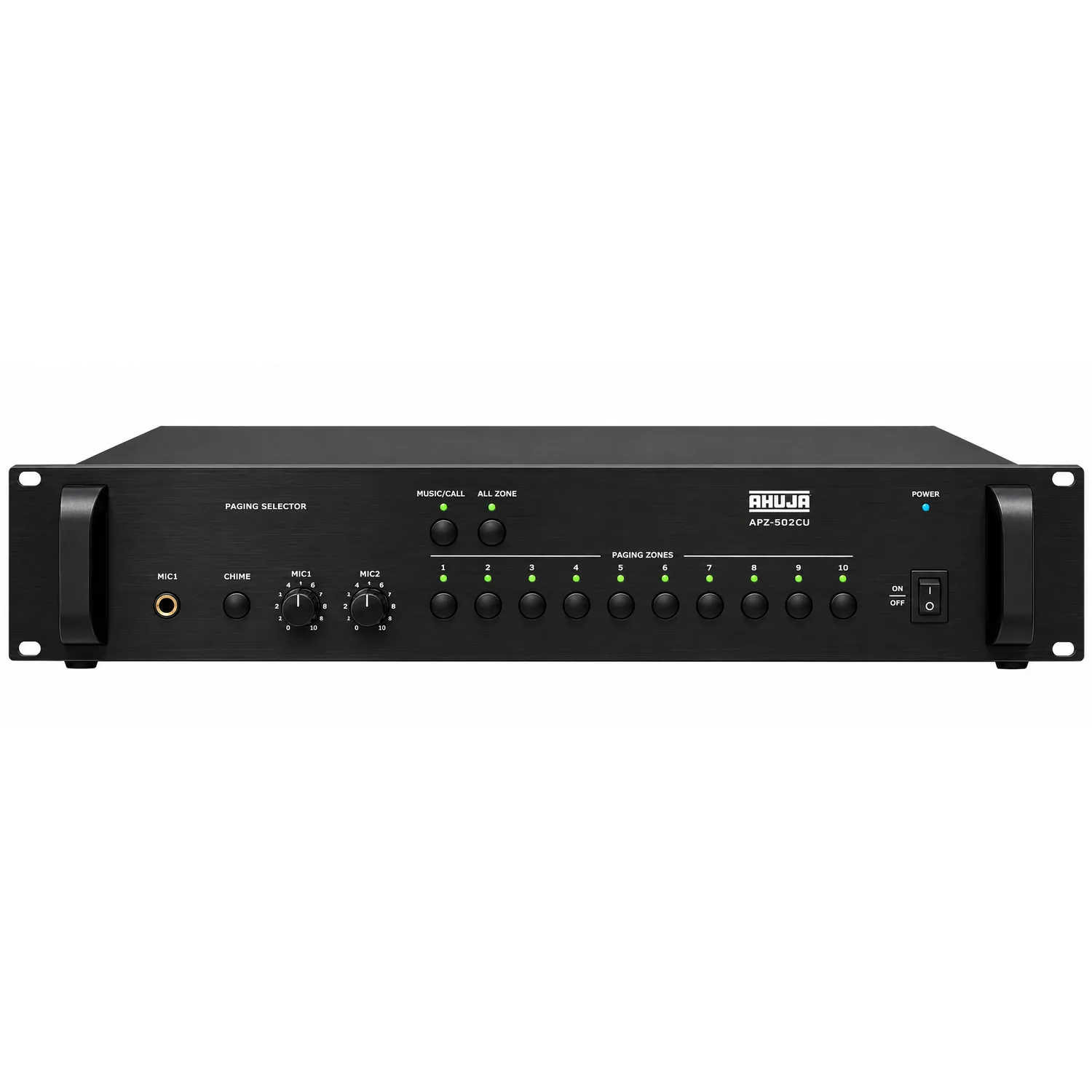

The APZ-502CU is an Ahuja paging selector control unit in the Paging System. 10 Zone Paging selector / controller. Available from Mansukhlal Sales Corporation, an authorized dealer.
10 Zone Paging selector / controller; Provision for connecting APZ-501RM for paging from separate location; Provision also for connecting an additional microphone and doing zonal paging from the Paging Selector itself. These announcements will have priority over announcements made from a Remote Paging Microphone; 2 channel amplifier inputs (Channel A for BGM Amplifier and Channel B for Paging Amplifier). When paging announcement is made, music will be interrupted only in zones where announcement is required; Two color zone status LEDs to indicate music or paging status of each zone; Provision to cascade upto 30 sets of APZ-502CU for a 300 zone system.
The APZ-502CU input is MIC 1 and 2: 600Ω, 5mV unbalanced; Line 1 and 2: 10kΩ, 775mV unbalanced.
The APZ-502CU frequency response is MIC 100Hz–15kHz; Line 30Hz–18kHz.
The APZ-502CU s/n ratio is MIC 60dB; Line 80dB.
The APZ-502CU controls is MIC 1 and 2 volume, 10 channel selectors, chime button, power.
The APZ-502CU power supply is 230V / 50Hz.
