Ahuja
AMA-240DP
- Power
- 325 WATTS
- Category
- Mixer Amplifiers
- Category
- DP Mixer Amplifiers

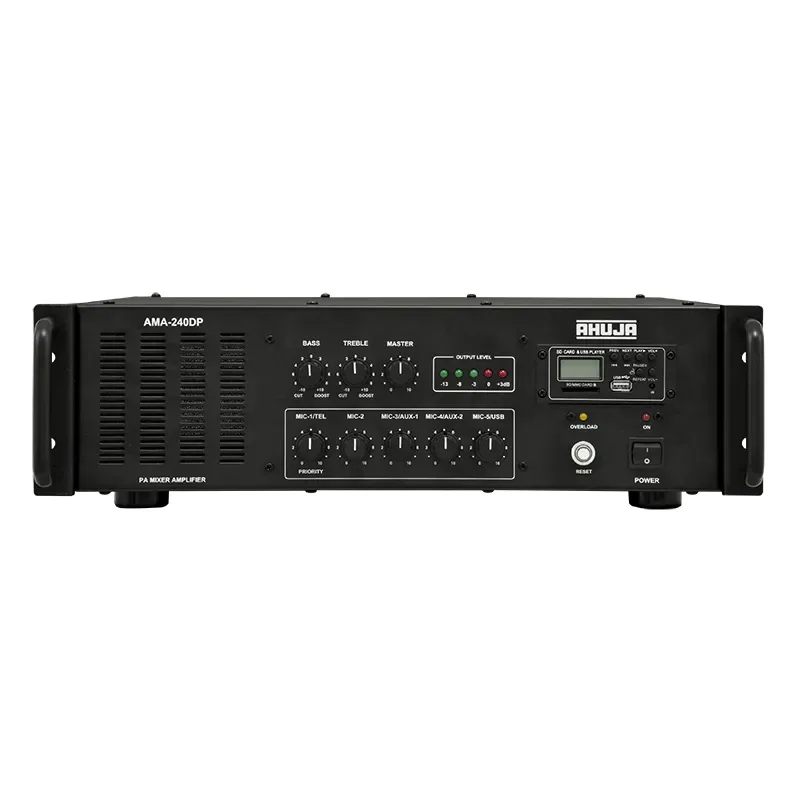

The Ahuja AMA-240DP is a 325W PA product. Resettable circuit breaker for protection against overload and short circuit.
Instant transfer to DC power (Car Battery) if AC power fails. Ground lift switch provided at rear panel which helps reducing the hum that occurs due to multiple ground loops in the installations.
Features
- High quality mixer amplifier with built-in MP3 player in standard 19" rack mountable chassis.
- 3 Unbalanced Mic inputs, 2 balanced Mic inputs, 2 Aux inputs,1 Telephone & 1 balanced line Input.
- Voice Operated Priority in Mic-1 and Telephone Inputs.
- Preamplifier Output (unbal.) and Line Output (bal.) for recording & connecting a booster amplifier.
- Ground lift switch provided at rear panel which helps reducing the hum that occurs due to multiple ground loops in the installations.
- Resettable circuit breaker for protection against overload and short circuit. Instant transfer to DC power (Car Battery) if AC power fails.
Specifications, Q&A and videos
| Power Output | 415W Max., 325W RMS at 10% THD, 240W RMS at 1% THD |
|---|---|
| Output Regulation | ≤ 2 dB, no load to full load at 1kHz |
| Input Channels | 3 × Mic 2.5mV/4.7kΩ (unbal.), 2 × Mic 2.0mV/2kΩ (bal.), 1 × Line 1V/50kΩ (Bal.), 2 × Aux 100mV/470kΩ, 1 × Telephone 150mV/10kΩ |
| Frequency Response | 50-15,000Hz ±3dB |
| Signal to Noise Ratio | 60dB |
| Tone Controls | Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz |
| Output | Preamp 200mV/600Ω (Unbal.), Line 1V/1kΩ (Bal.), Monitor 5V/8Ω |
| Speaker Output | 4Ω, 8Ω, 70V & 100V |
| Digital Player | MP3 Player with USB, SD / MMC Card Reader & Bluetooth |
| Power Supply | AC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery) |
| Power Consumption | AC: 600VA DC: 7A |
| Dimensions | W485 × H142 × D405 mm |
| Weight | 21.00kg |
The AMA-240DP is an Ahuja PA product rated 325 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
High quality mixer amplifier with built-in MP3 player in standard 19" rack mountable chassis; 3 Unbalanced Mic inputs, 2 balanced Mic inputs, 2 Aux inputs,1 Telephone & 1 balanced line Input; Voice Operated Priority in Mic-1 and Telephone Inputs; Preamplifier Output (unbal.) and Line Output (bal.) for recording & connecting a booster amplifier; Ground lift switch provided at rear panel which helps reducing the hum that occurs due to multiple ground loops in the installations; Resettable circuit breaker for protection against overload and short circuit. Instant transfer to DC power (Car Battery) if AC power fails.
The AMA-240DP output regulation is ≤ 2 dB, no load to full load at 1kHz.
The AMA-240DP input channels is 3 × Mic 2.5mV/4.7kΩ (unbal.), 2 × Mic 2.0mV/2kΩ (bal.), 1 × Line 1V/50kΩ (Bal.), 2 × Aux 100mV/470kΩ, 1 × Telephone 150mV/10kΩ.
The AMA-240DP frequency response is 50-15,000Hz ±3dB.
The AMA-240DP signal to noise ratio is 60dB.
The AMA-240DP tone controls is Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz.
