SM Professional
AiR Pro 36
- Channels
- 36 Channels
- Series
- AiR Pro Series
- Category
- Mixers
- Category
- Analog Mixers

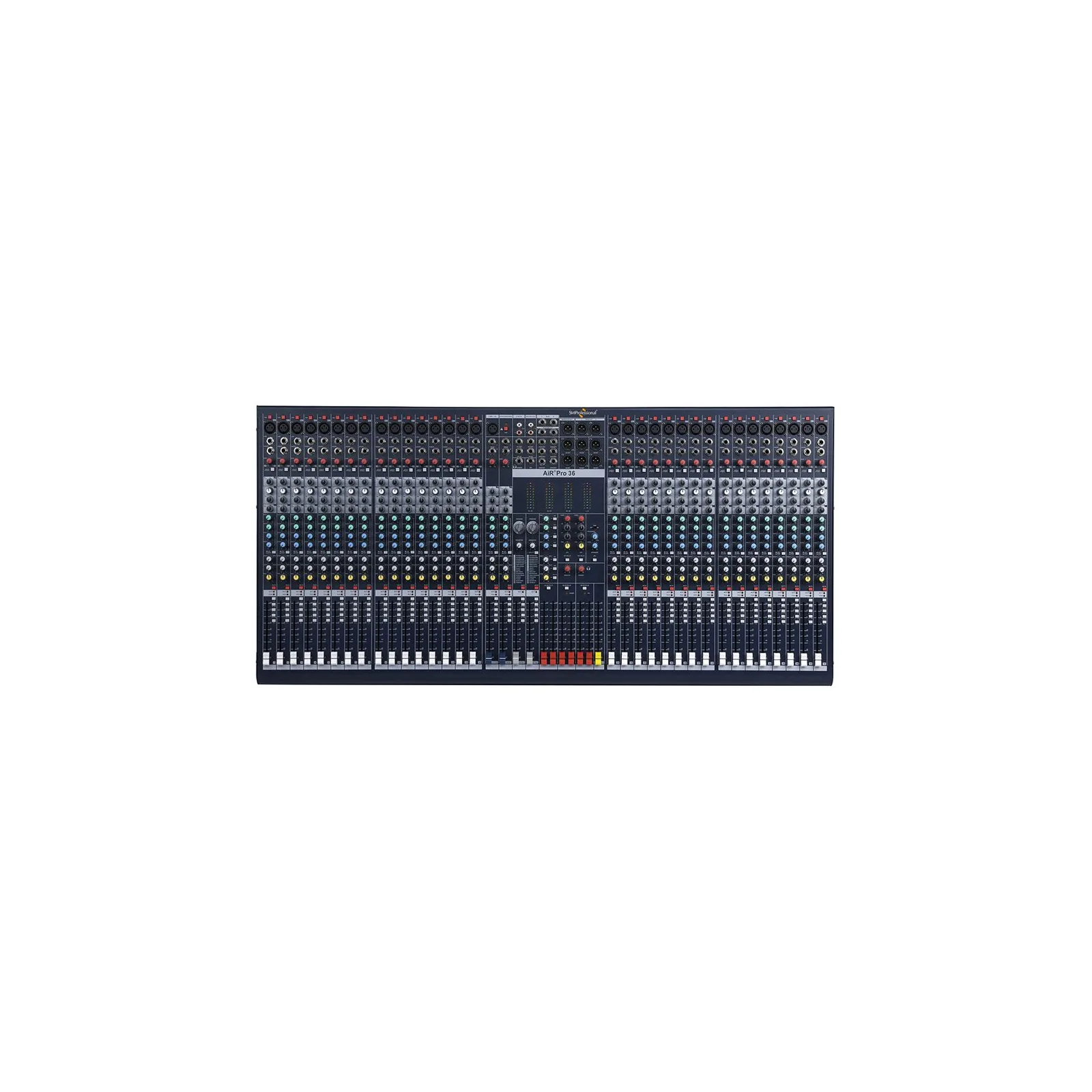

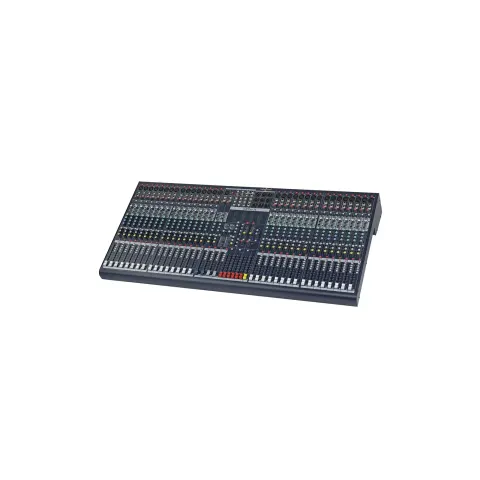

The AiR Pro 36 is a 36 channel Mixing Console with Built-in Dual Effects Processor dual effects processor, designed for live, front-of-house touring and installation applications.
Features
- 36 inputs (32 Mic/Line + 2 Stereo Line Inputs).
- Built-in Dual Multi Effects Processor
- 6 Sub Group with individual outputs.
- 6 Aux Channels (4 Pre , 2 Post) & stereo Aux return.
- Individual + 48V Phantom switch on each channel
- Mono sub output with low frequency selection.
- 100mm faders.
- Mix & Group Routing on each channel.
- 100Hz Low cut one each mono channel.
- Stereo AUX Return.
- 3-band EQ with Mid-sweep on mono inputs.
- 3-band EQ on stereo inputs.
- Inserts On Mono Channel.
- PFL switch on each channel.
- Peak & Mute LED per channel.
- Headphones & Monitor outputs with level control.
- 2-track RCA Input with level control.
- XLR & Jack main outputs.
- 2-track RCA record output.
- 12 V Lamp Socket
Specifications, Q&A and videos
| Series | AiR Pro Series |
|---|---|
| Nominal Gain (Mic/Line/Stereo Line) | 60dB/40dB/20dB |
| Max Gain (Mic/Line/Stereo Line) | 80dB/60dB/40dB |
| Mic (Gain Min/Gain Max) | -10dBu / -60dBu |
| Line (Gain Min /Gain Max) | +10dBu / -40dBu |
| Stereo Line (Gain Min /Gain Max) | +10dBu / -20dBu |
| Mic Input | 1.5 KΩ Balanced |
| Line input | 20KΩ Balanced /10KΩ Unbalanced |
| Main Output level (Nominal / Max) | +0dBu (0.775V RMS) / +20dBu (7.75V RMS) |
| Frequency Response | 20Hz to 20KHz (+0/-1 dB) |
| Total Harmonic Distortion | < 0.02% |
| Signal to Noise Ratio | -80dB |
| Clip indication | 5 dB prior to true clip |
| Mono Mic [Treble/Mid(with sweep)/Bass] | ±16dB @ 12KHz/140Hz-3KHz/80 Hz |
| Stereo Mic/Line (Treble/Bass) | ±16dB @ 12KHz/80 Hz |
| EFX | 2 x 16EFX (EFX1 & EFX 2) |
| Phantom Supply | +48V (Individual Switch on each Channels) |
| Dimensions (W x D x H)mm | 1105 x 520 x 130 |
| Net Weight (Kgs.) | 18 |
The AiR Pro 36 is an SM Professional 36 channel Mixer in the AiR Pro Series. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
36 inputs (32 Mic/Line + 2 Stereo Line Inputs); Built-in Dual Multi Effects Processor; 6 Sub Group with individual outputs; 6 Aux Channels (4 Pre , 2 Post) & stereo Aux return; Individual + 48V Phantom switch on each channel; Mono sub output with low frequency selection.
The AiR Pro 36 nominal gain (mic/line/stereo line) is 60dB/40dB/20dB.
The AiR Pro 36 max gain (mic/line/stereo line) is 80dB/60dB/40dB.
The AiR Pro 36 mic (gain min/gain max) is -10dBu / -60dBu.
The AiR Pro 36 line (gain min /gain max) is +10dBu / -40dBu.
The AiR Pro 36 stereo line (gain min /gain max) is +10dBu / -20dBu.
