SM Professional
AiR Pro 28
- Series
- AiR Pro Series
- Category
- Mixers
- Category
- Analog Mixers

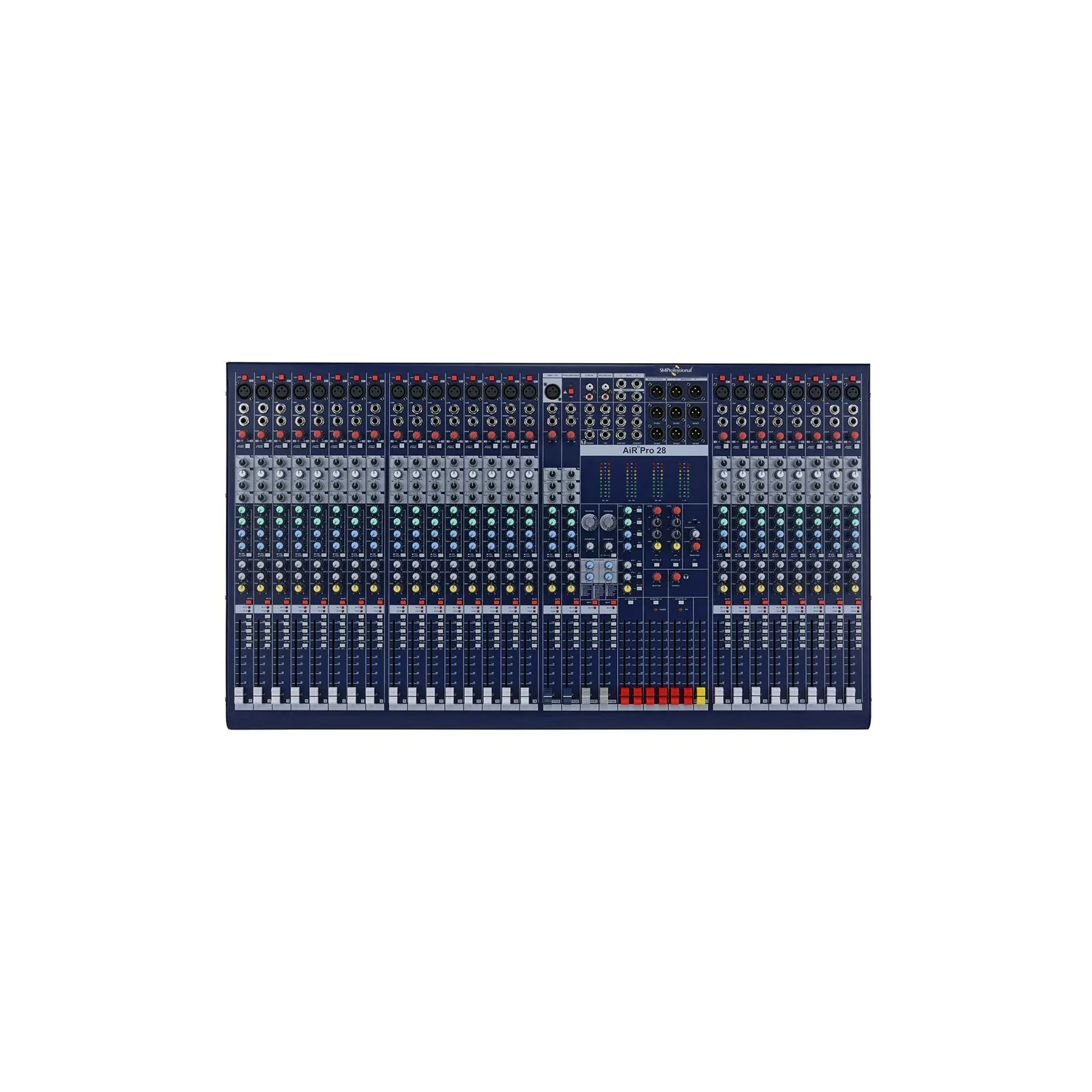

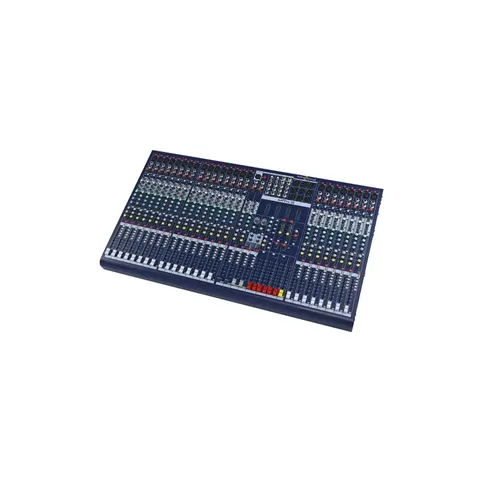

The AiR Pro 28 Professional Mixing Console is a 28 input console with Built-in Dual Multi Effects Processor, designed for live sound in front-of-house and touring audio applications.
Features
- 28 input Mixer (24 Mic/Line & 2 Stereo Inputs).
- Built-in Dual Multi Effects Processor.
- Provision on board to route EFX to monitors (via AUX 3 & AUX 4).
- 3-band EQ with Mid-sweep on mono inputs.
- 3-band EQ on stereo inputs.
- Insert On Mono Channel.
- 6 AUX Channels (4 pre, 2 post)
- Stereo AUX Return.
- Mix & Group Routing on each channel.
- 6 Sub Group with individual outputs.
- 100mm faders.
- High quality dual effects processor.
- PFL switch on each channel.
- 100Hz Low cut on each mono channels.
- Peak & Mute LED per channel.
- 2-track RCA record output.
- Headphones & Monitor outputs with level control.
- 2-track RCA Input with level control.
- Individual + 48V Phantom switch on each mono channel.
- 12 V Lamp Socket
- Mono sub output with low frequency selection.
- XLR & Jack main outputs.
Specifications, Q&A and videos
| Series | AiR Pro Series |
|---|---|
| Nominal Gain (Mic/Line/Stereo Line) | 60dB/40dB/20dB |
| Max Gain (Mic/Line/Stereo Line) | 80dB/60dB/40dB |
| Mic (Gain Min/Gain Max) | -10dBu/-60dBu |
| Line (Gain Min /Gain Max) | +10dBu/-40dBu |
| Stereo Line (Gain Min /Gain Max) | +10dBu/-20dBu |
| Mic Input | 1.5 KΩ Balanced |
| Line input | 20KΩ Balanced/10KΩ UnBalanced |
| Main Output & Group Output (Nominal/Max) | 0dBu (0.775V RMS) / +20dBu (7.75V RMS) Max |
| Frequency Response | 20Hz to 20KHz (+0/-1 dB) |
| Total Harmonic Distortion | < 0.02% |
| Signal to Noise Ratio | -80dB |
| Clip indication | 5dB prior to true clip |
| Mono MIC (Treble/Mid(with swip)/Bass) | ±16dB @ 12KHz/140Hz-3KHz/80Hz |
| Stereo Line (Treble/Bass) | ±16dB @ 12KHz/80Hz |
| Effect & USB | 2 x 16EFX (EFX1 & EFX2) |
| Phantom Supply | +48V ((Individual Switch on each Channel) |
| Power Supply | 150V-240V / 50Hz |
| Power Consumption | 50W Max |
| Dimensions (W x D x H in mm) | 900 x 520 x 130mm |
| Net Weight (Kgs.) | 16.5 Kg |
| Gross Weight (Kgs.) | 19.6 Kg |
The AiR Pro 28 is an SM Professional Expanded AiR Pro mixing consoles for larger application in the AiR Pro Series. The AiR Pro 28 Professional Mixing Console is a 28 input console with Built-in Dual Multi Effects Processor, designed for live sound in front-of-house and touring audio. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
28 input Mixer (24 Mic/Line & 2 Stereo Inputs); Built-in Dual Multi Effects Processor; Provision on board to route EFX to monitors (via AUX 3 & AUX 4); 3-band EQ with Mid-sweep on mono inputs; 3-band EQ on stereo inputs; Insert On Mono Channel.
The AiR Pro 28 nominal gain (mic/line/stereo line) is 60dB/40dB/20dB.
The AiR Pro 28 max gain (mic/line/stereo line) is 80dB/60dB/40dB.
The AiR Pro 28 mic (gain min/gain max) is -10dBu/-60dBu.
The AiR Pro 28 line (gain min /gain max) is +10dBu/-40dBu.
The AiR Pro 28 stereo line (gain min /gain max) is +10dBu/-20dBu.
