Ahuja
ALIVE 512
- Power
- 500 WATTS
- Series
- ALIVE Series
- Category
- Speakers
- Category
- Active Speakers

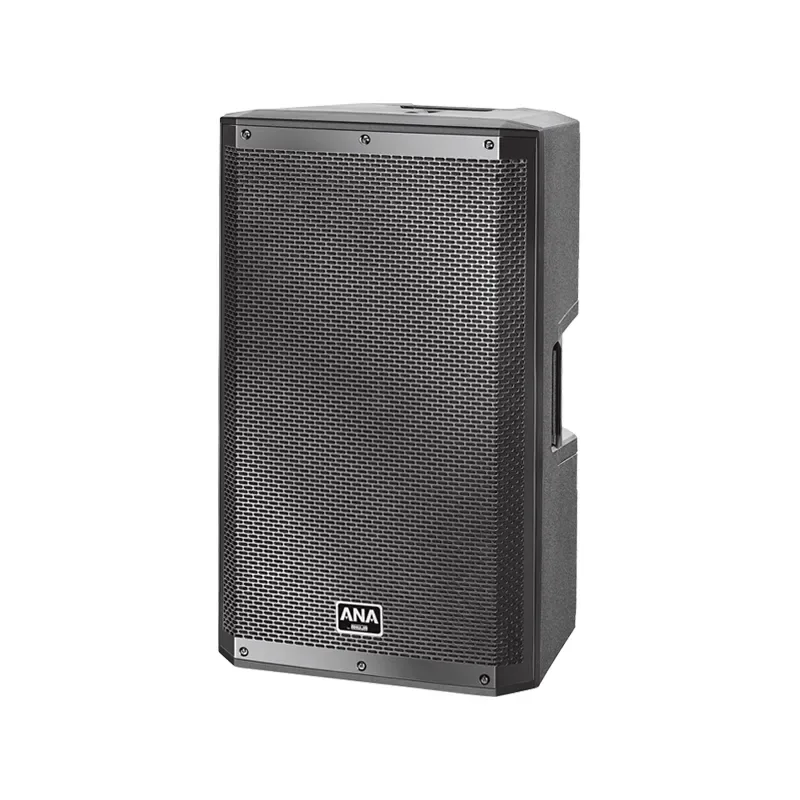

The Ahuja ALIVE 512 is a 500W professional active loudspeaker with a moulded cabinet. Built-in DSP processor with presets; Music, DJ/Club, Live and Speech.
Balanced Line Output through XLR connector.
Features
- ALIVE 512 is an Active Loudspeakers powered by built-in Class D Bi-Amplifiers.
- Built-in DSP processor with presets; Music, DJ/Club, Live and Speech.
- Attractive Plastic moulded cabinet. Product designed for use in a wide variety of PA and Musical Instrument applications.
- ALIVE 512 active loudspeakers has three inputs Input-1 is a balanced XLR combo connector which accepts signal through balanced XLR, stereo TRS or a dual RCA socket. Input-2 is a balanced XLR combo connector which is switchable between MIC & LINE.
- Balanced Line Output through XLR connector.
- Active Tone controls for optimal shaping of desired Low/Mid/High frequency contents.
- Built-in limiter which is tuned optimally for speaker protection.
- Built-in MP3 player with BT facility.
- Built-in TWS facility.
Specifications, Q&A and videos
| Power Output (Bi-Amp) | LF: 450W RMS at 1% THD Class D, HF: 50W RMS at 1% THD Class D |
|---|---|
| Output Regulation | ≤ 0.5dB, no load to full load at 1kHz |
| Input Channels | INPUT-1: LINE: 775mV balanced, INPUT-2: MIC 15mV balanced / LINE 775mV balanced switchable, RCA Input |
| Frequency Response | 50-20,000Hz ±3dB |
| DSP Processor | Built-in Preset for Speech, Music, Club / Dj, Live Sound Applications |
| Signal to Noise Ratio | 60dB |
| Tone Controls | Bass: ±12dB at 100Hz, Mid: ± 12dB @ 1kHz, Treble: ±12dB at 10kHz |
| Output | Line output 775mV through M/XLR |
| Protections | AC: Fuse 1 × 5A (T 5A L) |
| Power Supply | AC: 220-240V 50/60Hz |
| Dimensions | W365 x H615 x D350 mm |
| Weight | 18.10kg |
The ALIVE 512 is an Ahuja professional active loudspeaker in the ALIVE Series rated 500 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
ALIVE 512 is an Active Loudspeakers powered by built-in Class D Bi-Amplifiers; Built-in DSP processor with presets; Music, DJ/Club, Live and Speech; Attractive Plastic moulded cabinet. Product designed for use in a wide variety of PA and Musical Instrument applications; ALIVE 512 active loudspeakers has three inputs Input-1 is a balanced XLR combo connector which accepts signal through balanced XLR, stereo TRS or a dual RCA socket. Input-2 is a balanced XLR combo connector which is switchable between MIC & LINE; Balanced Line Output through XLR connector; Active Tone controls for optimal shaping of desired Low/Mid/High frequency contents.
The ALIVE 512 power output (bi-amp) is LF: 450W RMS at 1% THD Class D, HF: 50W RMS at 1% THD Class D.
The ALIVE 512 output regulation is ≤ 0.5dB, no load to full load at 1kHz.
The ALIVE 512 input channels is INPUT-1: LINE: 775mV balanced, INPUT-2: MIC 15mV balanced / LINE 775mV balanced switchable, RCA Input.
The ALIVE 512 frequency response is 50-20,000Hz ±3dB.
The ALIVE 512 dsp processor is Built-in Preset for Speech, Music, Club / Dj, Live Sound Applications.
