SM Professional

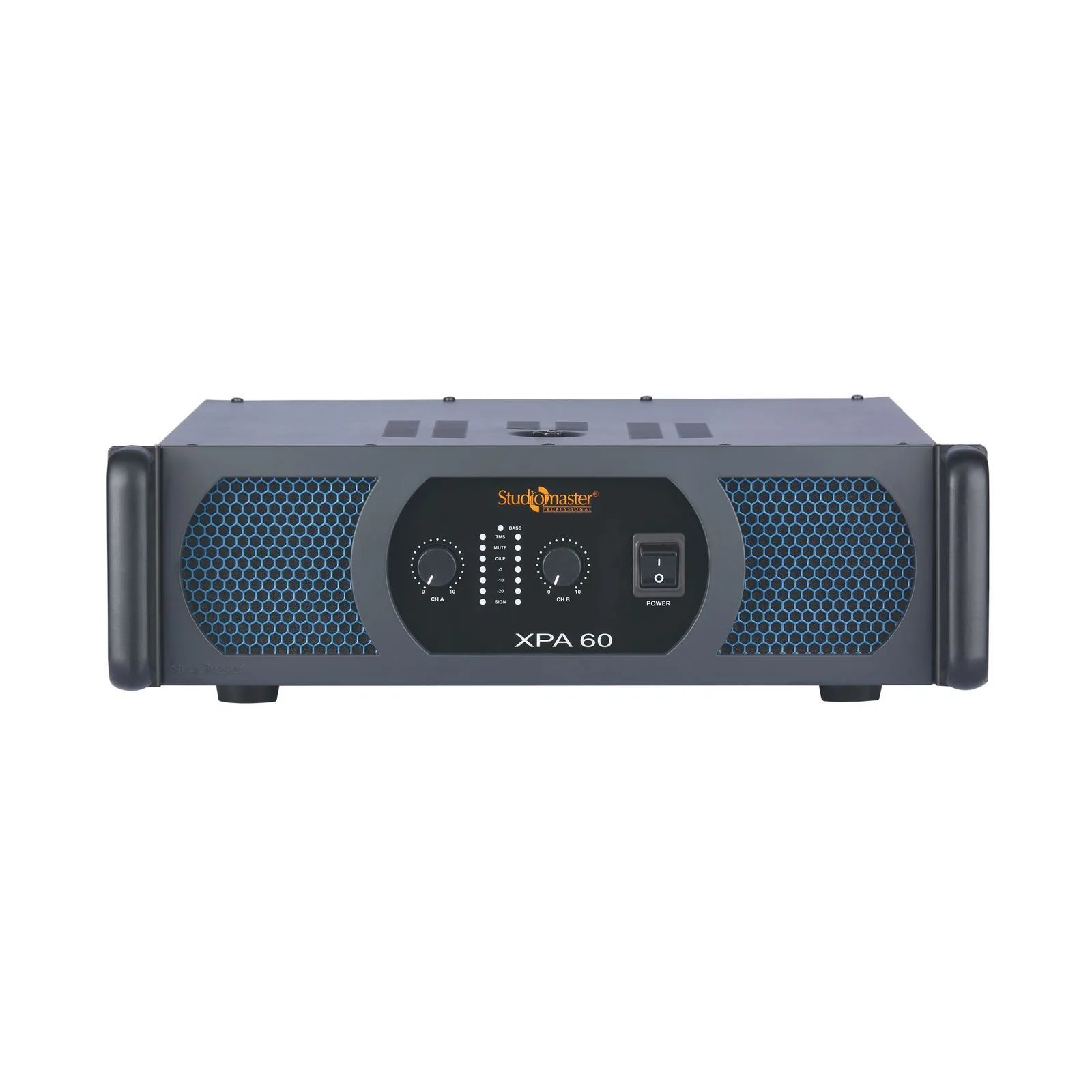

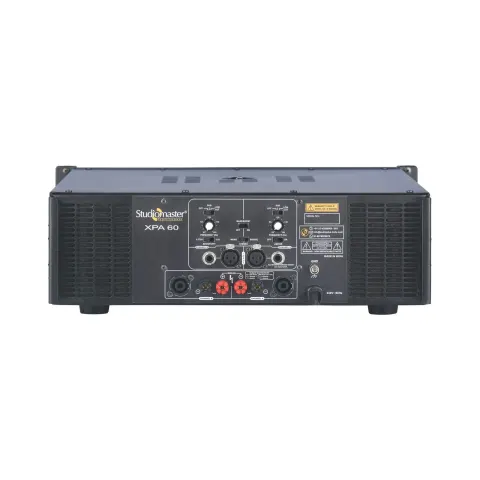

XPA 60
- Power
- 6000 WATTS
- Channels
- 2 Channels
- Series
- XPA Series
- Category
- Power Amplifiers
- Category
- 2 Channel Power Amplifiers
The SM Professional XPA 60 is a high power amplifier with a Thermal Management System (TMS) – our innovative temperature-controlled gain variation technology integrated into the circuitry.??
Heat kills amplifiers and its parts.
Features
- Professional-grade high-power stereo amplifier.
- High-quality balanced XLR and ¼” stereo jack input connectors.
- 3 switchable operational modes: stereo, mono and bridge
- Innovative Thermal Management System (TMS) with temperature-controlled gain variation for optimal thermal protection and uninterrupted sonic performance.
- toroidal transformers with high-endurance cores for greater transient response and low-noise even at 2 Ohms.
- Sensitivity (0.775V or 1.2V) selection switch allows flexibility in connection of input sources.
- Limiter switch provided protects the speakers from damage due to distorted input signals.
- Responsive rotary volume control knobs.
- Low THD and high damping factor for excellent sound quality.
- High-quality glass epoxy, double-sided PTH PCBs and high-grade components ensure reliability even in tough ambient environs.
- Intelligent cooling using low-noise variable speed fans and direct-mounted over-designed heatsinks.
Specifications, Q&A and videos
| Series | XPA Series |
|---|---|
| 2 Ω (True RMS), 20Hz-20kHz, 1% THD | 2 x 3000 W |
| 2 Ω (EIA), 1kHz, 1%THD | 2 x 5600 W |
| 4 Ω (True RMS), 20Hz-20kHz, 1% THD | 2 x 2000 W |
| 4 Ω (EIA), 1kHz, 1%THD | 2 x 3100 W |
| 8 Ω (True RMS), 20Hz-20kHz, 1% THD | 2 x 1300 W |
| 8 Ω (EIA), 1kHz, 1%THD | 2 x 1700 W |
| 4 Ω (True RMS), 20Hz-20kHz,1% THD | 6000 W |
| 8 Ω (True RMS), 20Hz-20kHz,1% THD | 4000 W |
| Damping Factor (8 Ω) | > 400 : 1 (@ 8Ω) |
| Frequency Range | 20Hz-20kHz (± 0.5dB) |
| Protection | Temperature, DC, RFI, short circuit, soft-start, overload |
| Input Connector (Per Channel) | XLR, jack stereo 6.3mm |
| Output Connector (Per Channel) | Speakon and Binding Post |
| Dimensions (W x D x H) mm | 484 x 575 x 133 (3U) |
| Net Weight (Kg) | 37 |
The XPA 60 is an SM Professional high power amplifier in the XPA Series rated 6000 WATTS. The SM Professional XPA 60 is a high power amplifier with a Thermal Management System (TMS) – our innovative temperature-controlled gain variation technology integrated into the. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Professional-grade high-power stereo amplifier; High-quality balanced XLR and ¼” stereo jack input connectors; 3 switchable operational modes: stereo, mono and bridge; Innovative Thermal Management System (TMS) with temperature-controlled gain variation for optimal thermal protection and uninterrupted sonic performance; toroidal transformers with high-endurance cores for greater transient response and low-noise even at 2 Ohms; Sensitivity (0.775V or 1.2V) selection switch allows flexibility in connection of input sources.
The XPA 60 2 ω (true rms), 20hz-20khz, 1% thd is 2 x 3000 W.
The XPA 60 2 ω (eia), 1khz, 1%thd is 2 x 5600 W.
The XPA 60 4 ω (true rms), 20hz-20khz, 1% thd is 2 x 2000 W.
The XPA 60 4 ω (eia), 1khz, 1%thd is 2 x 3100 W.
The XPA 60 8 ω (true rms), 20hz-20khz, 1% thd is 2 x 1300 W.
