1 / 2
SM Professional
XPA 30
- Power
- 1000 WATTS
- Channels
- 2 Channels
- Series
- XPA Series
- Category
- Power Amplifiers
- Category
- 2 Channel Power Amplifiers

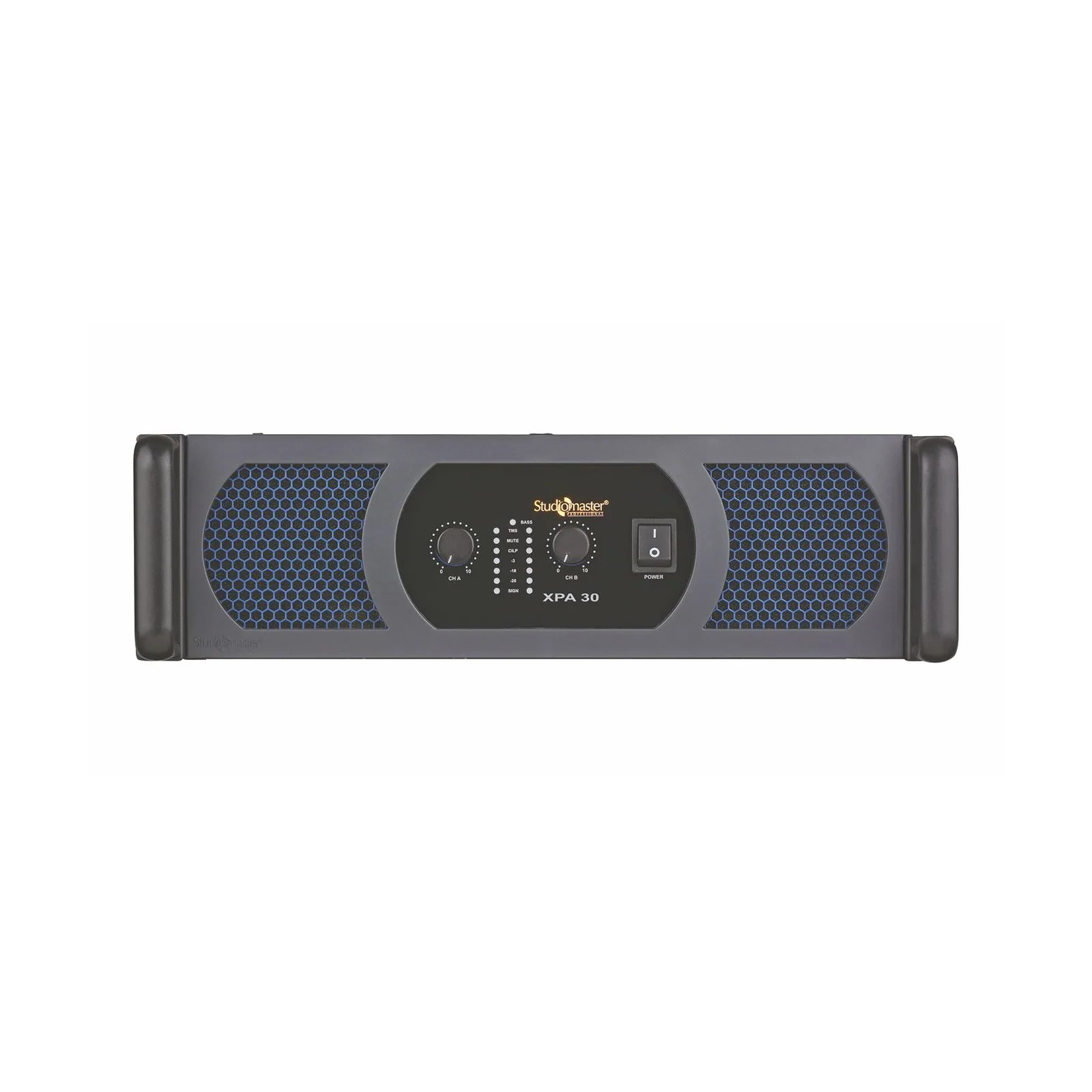

The SM Professional XPA 30 is a high power amplifier with a Thermal Management System (TMS) – our innovative temperature-controlled gain variation technology integrated into the circuitry.
Features
- Professional-grade high-power stereo amplifier.
- Features Thermal Management System (TMS) – innovative temperature-controlled gain variation technology.
- Ultra-functional EQ Processing, Low Cut, and Subwoofer with crossover selection options.
- High-quality balanced XLR and ¼” stereo jack input connectors.
- 3 switchable operational modes: stereo, mono, and bridge.
- High-current toroidal transformers with high-endurance cores for greater transient response and low-noise even at 2Ω.
- Sensitivity (0.775V or 1.2V) selection switch allows flexibility in connection of input sources.
- Limiter switch provided to protect speakers from damage due to distorted input signals.
- Responsive rotary volume control knobs.
- Low THD and high damping factor for excellent sound quality.
- High-quality glass epoxy, double-sided PTH PCBs, and high-grade components ensure reliability even in tough ambient environs.
- Intelligent cooling using low-noise variable speed fans and direct-mounted over-designed heatsinks.
Specifications, Q&A and videos
| Series | XPA Series |
|---|---|
| Power Output | 1000W-1500W |
| 2 Ω (True RMS),20Hz-20kHz,1% THD | 2 x 1500 W |
| 2 Ω (EIA), 1kHz , 1%THD | 2 x 2200 W |
| 4 Ω (True RMS), 20Hz-20kHz, 1% THD | 2 x 1100 W |
| 4 Ω (EIA), 1kHz, 1%THD | 2 x 1680 W |
| 8 Ω (True RMS), 20Hz-20kHz, 1% THD | 2 x 700 W |
| 8 Ω (EIA), 1kHz, 1% THD | 2 x 900 W |
| 4Ω (True RMS), 20Hz - 20kHz, 1% THD | 3000 W |
| 8Ω (True RMS), 20Hz- 20kHz, 1% THD | 2200 W |
| Damping factor (8 Ω) | >400:1 |
| Frequency Range | 20Hz-20kHz (± 0.5dB) |
| Protection | Temperature, DC, RFI, short circuit, soft-start, overload |
| Input Connector (Per Channel) | XLR, 1/4” TRS Jack |
| Output Connector (Per Channel) | Speakon and Binding Post |
| Dimension (W x D X H) mm | 482 x 515 x 133 (3U) |
| Net Weight (Kg) | 30 |
The XPA 30 is an SM Professional high power amplifier in the XPA Series rated 1000 WATTS. The SM Professional XPA 30 is a high power amplifier with a Thermal Management System (TMS) – our innovative temperature-controlled gain variation technology integrated into the. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Professional-grade high-power stereo amplifier; Features Thermal Management System (TMS) – innovative temperature-controlled gain variation technology; Ultra-functional EQ Processing, Low Cut, and Subwoofer with crossover selection options; High-quality balanced XLR and ¼” stereo jack input connectors; 3 switchable operational modes: stereo, mono, and bridge; High-current toroidal transformers with high-endurance cores for greater transient response and low-noise even at 2Ω.
The XPA 30 2 ω (true rms),20hz-20khz,1% thd is 2 x 1500 W.
The XPA 30 2 ω (eia), 1khz , 1%thd is 2 x 2200 W.
The XPA 30 4 ω (true rms), 20hz-20khz, 1% thd is 2 x 1100 W.
The XPA 30 4 ω (eia), 1khz, 1%thd is 2 x 1680 W.
The XPA 30 8 ω (true rms), 20hz-20khz, 1% thd is 2 x 700 W.
