Ahuja
XPA-1520DP
- Power
- 175 WATTS
- Category
- Portable PA
- Category
- Portable Trolley Speakers

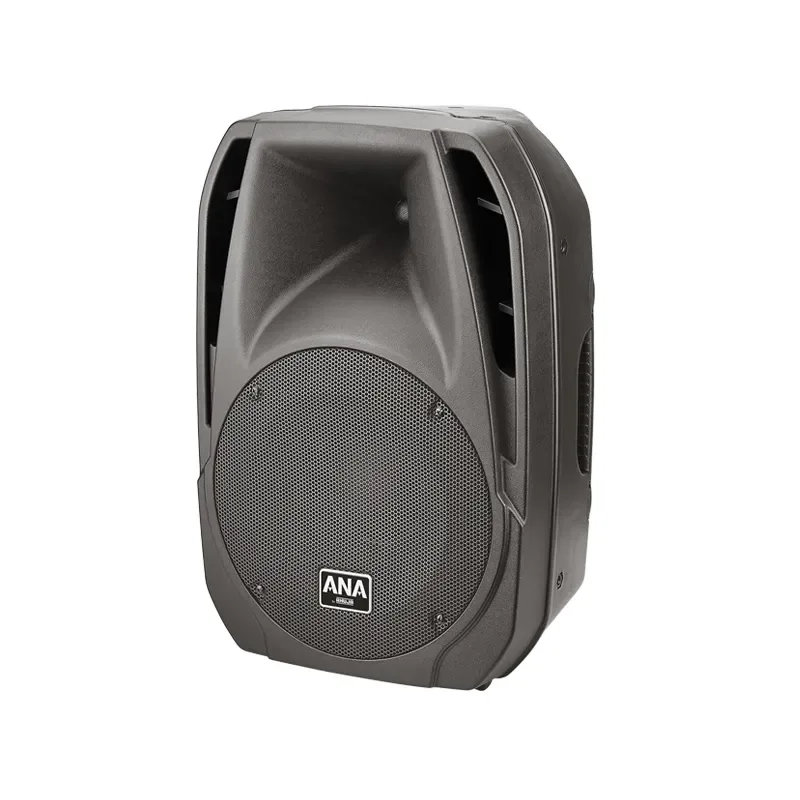

The Ahuja XPA-1520DP is a 175W Class-D bi-amp PA active speaker with 10" LF woofer, dynamic horn, and HF tweeter. Built-in MP3 Player with Bluetooth, Recorder and remote control.
Built-in Digital Echo Effects.
Features
- Built-in Class-D Bi-Amplifier for LF and HF drivers.
- Two Wired Mic inputs, Two Wireless Mics & One Aux input.
- Built-in 25.4 cm (10") LF Woofer ø 5.0 cm (2.0") voice coil + Dynamic Horn ø 2.5 cm (1.0") voice coil & HF Tweeter.
- Mic-1 and Wirelesss Mics have selectable priority over all other inputs.
- Built-in MP3 Player with Bluetooth, Recorder and remote control. Built-in Digital Echo Effects.
- Active Bass & Treble controls for desired tonal shaping.
- LED indications for ON, FAULT, CLIP level.
- Built-in TWS & Sing Along feature.
Specifications, Q&A and videos
| Power Output (Bi-amp) | LF: 125W RMS at 1% THD, HF: 50W RMS at 1% THD |
|---|---|
| Output Regulation | ≤ 0.5dB, no load to full load at 1kHz |
| Input Channels | 2 x Mic 5mV/4.7kΩ, 1 x Aux 200 mV/47kΩ, 2 x Wireless MIC, 1 x Line Input 1.2V |
| Frequency Response | 50-20,000Hz ±3dB |
| Signal to Noise Ratio | 60dB |
| Tone Controls | Bass: ±5dB at 100Hz, Treble: ±5dB at 10kHz |
| Line Output | 775mV |
| Digital Player | MP3 player with USB, SD, MMC Card Reader, Recording Function and Bluetooth. |
| Protections | AC: Fuse 1x3.15A (T 3.15A L) |
| Power Supply | AC: 220-240V 50/60Hz |
| AC Power Consumption | 200VA |
| Dimensions | W325 x H485 x D255 mm |
| Weight | 11.30kg Approx. |
The XPA-1520DP is an Ahuja PA active speaker. The Ahuja XPA-1520DP is a 175W Class-D bi-amp PA active speaker with 10" LF woofer, dynamic horn, and HF tweeter. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Built-in Class-D Bi-Amplifier for LF and HF drivers; Two Wired Mic inputs, Two Wireless Mics & One Aux input; Built-in 25.4 cm (10") LF Woofer ø 5.0 cm (2.0") voice coil + Dynamic Horn ø 2.5 cm (1.0") voice coil & HF Tweeter; Mic-1 and Wirelesss Mics have selectable priority over all other inputs; Built-in MP3 Player with Bluetooth, Recorder and remote control. Built-in Digital Echo Effects; Active Bass & Treble controls for desired tonal shaping.
The XPA-1520DP power output (bi-amp) is LF: 125W RMS at 1% THD, HF: 50W RMS at 1% THD.
The XPA-1520DP output regulation is ≤ 0.5dB, no load to full load at 1kHz.
The XPA-1520DP input channels is 2 x Mic 5mV/4.7kΩ, 1 x Aux 200 mV/47kΩ, 2 x Wireless MIC, 1 x Line Input 1.2V.
The XPA-1520DP frequency response is 50-20,000Hz ±3dB.
The XPA-1520DP signal to noise ratio is 60dB.
