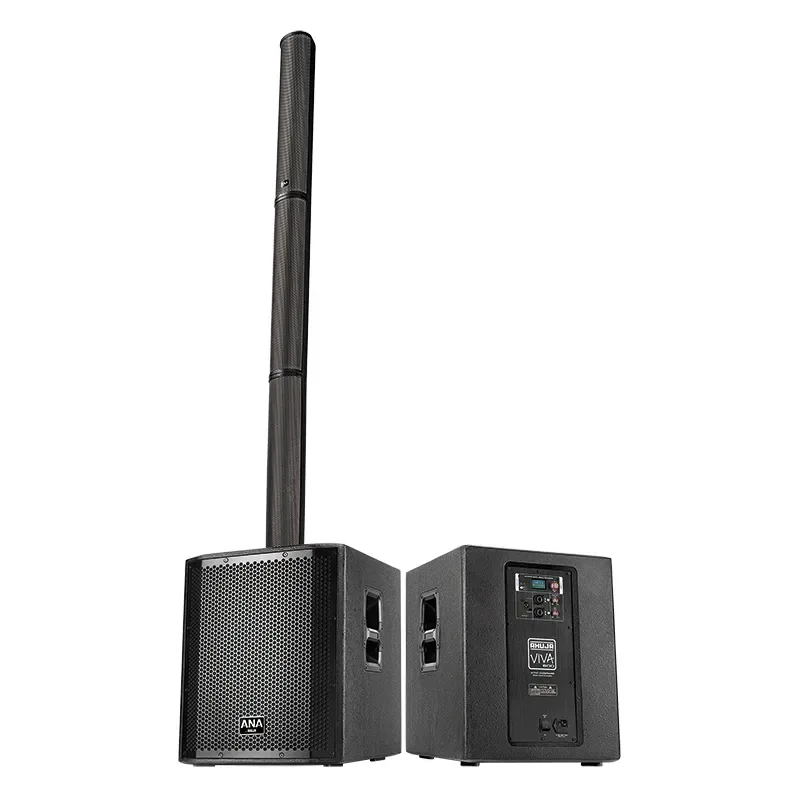

The Ahuja VIVA-600 is a 525W Class-D 2-way array active loudspeaker. It uses an integrated satellite 3x cylindrical speaker columns, directly fittable on subwoofer cabinet without hassle of speaker wiring. Equalizer setting of NORMAL mode has provision to cut and boost gain for 5 frequencies 80Hz, 330Hz, 1.
2kHz, 3. 3kHz and 12kHz.
| Power Output | LF: 400W RMS at < 1% THD, HF: 125W RMS at < 1% THD |
|---|---|
| Sensitivity | LF: Line: 450mV, Mic 10mV, HF: 450mV, Mic 10mV |
| Output | XLR Mixed Output |
| Equalizer | NORMAL, CLASSIC, JAZZ, POP |
| Limiter | LF: 6dB, HF: 18dB |
| Setting for Normal EQ. | EQ.-1 80Hz : -8dB to +3dB, EQ.-2 330Hz : -8dB to +5dB, EQ.-3 1.2kHz : -8dB to +5dB, EQ.-4 3.3kHz : -8dB to +5dB, EQ.-5 12kHz : -8dB to +5dB |
| Speaker | LF: 304.8mm (12”) Subwoofer, HF: 8 x 67.2mm (3”) Speaker |
| Frequency Response | LF: 30Hz-160Hz, HF: 160Hz-20kHz |
| MP3 Playback | Via Bluetooth |
| Signal to Noise Ratio | 80dB |
| Power Supply | AC : 220-240V 50/60Hz |
| Protection | AC: Fuse 3.15Amp. |
| AC Power Consumption | 650 VA |
| Dimensions | Subwoofer: W385 × H485 × D520 mm, Satellite (Top): W85 × H495 × D112 mm, Satellite (Mid. & Bottom): W85 × H515 × D112 mm |
| WEIGHT | Subwoofer: 20.80kg, Satellite: 1.30+1.30+1.10kg |
The VIVA-600 is an Ahuja 2-way array active loudspeaker rated 525 WATTS. Available from Mansukhlal Sales Corp, an authorized dealer.
High quality class D amplifier with digital processor; Equalizer setting of NORMAL mode has provision to cut & boost gain for 5 frequencies 80Hz, 330Hz, 1.2kHz, 3.3kHz & 12kHz; Rear panel control consists of LCD digital display to view & set the features in use; Built-in Bluetooth for playing music; 2 x combo input connectors (TRS/XLR) for Mic or Line input; Built-in fixed limiter: 6dB for LF & 18dB for HF provided for protection.
The VIVA-600 sensitivity is LF: Line: 450mV, Mic 10mV, HF: 450mV, Mic 10mV.
The VIVA-600 output is XLR Mixed Output.
The VIVA-600 equalizer is NORMAL, CLASSIC, JAZZ, POP.
The VIVA-600 limiter is LF: 6dB, HF: 18dB.
The VIVA-600 setting for normal eq. is EQ.-1 80Hz : -8dB to +3dB, EQ.-2 330Hz : -8dB to +5dB, EQ.-3 1.2kHz : -8dB to +5dB, EQ.-4 3.3kHz : -8dB to +5dB, EQ.-5 12kHz : -8dB to +5dB.
