Ahuja
XDA-7002
- Power
- 2400+2400 WATTS
- Channels
- 2 Channels
- Series
- XDA Series
- Category
- Power Amplifiers
- Category
- 2 Channel Power Amplifiers

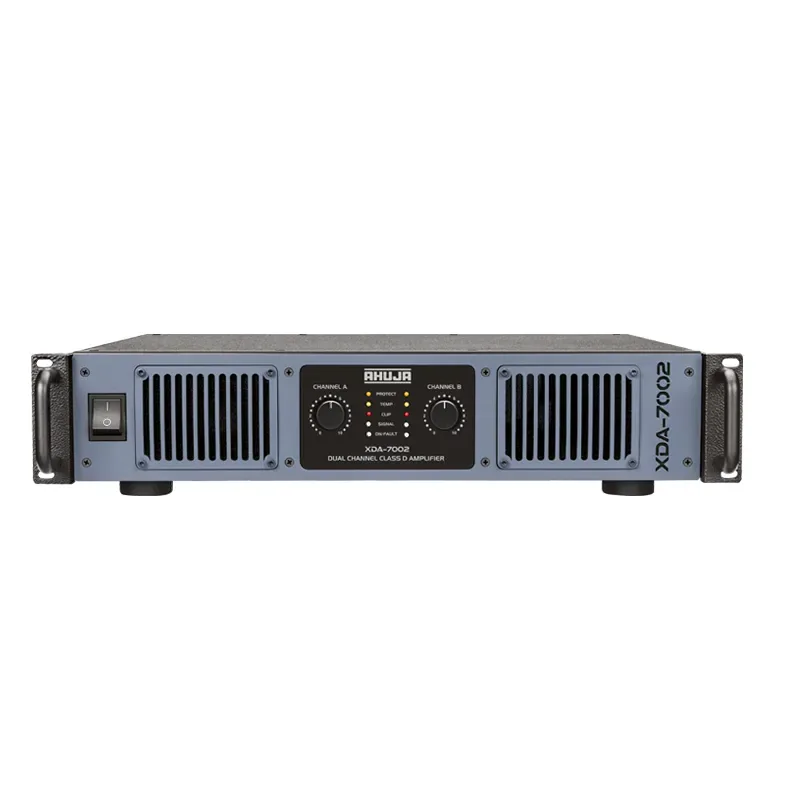

The Ahuja XDA-7002 is a 2400W Class-D dual channel class d power amplifier with a toroidal transformer power supply.
Features
- Dual Channel Class D Power Amplifier.
- 2400 + 2400 Watts rated output.
- 80Hz/120Hz Low Pass Filter.
- Built-in Limiter ON/OFF circuit.
- Toroidal Transformer power supply.
- Two selectable input sensitivities.
- Built-in Amplifier Protection system: DC offset, HF, Short circuit, Thermal, Overload, Over voltage & Clip Monitoring.
- Compact 2U Size.
- BIS approved.
Specifications, Q&A and videos
| Continuous Rated Power Stereo/Mono | 8Ω : 1350W + 1350W RMS, 4Ω : 2400W + 2400W RMS |
|---|---|
| THD + N | < 0.1% |
| Frequency Response (-1dB) | 20-20,000Hz |
| Low Pass Filter | 80/120Hz @ 24dB per octave |
| Power Bandwidth (0.5% THD) | 20-20,000Hz |
| Input Sensitivity | 0dBu (775mV) & 4dBu (1.23V) (Selectable) |
| Input Impedance | 10k Unbalanced, 20k Balanced |
| Signal To Noise Ratio | > 100dB |
| Channel Separation | > 65dB at 1kHz |
| Damping Factor (8W ) | >1000 |
| Slew Rate | 20V/µs |
| Protections | Temperature, DC, RFI, Short Circuit, Overload, Overvoltage, Built-in Limiter (ON/OFF); AC: Circuit Protector 16A; ± DC: Fuse 2×16A (T 16A L) |
| Input Connectors | 2×XLR, Stereo Phone Jack 6.3mm |
| Output Connectors | Speakon 4-Way and heavy duty Binding Post for each channel |
| Cooling | 2 × Variable Speed DC Fan with Temperature Sensing |
| Front Panel Controls | 2×41 Step Level Attenuators |
| Indicators | Power ON/FAULT, Signal, Clip, Temperature, Protect (Ch. A & B) |
| Power Consumption (Rated) | 5500VA @ 220-240V ~ 50/60Hz |
| Dimensions | W482 × H104 × D438mm |
| Weight | 22.10kg |
The XDA-7002 is an Ahuja dual channel class d power amplifier in the XDA Series. The Ahuja XDA-7002 is a 2400W Class-D dual channel class d power amplifier with a toroidal transformer power supply. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Dual Channel Class D Power Amplifier; 2400 + 2400 Watts rated output; 80Hz/120Hz Low Pass Filter; Built-in Limiter ON/OFF circuit; Toroidal Transformer power supply; Two selectable input sensitivities.
The XDA-7002 continuous rated power stereo/mono is 8Ω : 1350W + 1350W RMS, 4Ω : 2400W + 2400W RMS.
The XDA-7002 thd + n is < 0.1%.
The XDA-7002 frequency response (-1db) is 20-20,000Hz.
The XDA-7002 low pass filter is 80/120Hz @ 24dB per octave.
The XDA-7002 power bandwidth (0.5% thd) is 20-20,000Hz.
