SM Professional
X 55
- Channels
- 5 Channels
- Series
- X Series DJ
- Category
- DJ Products
- Category
- DJ Mixers

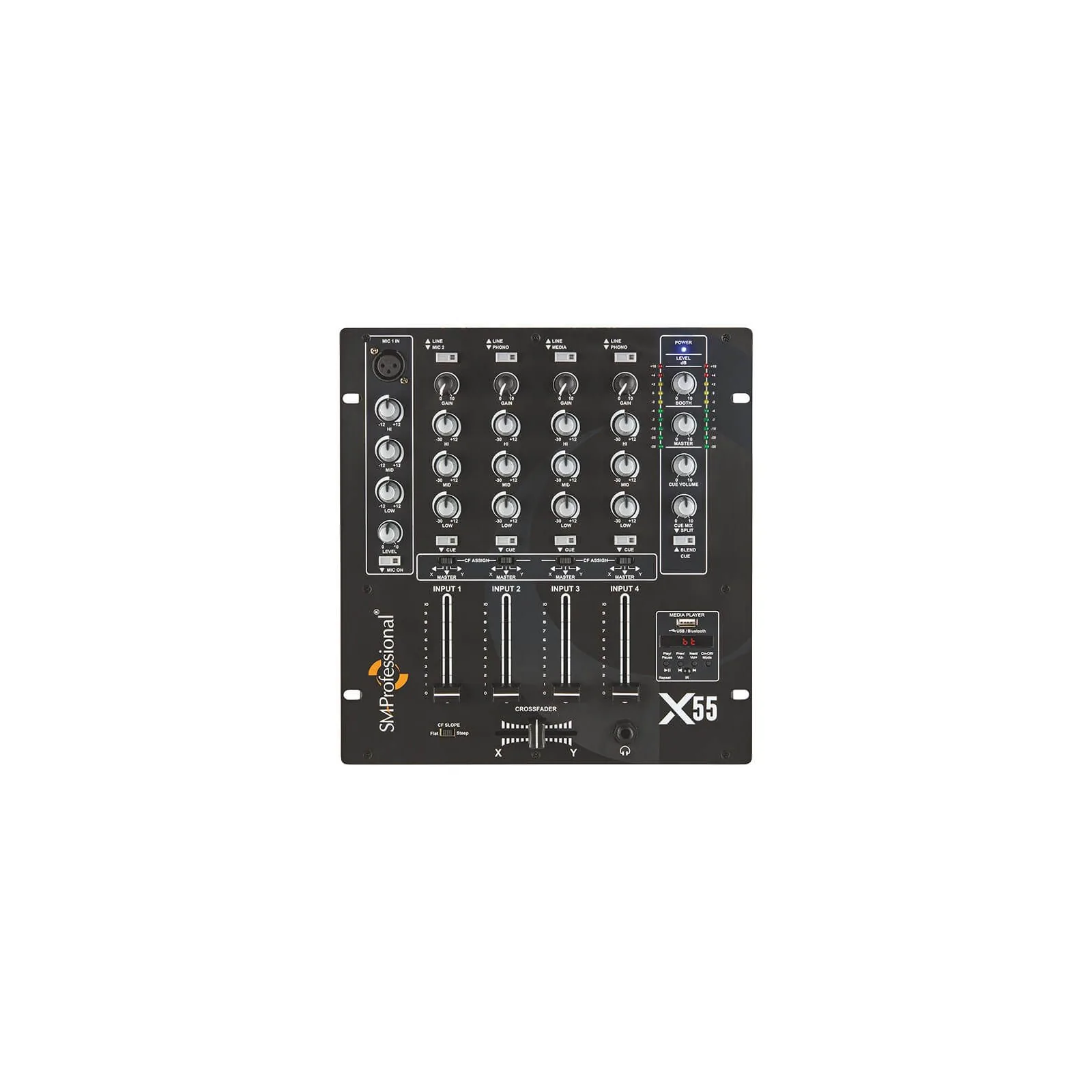

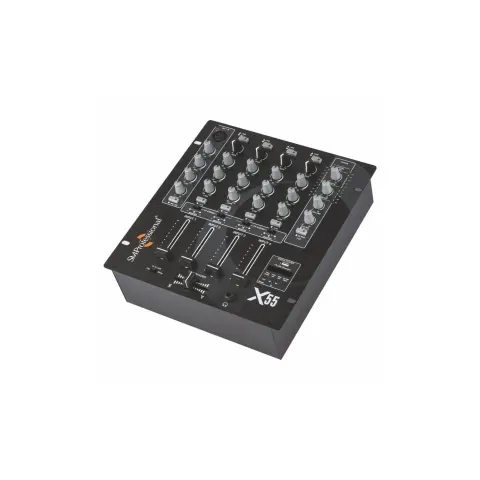

The X 55 is a 5 channel DJ mixer with a built-in USB MP3 media player & Bluetooth, 3-band kill EQ (-30 dB) and multiple inputs and outputs to let you mix in style.
Features
- 3-band kill EQ (-30 dB) and gain control per channel.
- Balanced XLR mic input with gain and 3-band EQ.
- Built-in USB MP3 media player with wireless Bluetooth connectivity.
- Crossfader flat / steep curve switch.
- Headphone cue Mix with blend switch.

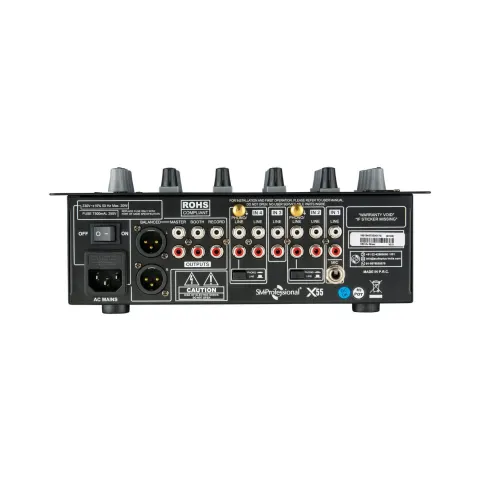

- Separate master, record and booth RCA output.
- ¼” headphone output with level control.
- Balanced XLR master output.
- Ultra smooth and sturdy faders.
Specifications, Q&A and videos
| Series | X Series |
|---|---|
| Gain (Mic / Phono / Line) | 40dB / 40dB / 0dB |
| Input Level Sensitivity (Mic / Phono / Line) | -40dBu / -40dBu / 0dBu |
| Main Output level (Nominal / Max) | 0dBu (0.775V) /+18dBu (6.15V RMS) |
| Booth Output Levels (Nominal / Max) | 0dBu(0.775V) Nominal / +18dBu(6.15V RMS) Max |
| Frequency Response | 20Hz-22KHz (+/-3dB) |
| Total Harmonic Distortion | 0.07% @ 1KHz 0.1% @ 1KHz |
| Equalisation Line I/P (Treble/Mid/Bass) | +10/-12dB @ 10kHz |
| Signal to Noise Ratio (Mic/Line) | 65dB / 82dB |
| Dimensions (W x D x H) mm | 277 x 300 x 105 |
| Net Weight (Kg) | 3 |
The X 55 is an SM Professional 5 channel DJ mixer in the X Series DJ. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
3-band kill EQ (-30 dB) and gain control per channel; Balanced XLR mic input with gain and 3-band EQ; Built-in USB MP3 media player with wireless Bluetooth connectivity; Crossfader flat / steep curve switch; Headphone cue Mix with blend switch; Separate master, record and booth RCA output.
The X 55 gain (mic / phono / line) is 40dB / 40dB / 0dB.
The X 55 input level sensitivity (mic / phono / line) is -40dBu / -40dBu / 0dBu.
The X 55 main output level (nominal / max) is 0dBu (0.775V) /+18dBu (6.15V RMS).
The X 55 booth output levels (nominal / max) is 0dBu(0.775V) Nominal / +18dBu(6.15V RMS) Max.
The X 55 frequency response is 20Hz-22KHz (+/-3dB).
