SM Professional
DJX 825
- Channels
- 4 Channels
- Series
- DJX Series
- Category
- DJ Products
- Category
- DJ Mixers

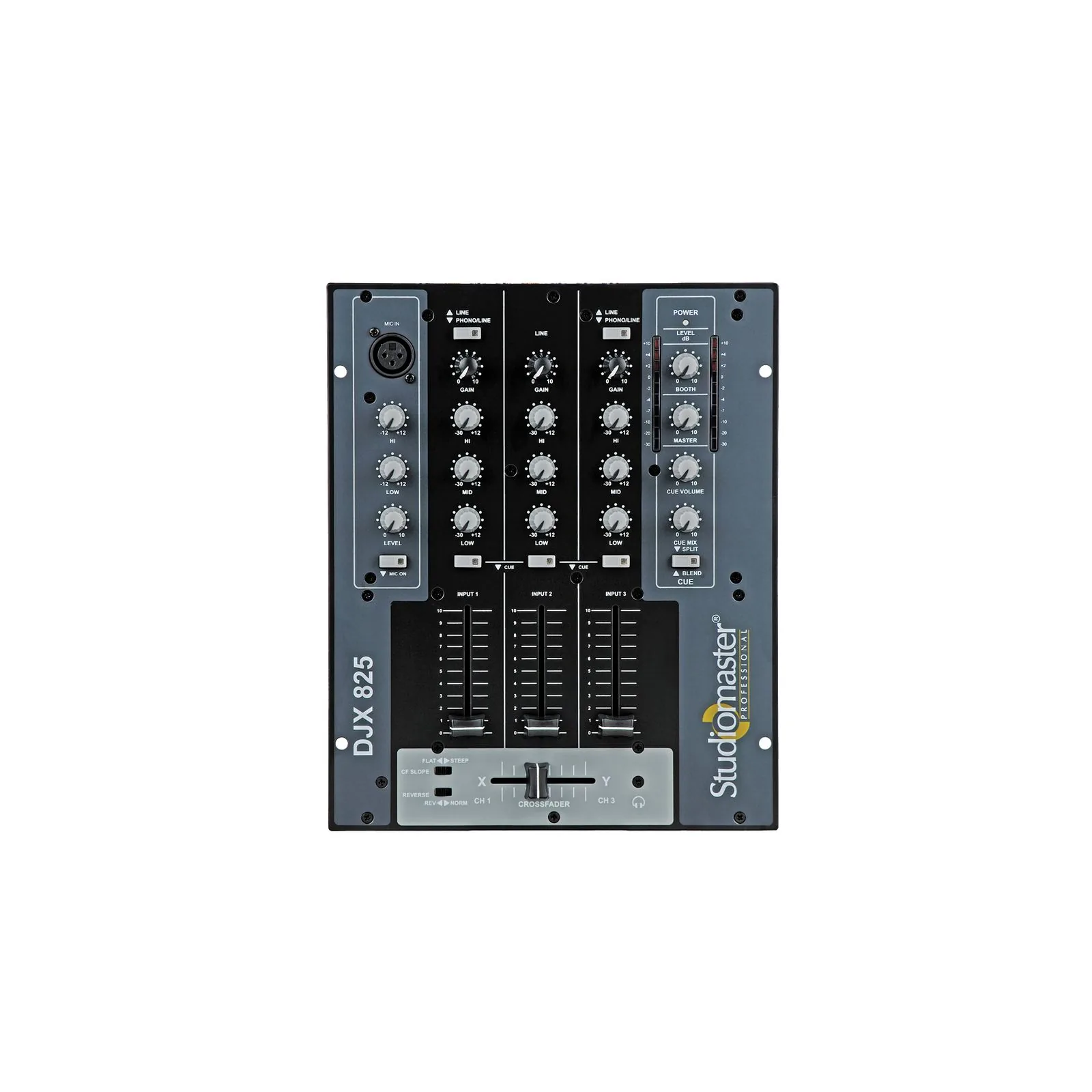

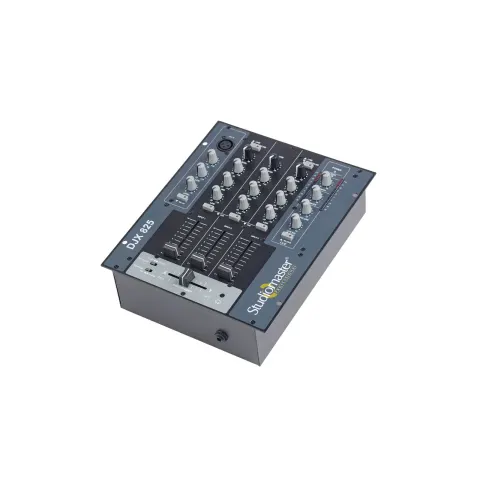

The DJX 825 is a high quality professional 4 channel DJ mixer from SM Professional.
Features
- 3-Band Kill EQ (-30 dB) & Gain control per channel.
- Balanced XLR MIC input with dedicated Gain & 2 Band EQ.
- Headphone Cue Mix with cue blend switch.
- Cross fader reverse / normal / Flat / Step curve switch.
- Separate Master, Record & Booth RCA output.
- Separate RCA output for master, Record & Booth
- Balanced XLR Master Output.
- 6.35 mm (¼“) Headphone output with level control.
Specifications, Q&A and videos
| Gain (Mic/Line) | 50dB/0dB |
|---|---|
| Input Level Sensitivity (Mic/Line) | -50dB/0dB |
| Main Output levels (Nominal/Max) | 0dBu(0.775V) / +18dBu(6.15V RMS) |
| Booth Output levels (Nominal/Max) | 0dBu(0.775V) Nominal/ +18dBu(6.15V RMS) Max |
| Frequency Response | 20Hz-22KHz (+/-3dB) |
| Total Harmonic Distortion | 0.07% @ 1KHz 0.1% @ 1KHz |
| Equalisation Line I/P (Treble/Mid/Bass) | +10/-12 dB @ 10KHz , +12/-24dB @ 1.3KHz , +12/-29dB @ 50Hz |
| Signal to Noise Ratio (Mic/Line) | 60dB/82dB |
| Power Supply | 230V AC/50Hz |
| Dimensions (WxDxH in mm) | 242 x 301 x 106 |
| Net Weight (Kgs.) | 3.3 |
The DJX 825 is an SM Professional 4 channel DJ mixer from Studiomaster Professional in the DJX Series. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
3-Band Kill EQ (-30 dB) & Gain control per channel; Balanced XLR MIC input with dedicated Gain & 2 Band EQ; Headphone Cue Mix with cue blend switch; Cross fader reverse / normal / Flat / Step curve switch; Separate Master, Record & Booth RCA output; Separate RCA output for master, Record & Booth.
The DJX 825 gain (mic/line) is 50dB/0dB.
The DJX 825 input level sensitivity (mic/line) is -50dB/0dB.
The DJX 825 main output levels (nominal/max) is 0dBu(0.775V) / +18dBu(6.15V RMS).
The DJX 825 booth output levels (nominal/max) is 0dBu(0.775V) Nominal/ +18dBu(6.15V RMS) Max.
The DJX 825 frequency response is 20Hz-22KHz (+/-3dB).
