Ahuja
VX-300
- Power
- 300 WATTS
- Series
- VX Series
- Category
- Speakers
- Category
- Passive Speakers

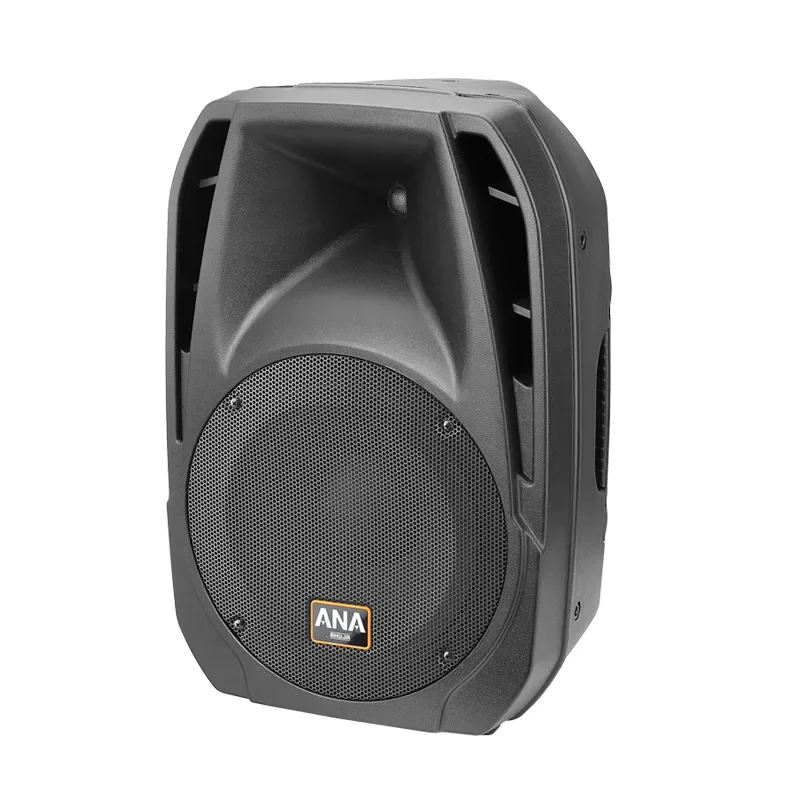

The Ahuja VX-300 is a 300W moulded cabinet speaker system with 12" LF woofer and dynamic horn. It has a rugged and portable bass reflex cabinet moulded with a special polypropylene plastic material.
It has special cabinet profile allows functional flexibility in various professional audio applications such as stage monitors, live sound reinforcement and installed sound systems.
Features
- Ahuja introduces a compact & exquisite 300W, 2-Way PA speaker system model VX-300. It comprises of a high performance 30.48cm (12") LF speaker and a reliable HF driver. Ideal for use in a wide variety of speech & music applications.
- Rugged & portable bass reflex cabinet moulded with a special polypropylene plastic material.
- Built with a 30.48cm (12") 300W reliable & efficient LF speaker.
- High performance HF driver made with a 4.44cm (1.75") voice coil & titanium diaphragm.
- Equipped with a professional two way passive crossover network using low resistance inductors & high quality metallised polyester capacitors.
- Special cabinet profile allows functional flexibility in various professional audio applications such as stage monitors, live sound reinforcement and installed sound systems.
- A pole socket is provided at the bottom for easy stand mounting as well as wall mounting.
- Three integrated M8 flying points on top side and right side of the cabinet enable vertical and horizontal suspension applications.
Specifications, Q&A and videos
| Power Rating | 300W RMS |
|---|---|
| Configuration | Two Way |
| Frequency Response | 60-18,000Hz |
| Low Frequency Speaker | 1 x 304.8mm (12"), Ø63.5mm (2.5") CCAW Voice Coil |
| High Frequency Unit | Dynamic Horn, Ø44.45mm (1.75") Voice Coil |
| SPL at (1W/1m) | 97dB |
| MAX. Rated SPL | 122dB |
| Nominal Impedance | 8Ω |
| Port | Free Flow Flared |
| Input Connectors | Speakon + Push Terminals |
| Dimensions | W385 × H585 × D305 mm |
| Weight | 16.00kg |
The VX-300 is an Ahuja moulded cabinet speaker system in the VX Series. The Ahuja VX-300 is a 300W moulded cabinet speaker system with 12" LF woofer and dynamic horn. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Ahuja introduces a compact & exquisite 300W, 2-Way PA speaker system model VX-300. It comprises of a high performance 30.48cm (12") LF speaker and a reliable HF driver. Ideal for use in a wide variety of speech & music applications; Rugged & portable bass reflex cabinet moulded with a special polypropylene plastic material; Built with a 30.48cm (12") 300W reliable & efficient LF speaker; High performance HF driver made with a 4.44cm (1.75") voice coil & titanium diaphragm; Equipped with a professional two way passive crossover network using low resistance inductors & high quality metallised polyester capacitors; Special cabinet profile allows functional flexibility in various professional audio applications such as stage monitors, live sound reinforcement and installed sound systems.
The VX-300 configuration is Two Way.
The VX-300 frequency response is 60-18,000Hz.
The VX-300 low frequency speaker is 1 x 304.8mm (12"), Ø63.5mm (2.5") CCAW Voice Coil.
The VX-300 high frequency unit is Dynamic Horn, Ø44.45mm (1.75") Voice Coil.
The VX-300 spl at (1w/1m) is 97dB.
