Ahuja
UTR-40
- Power
- 30 WATTS
- Series
- Vehicle Amplifiers
- Category
- Mixer Amplifiers
- Category
- Vehicle Amplifiers

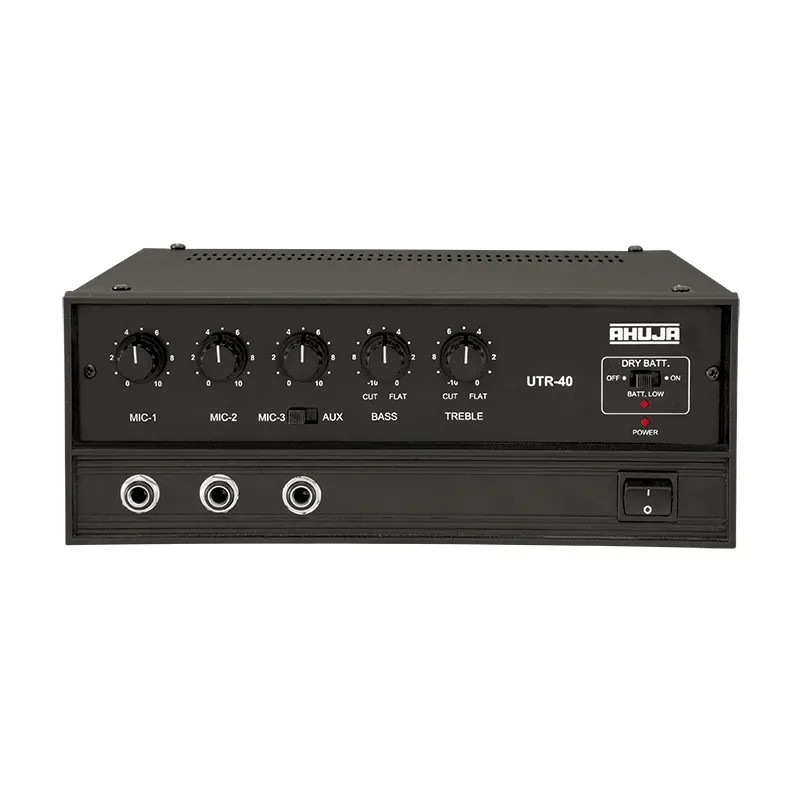

The Ahuja UTR-40 is a 30W medium wattage PA mixer amplifier. Extremely portable and ideal for use in remote places without electricity.
Low current consumption for long battery life.
Features
- 3 Mic & 1 Aux Input.
- Cut type Bass & Treble controls.
- 3 Power source amplifier: AC mains, 12V DC (Car Battery) and 12V DC Dry Cell (Two Banks of 8×1.5V Um-1 cell each).
- Extremely portable and ideal for use in remote places without electricity.
- Low current consumption for long battery life.
Specifications, Q&A and videos
| Power Output | 45W Max., 30W RMS at 10% THD |
|---|---|
| Input Channels | 3 × Mic 0.65mV/4.7kΩ, 1 × Aux 100mV/470kΩ |
| Frequency Response | 100-15,000Hz ±3dB |
| Signal to Noise Ratio | 60dB |
| Tone Controls | Bass: -10dB at 100Hz, Treble: -10dB at 10kHz |
| Speaker Outputs | 4Ω, 8Ω, 16Ω & 100V |
| Power Supply | AC: 220-240V 50/60Hz, DC: 12V (Car Battery), DC: 12V (Dry Cells 8 × UM-1) Two Banks |
| Power Consumption | AC: 90VA DC: 1.8A |
| Dimensions | W280 × H115 × D270 mm |
| Weight | 5.3kg |
The UTR-40 is an Ahuja medium wattage PA mixer amplifier in the Vehicle Amplifiers rated 30 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
3 Mic & 1 Aux Input; Cut type Bass & Treble controls; 3 Power source amplifier: AC mains, 12V DC (Car Battery) and 12V DC Dry Cell (Two Banks of 8×1.5V Um-1 cell each); Extremely portable and ideal for use in remote places without electricity; Low current consumption for long battery life.
The UTR-40 input channels is 3 × Mic 0.65mV/4.7kΩ, 1 × Aux 100mV/470kΩ.
The UTR-40 frequency response is 100-15,000Hz ±3dB.
The UTR-40 signal to noise ratio is 60dB.
The UTR-40 tone controls is Bass: -10dB at 100Hz, Treble: -10dB at 10kHz.
The UTR-40 speaker outputs is 4Ω, 8Ω, 16Ω & 100V.
