Ahuja
UTR-30E
- Power
- 25 WATTS
- Series
- Vehicle Amplifiers
- Category
- Mixer Amplifiers
- Category
- Vehicle Amplifiers

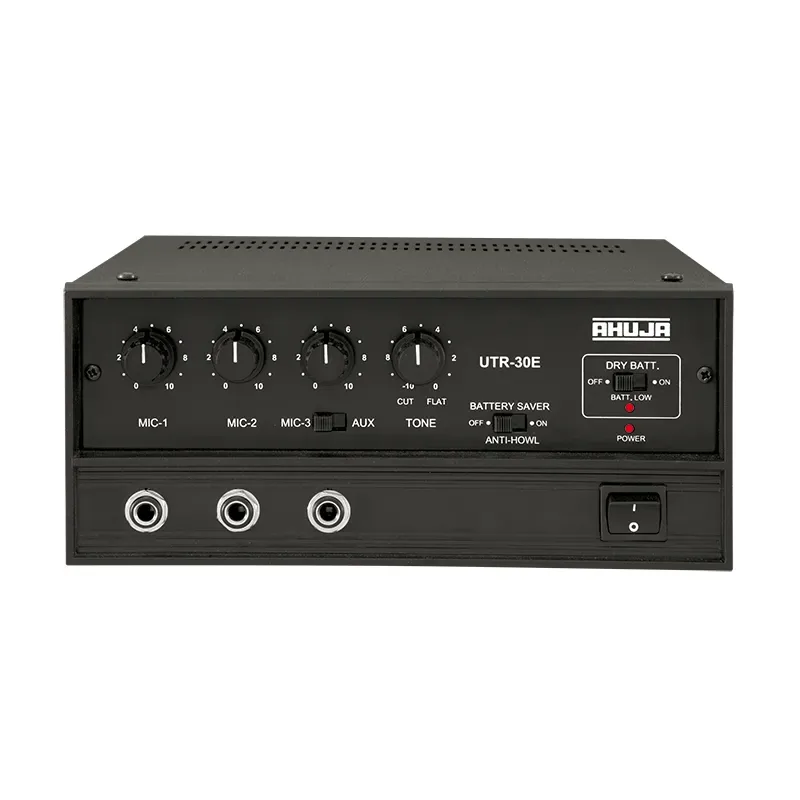

The Ahuja UTR-30E is a 25W low wattage PA mixer amplifier. Extremely portable and ideal for use in remote places without electricity.
It has a battery saver switch for long battery life and red led for low battery indication.
Features
- 3 Mic & 1 Aux Input.
- Cut type Tone control.
- 3 POWER SOURCE Amplifier: AC mains, 12V DC (Car Battery) and 12V DC Dry Cell (Two Banks of 8×1.5V UM-1 cell each).
- Extremely portable and ideal for use in remote places without electricity.
- Battery saver switch for long battery life and red LED for low battery indication.
Specifications, Q&A and videos
| Power Output | 35W RMS Max., 25W RMS at 10% THD, |
|---|---|
| Input Channels | 3 × Mic 1.0mV/10kΩ, 1 × Aux 50mV/250kΩ |
| Frequency Response | 150-10,000Hz ±3dB |
| Signal to Noise Ratio | 60dB |
| Tone Controls | -15dB at 10kHz |
| Speaker Outputs | 4Ω, 8Ω & 16Ω |
| Power Supply | AC: 220-240V 50/60Hz, DC: 12V (Car Battery), DC: 12V (Dry Cells 8 × UM-1 Two Bank) |
| Power Consumption | AC: 80VA DC: 1.2A |
| Dimensions | W250 × H115 × D270 mm |
| Weight | 4.3kg |
The UTR-30E is an Ahuja low wattage PA mixer amplifier in the Vehicle Amplifiers rated 25 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
3 Mic & 1 Aux Input; Cut type Tone control; 3 POWER SOURCE Amplifier: AC mains, 12V DC (Car Battery) and 12V DC Dry Cell (Two Banks of 8×1.5V UM-1 cell each); Extremely portable and ideal for use in remote places without electricity; Battery saver switch for long battery life and red LED for low battery indication.
The UTR-30E input channels is 3 × Mic 1.0mV/10kΩ, 1 × Aux 50mV/250kΩ.
The UTR-30E frequency response is 150-10,000Hz ±3dB.
The UTR-30E signal to noise ratio is 60dB.
The UTR-30E tone controls is -15dB at 10kHz.
The UTR-30E speaker outputs is 4Ω, 8Ω & 16Ω.
