Ahuja
UB-30M
- Power
- 30 WATTS
- Series
- Vehicle Amplifiers
- Category
- Mixer Amplifiers
- Category
- Vehicle Amplifiers
Ahuja UB-30M is available from MSC, authorized Ahuja dealer for Maharashtra and Goa. Share application (school, temple, retail, events) for specification and quote.

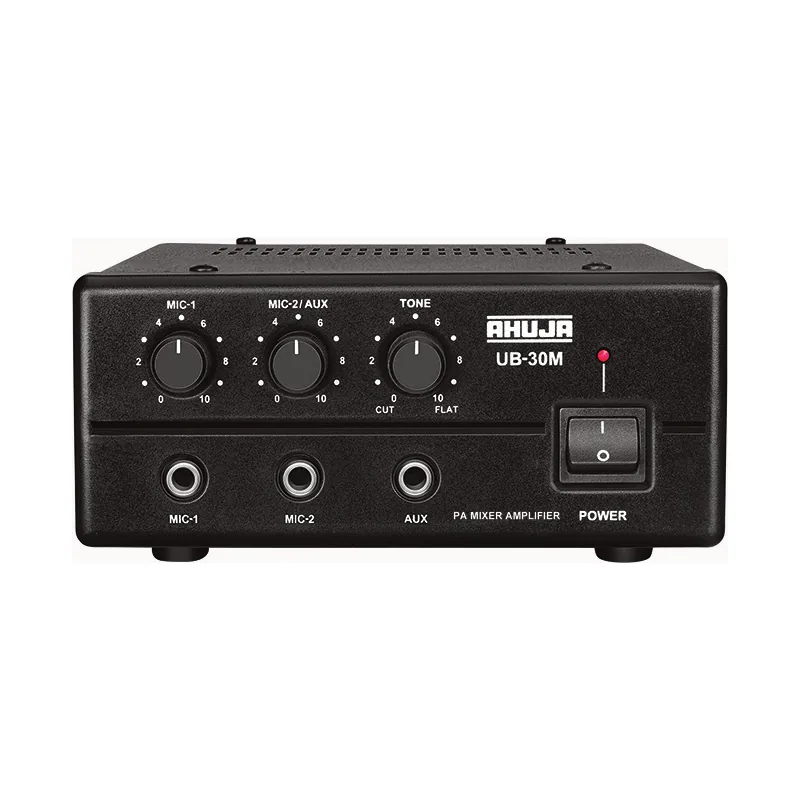

The Ahuja UB-30M is a 25W low wattage PA mixer amplifier with AC and 12V DC operation. Features 2 mic and 1 aux input, cut type tone control, and automatic changeover from AC to battery operation.
Features
- AC & 12V DC operation — 2 power source amplifier.
- 2 mic and 1 aux input.
- Cut type tone control.
- Provision of automatic changeover from AC to battery operation ensuring continuity of program.
- Protection against wrong battery polarity.
Specifications, Q&A and videos
| Power Output | 30W RMS Max., 25W RMS at 10% THD |
|---|---|
| Input Channels | 2 × Mic 1.0mV/4.7kΩ, 1 × Aux 100mV/470kΩ |
| Frequency Response | 150-10,000Hz ±3dB |
| Signal to Noise Ratio | 60dB |
| Tone Controls | -10dB at 10kHz |
| Speaker Outputs | 4Ω, 8Ω & 16Ω & 100V |
| Power Supply | AC: 220-240V 50/60Hz, DC: 12V (Car Battery) |
| Power Consumption | AC: 80VA DC: 1.2A |
| Dimensions | W180 × H80 × D260 mm |
| Weight | 3.00kg |
What type of low wattage PA mixer amplifier is the UB-30M?
The UB-30M is an Ahuja low wattage PA mixer amplifier in the Vehicle Amplifiers rated 30 WATTS. Ahuja UB-30M is available from MSC, authorized Ahuja dealer for Maharashtra and Goa. Available from Mansukhlal Sales Corporation, an authorized dealer.
What are the main features of the UB-30M?
AC & 12V DC operation — 2 power source amplifier; 2 mic and 1 aux input; Cut type tone control; Provision of automatic changeover from AC to battery operation ensuring continuity of program; Protection against wrong battery polarity.
What is the input channels of the UB-30M?
The UB-30M input channels is 2 × Mic 1.0mV/4.7kΩ, 1 × Aux 100mV/470kΩ.
What is the frequency response of the UB-30M?
The UB-30M frequency response is 150-10,000Hz ±3dB.
What is the signal to noise ratio of the UB-30M?
The UB-30M signal to noise ratio is 60dB.
What is the tone controls of the UB-30M?
The UB-30M tone controls is -10dB at 10kHz.
What is the speaker outputs of the UB-30M?
The UB-30M speaker outputs is 4Ω, 8Ω & 16Ω & 100V.
