Ahuja

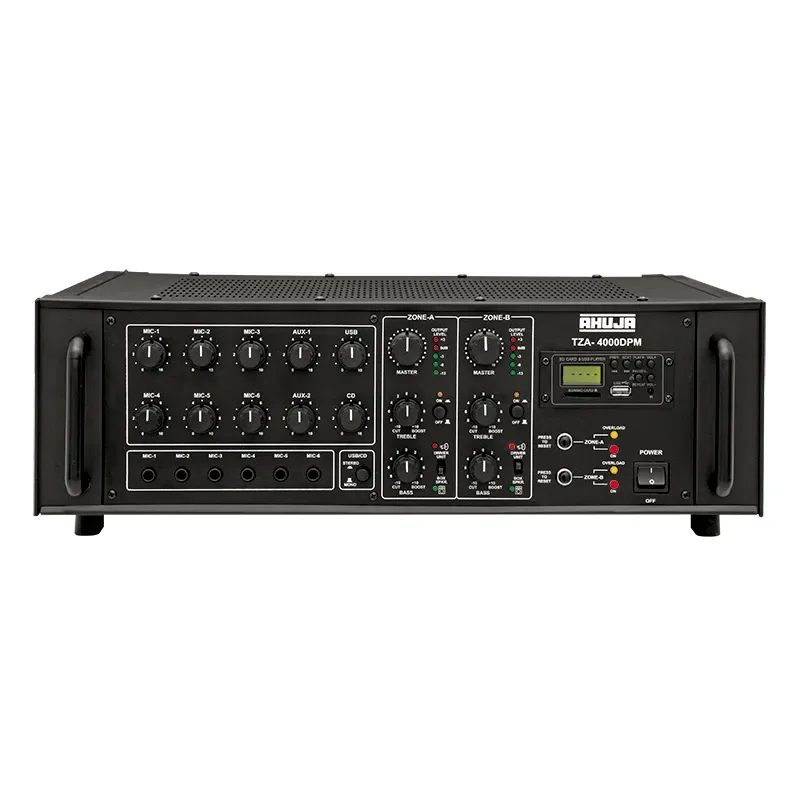

The Ahuja TZA-4000 DPM is a PA mixer amplifier with stereo/mono switch to change ambience of MP3 music player and cd/stereo music for dj programmes.
Built-in MP3 player with remote control and LCD display for USB, SD/MMC card reader.
| Power Output | 300W + 300W Max., 200W + 200W RMS at 10% THD, 180W + 180W RMS at 5% THD, 165W + 165W RMS at 2% THD |
|---|---|
| Output Regulation | ≤ 2 dB, no load to full load at 1kHz |
| Input Channels | Mic/Aux: 6 × Mic 0.6mV/4.7kΩ, 2 × Aux 100mV/470kΩ, Stereo Music Mode: L/R 200mV/100kΩ, Line L/R 1V/50kΩ |
| Frequency Response | 50-15,000Hz ±3dB |
| Signal to Noise Ratio | 60dB |
| Tone Controls | Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz |
| Output | Preamp 200mV/600Ω, Line 1V/1kΩ |
| Speaker Output | 4Ω, 8Ω, 70V & 100V for each zone |
| Digital Player | MP3 Player with USB, SD and MMC Card Reader |
| Power Supply | AC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery) |
| Power Consumption | AC: 700VA DC: 9A |
| Dimensions | W510 × H172 × D385 mm |
| Weight | 24.2kg |
The TZA-4000DPM is an Ahuja PA mixer amplifier in the TZA Series rated 400 WATTS. The Ahuja TZA-4000 DPM is a PA mixer amplifier with stereo/mono switch to change ambience of MP3 music player and cd/stereo music for dj programmes. Available from Mansukhlal Sales Corp, an authorized dealer.
6 Mic, 2 Aux Inputs and CD/Stereo input (L&R); Separate USB level control provided; Line Input & Output on each zone for connecting to a Mixer and Booster Amplifier respectively. Preamplifier output for recording; Box Speaker/Driver Unit selector switch for each zone. Bass boost defeated at Driver Unit position for safer operation of driver units. Zone On/Off facility; Resettable circuit breaker for protection against overload and short circuit; Instant transfer to DC power (Car Battery) if AC power fails.
The TZA-4000DPM output regulation is ≤ 2 dB, no load to full load at 1kHz.
The TZA-4000DPM input channels is Mic/Aux: 6 × Mic 0.6mV/4.7kΩ, 2 × Aux 100mV/470kΩ, Stereo Music Mode: L/R 200mV/100kΩ, Line L/R 1V/50kΩ.
The TZA-4000DPM frequency response is 50-15,000Hz ±3dB.
The TZA-4000DPM signal to noise ratio is 60dB.
The TZA-4000DPM tone controls is Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz.
