Ahuja
THUNDER1845
- Power
- 1300 WATTS
- Category
- Transducers
- Category
- Speaker Components

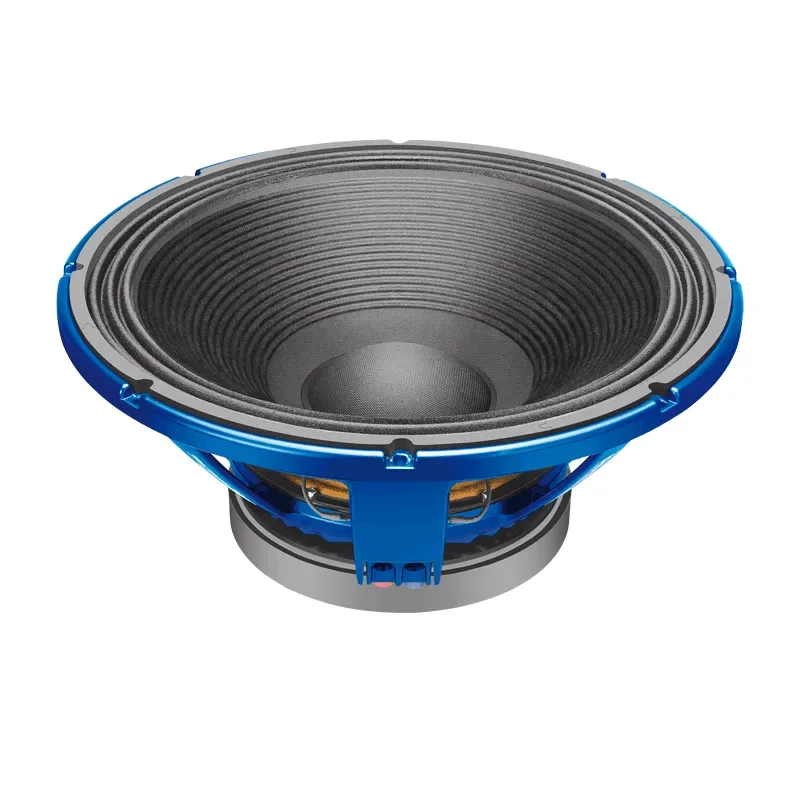

The Ahuja THUNDER1845 is a 1300W super power 18” extended low frequency speaker.
Deep low frequency response makes it ideal choice for Cinema, Auditoria and Stage applications.
Features
- 1300W RMS continuous power handling.
- 11.43cm (4.5") I/O Copper voice coil for higher efficiency.
- Sensitivity 97dB/1W/1m.
- For use in Professional High Power sub-woofer Speaker Systems.
- Deep low frequency response makes it ideal choice for Cinema, Auditoria and Stage applications.
Specifications, Q&A and videos
| Power Rating | 1300W RMS/2600W Programme |
|---|---|
| Nominal Diameter | 460 mm (18”) |
| Nominal Impedance | 8Ω |
| Sensitivity (1W/1m ) | 97dB |
| Resonant FrequenceY (Fs) | 36Hz |
| Electromagnetic Q (Qes) | 0.360 |
| Mechanical Q (Qms) | 25.4 |
| Total Q (Qts) | 0.355 |
| Compliance Equivalent Volume (VAS) | 142.8 Litr |
| Surface Area of Cone (Sd) | 1219cm2 |
| Reference Efficiency (ηo) | 1.8% |
| Voice Coil Overhang Xmax | 9.4 mm |
| Moving Mass Mms | 283.2 gm |
| BI Product BL | 29.5 TM |
| Coil Inductance Le | 1.07 mH |
| Overall Diameter | 468 mm |
| Depth | 220 mm |
| Baffle Hole Diameter | 440 mm |
| Bolt Mount Diameter (PCD) | 448 mm (8 Bolts) |
| Weight | 17.43kg Approx. |
The THUNDER1845 is an Ahuja super power 18” extended low frequency speaker rated 1300 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
1300W RMS continuous power handling; 11.43cm (4.5") I/O Copper voice coil for higher efficiency; Sensitivity 97dB/1W/1m; For use in Professional High Power sub-woofer Speaker Systems; Deep low frequency response makes it ideal choice for Cinema, Auditoria and Stage applications.
The THUNDER1845 nominal diameter is 460 mm (18”).
The THUNDER1845 nominal impedance is 8Ω.
The THUNDER1845 sensitivity (1w/1m ) is 97dB.
The THUNDER1845 resonant frequencey (fs) is 36Hz.
The THUNDER1845 electromagnetic q (qes) is 0.360.
