Ahuja
L18-SW2500
- Power
- 2500 WATTS
- Channels
- 2 Channels
- Series
- LF Speakers
- Category
- Transducers
- Category
- Speaker Components

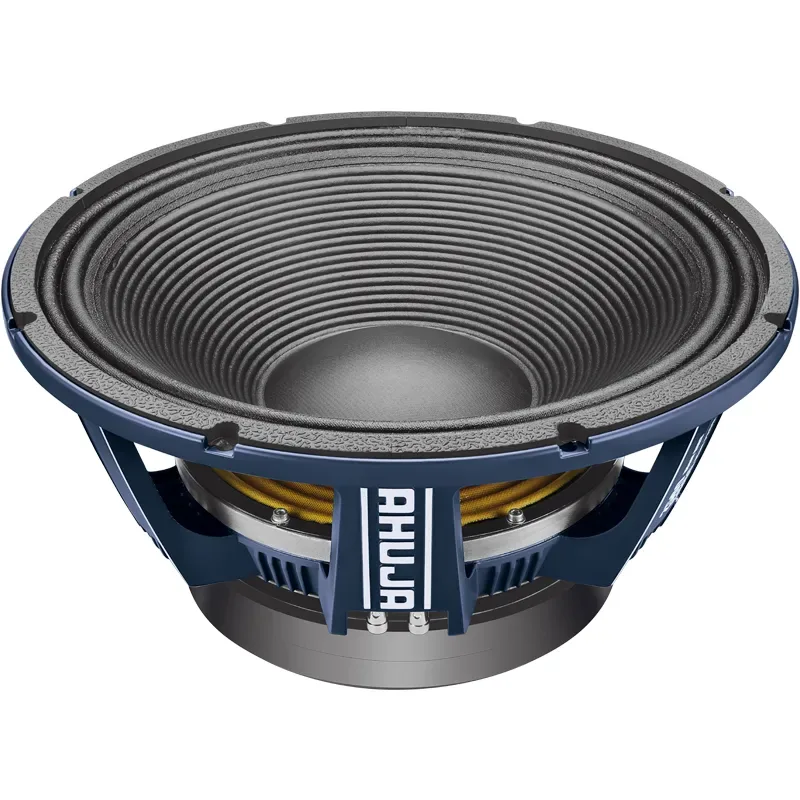

The Ahuja L18-SW2500 is a 2500W super power 18” extended low frequency speaker with a 12.7cm (5") i/o copper voice coil for higher efficiency. It has a vented aluminium die-cast frame with built-in heat sink for enhanced heat dissipation.
It has a higher grade and heavy duty dual ferrite magnet in rigid assembly.
Features
- Powerful & Rugged Speaker with Extended Low Frequency Response.
- For use in Professional High Power sub-woofer Speaker Systems.
- 12.7cm (5") I/O copper voice coil for higher efficiency.
- Vented Aluminium Die-cast frame with built-in heat sink for enchanced heat dissipation.
- Higher grade and heavy duty dual ferrite magnet in rigid assembly.
- Double spider design for better excursion control.
- Composite treated cone paper for better strength and reliability.
- Heavy duty push type terminals for easy and firm connection.
Specifications, Q&A and videos
| Power Rating | 2500W RMS/5000W Programme |
|---|---|
| Nominal Diameter | 460mm (18”) |
| Nominal Impedance | 8Ω |
| Sensitivity (1W/1m ) | 97dB |
| Magnet Weight | 9.04kg |
| Resonant Frequency | 45Hz |
| DC Resistance (Re) | 5.6Ω |
| Electromagnetic Q (Qes) | 0.26 |
| Mechanical Q (Qms) | 8.90 |
| Total Q (Qts) | 0.25 |
| Compliance Equivalent Volume (VAS) | 86.10 Litr |
| Surface Area of Cone (Sd) | 1225cm2 |
| Reference Efficiency (ηo) | 2.98% |
| Voice Coil | 5.0” |
| Overhang (Xmax) | 10.9mm |
| Moving Mass (Mms) | 298.7gm |
| BL Product (BL) | 42.88TM |
| Coil Inductance (Le) | 2.74mH |
| Overall Diameter | 466 mm |
| Depth | 240 mm |
| Baffle Hole Diameter | 420 mm |
| Bolt Mount Diameter (PCD) | 445 mm (8 Bolts) |
| Weight | 25.10kg |
The L18-SW2500 is an Ahuja super power 18” extended low frequency speaker in the LF Speakers. The Ahuja L18-SW2500 is a 2500W super power 18” extended low frequency speaker with a 12.7cm (5") i/o copper voice coil for higher efficiency. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Powerful & Rugged Speaker with Extended Low Frequency Response; For use in Professional High Power sub-woofer Speaker Systems; 12.7cm (5") I/O copper voice coil for higher efficiency; Vented Aluminium Die-cast frame with built-in heat sink for enchanced heat dissipation; Higher grade and heavy duty dual ferrite magnet in rigid assembly; Double spider design for better excursion control.
The L18-SW2500 nominal diameter is 460mm (18”).
The L18-SW2500 nominal impedance is 8Ω.
The L18-SW2500 sensitivity (1w/1m ) is 97dB.
The L18-SW2500 magnet weight is 9.04kg.
The L18-SW2500 resonant frequency is 45Hz.
