Ahuja
L18-SW1000
- Power
- 1000 WATTS
- Series
- LF Speakers
- Category
- Transducers
- Category
- Speaker Components

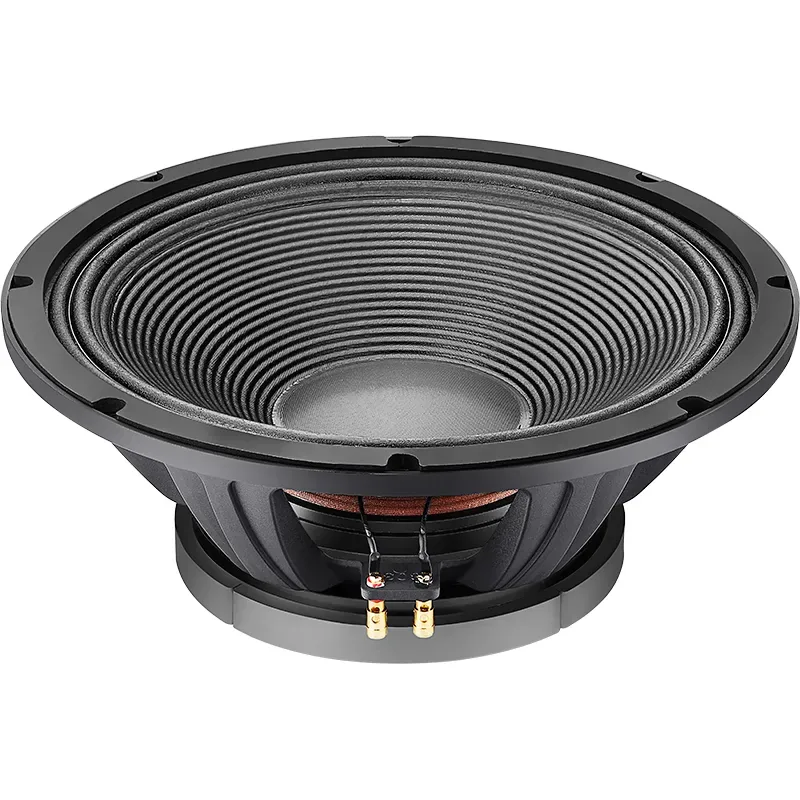

The Ahuja L18-SW1000 is a 1000W super power 45.72cm (18”) extended low frequency speaker with a 12.7cm (5") inside/outside ccaw voice coil for higher SPL. It has ideal professional bass speaker for live music, sound reinforcement and all PA applications.
It has a robust aluminium die-cast frame with efficient heat dissipating vents. Aluminium demodulating ring fitted for further enhanced heat dissipation.
Features
- Super power and reliable speaker for powerful bass & subwoofer applications.
- Robust aluminium die-cast frame with efficient heat dissipating vents. Aluminium demodulating ring fitted for further enhanced heat dissipation.
- Double spider design for better excursion control.
- GLASS FIBRE former voice coil for withstanding high temperatures.
- 12.7cm (5") inside/outside CCAW voice coil for higher SPL.
- Cone specially treated for water splash resistance.
- Ideal professional bass speaker for live music, sound reinforcement and all PA applications.
Specifications, Q&A and videos
| Power Rating | 1000W RMS |
|---|---|
| Nominal Diameter | 457mm (18”) |
| Nominal Impedance | 8Ω |
| Sensitivity (1W/1m ) | 99 dB |
| Magnet Weight | 5.65kg |
| Resonant Frequencey (Fs) | 36Hz |
| DC Resistance (Re) | 5.6Ω |
| Electromagnetic Q (Qes) | 0.32 |
| Mechanical Q (Qms) | 14.70 |
| Total Q (Qts) | 0.31 |
| Compliance Equivalent Volume (VAS) | 249 Litr |
| Surface Area of Cone (Sd) | 1257cm2 |
| Reference Efficiency (ηo) | 3.6% |
| Voice Coil | 5.0” |
| Overhang (Xmax) | 8.0 mm |
| Moving Mass (Mms) | 169gm |
| BL Product (BL) | 26.0TM |
| Coil Inductance (Le) | 1.91mH |
| Overall Diameter | 477 mm |
| Depth | 202 mm |
| Baffle Hole Diameter | 427 mm |
| Bolt Mount Diameter (PCD) | 451.5 mm (8 Bolts) |
| Weight | 19.20kg |
The L18-SW1000 is an Ahuja super power 45.72cm (18”) extended low frequency speaker in the LF Speakers. The Ahuja L18-SW1000 is a 1000W super power 45.72cm (18”) extended low frequency speaker with a 12.7cm (5") inside/outside ccaw voice coil for higher SPL. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Super power and reliable speaker for powerful bass & subwoofer applications; Robust aluminium die-cast frame with efficient heat dissipating vents. Aluminium demodulating ring fitted for further enhanced heat dissipation; Double spider design for better excursion control; GLASS FIBRE former voice coil for withstanding high temperatures; 12.7cm (5") inside/outside CCAW voice coil for higher SPL; Cone specially treated for water splash resistance.
The L18-SW1000 nominal diameter is 457mm (18”).
The L18-SW1000 nominal impedance is 8Ω.
The L18-SW1000 sensitivity (1w/1m ) is 99 dB.
The L18-SW1000 magnet weight is 5.65kg.
The L18-SW1000 resonant frequencey (fs) is 36Hz.
