SM Professional
SWF 18140
- Power
- 2800 WATTS
- Series
- SWF Series
- Category
- Transducers
- Category
- Speaker Components

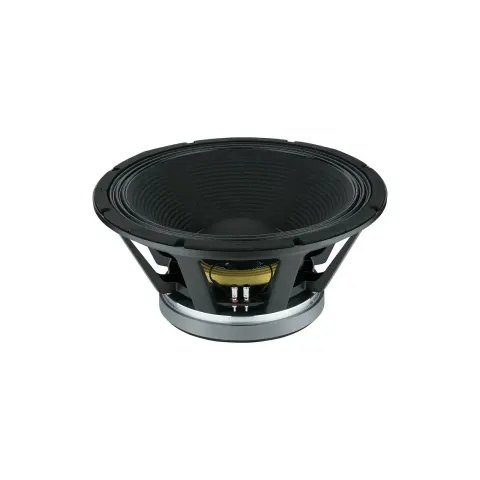

The S-Series is our most comprehensive range of high-performance transducers designed to deliver powerful sound reproduction, suit a wide variety of enclosure designs, and perform reliably for years without losing their sonic qualities.
Features
- High-quality 18” 1400W (RMS) subwoofer transducer with excellent sensitivity and excursion capabilities.
- Assembled using high-quality Ferrite magnets, tightly-wound 5" inside/outside Copper voice coil, and responsive paper cone.
- Ventilated voice coil gap to reduce power compression, improve conversion efficiency, and superior cooling.
- Heavy-duty die-cast frame with a wide flange for increased rigidity.
- Engineered to suit a wide variety of enclosure designs to deliver high power, clarity, and punch.
Specifications, Q&A and videos
| Series | S Series |
|---|---|
| Product Type | Sub-Woofer |
| Power Output (RMS / Peak) Watts | 1400/2800 |
| Frequency Range (Hz) | 40-1800 |
| Impedance | 8 |
| Sensitivity (1w @ 1m) dB | 97 |
| Nominal Diameter (mm/inch) | 460/18 |
| Voice Coil Diameter (mm/Inch) | 127/5 |
| Voice Coil Material | Copper |
| Kind of Layer | Inside/Outside |
| Basket | Die-cast |
| Net Weight (Kg) | 19.3 |
The SWF 18140 is an SM Professional PA product in the SWF Series rated 2800 WATTS. The S-Series is our most comprehensive range of high-performance transducers designed to deliver powerful sound reproduction, suit a wide variety of enclosure designs, and perform. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
High-quality 18” 1400W (RMS) subwoofer transducer with excellent sensitivity and excursion capabilities; Assembled using high-quality Ferrite magnets, tightly-wound 5" inside/outside Copper voice coil, and responsive paper cone; Ventilated voice coil gap to reduce power compression, improve conversion efficiency, and superior cooling; Heavy-duty die-cast frame with a wide flange for increased rigidity; Engineered to suit a wide variety of enclosure designs to deliver high power, clarity, and punch.
The SWF 18140 product type is Sub-Woofer.
The SWF 18140 power output (rms / peak) watts is 1400/2800.
The SWF 18140 frequency range (hz) is 40-1800.
The SWF 18140 impedance is 8.
The SWF 18140 sensitivity (1w @ 1m) db is 97.
