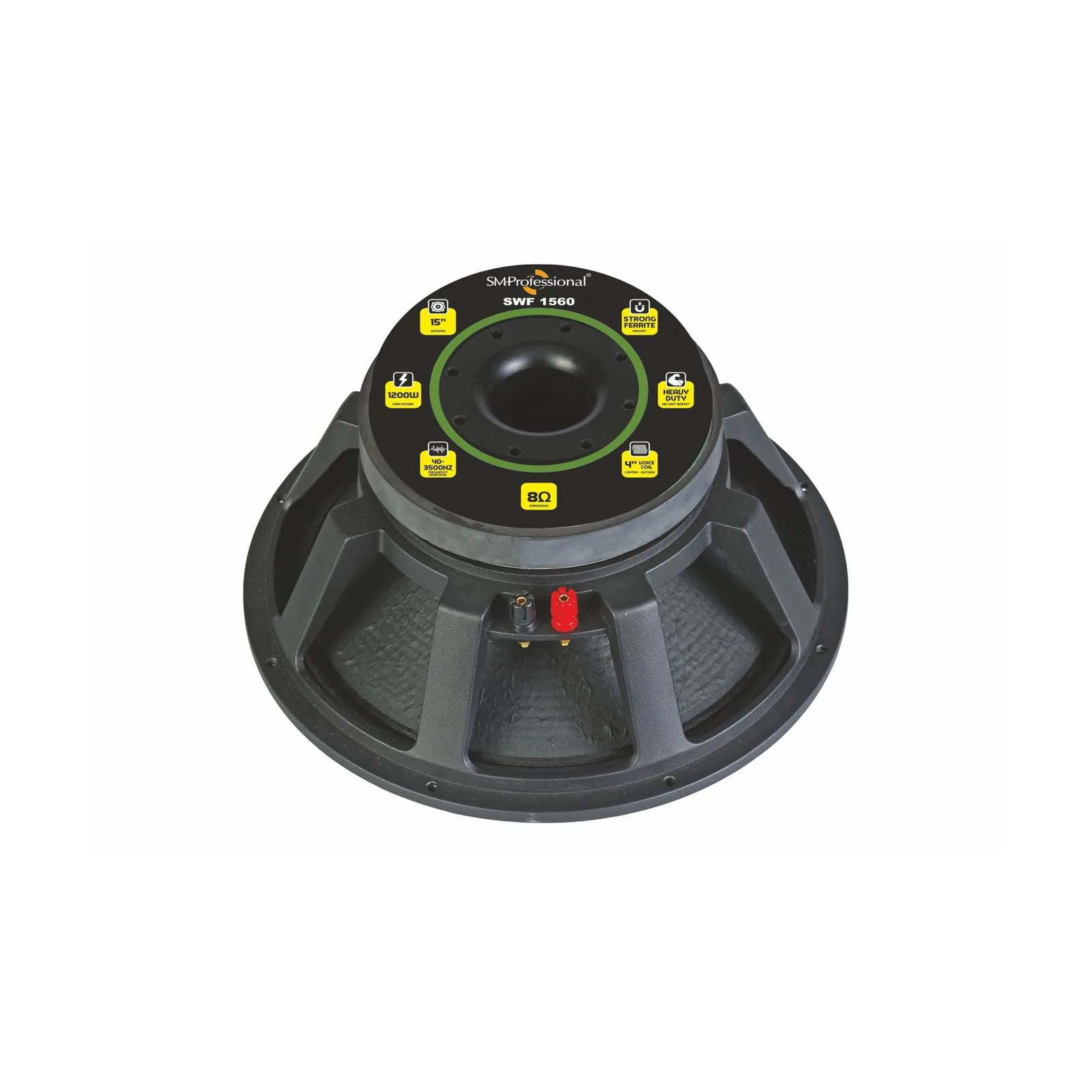

SM Professional
SWF 1560
- Power
- 1200 WATTS
- Series
- SWF Series
- Category
- Transducers
- Category
- Speaker Components
The SM Professional S-SERIES Components are made from high quality parts which ensure excellent sound reproduction.
The transducers are built to last for years, without losing their sonic qualities.
Features
- High quality transducers with excellent sensitivity & excursion capabilities.
- Highly recommended for two-way & three-way systems where high power handling and punch are required
- Designed to be extremely rugged, robust & sturdy, making it perfect for a variety of sound reinforcement systems.
Specifications, Q&A and videos
| Series | S Series |
|---|---|
| Product Type | Woofer |
| Power Output (RMS / Peak) Watts | 600/1200 |
| Frequency Range (Hz) | 40-3500 |
| Impedance (Ω) | 8 |
| Sensitivity (1w @ 1m) dB | 97 |
| Nominal Diameter | 380/15 |
| Voice Coil Diameter(mm/Inch) | 100/4 |
| Voice Coil Material | Copper |
| Kind of Layer | Outside |
| Basket | Die-cast |
| Net Weight (Kgs.) | 11.3 |
The SWF 1560 is an SM Professional PA product in the SWF Series rated 1200 WATTS. The SM Professional S-SERIES Components are made from high quality parts which ensure excellent sound reproduction. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
High quality transducers with excellent sensitivity & excursion capabilities; Highly recommended for two-way & three-way systems where high power handling and punch are required; Designed to be extremely rugged, robust & sturdy, making it perfect for a variety of sound reinforcement systems.
The SWF 1560 product type is Woofer.
The SWF 1560 power output (rms / peak) watts is 600/1200.
The SWF 1560 frequency range (hz) is 40-3500.
The SWF 1560 impedance (ω) is 8.
The SWF 1560 sensitivity (1w @ 1m) db is 97.
