Ahuja
SSB-85FX
- Power
- 80 WATTS
- Series
- SSB Series
- Category
- Mixer Amplifiers

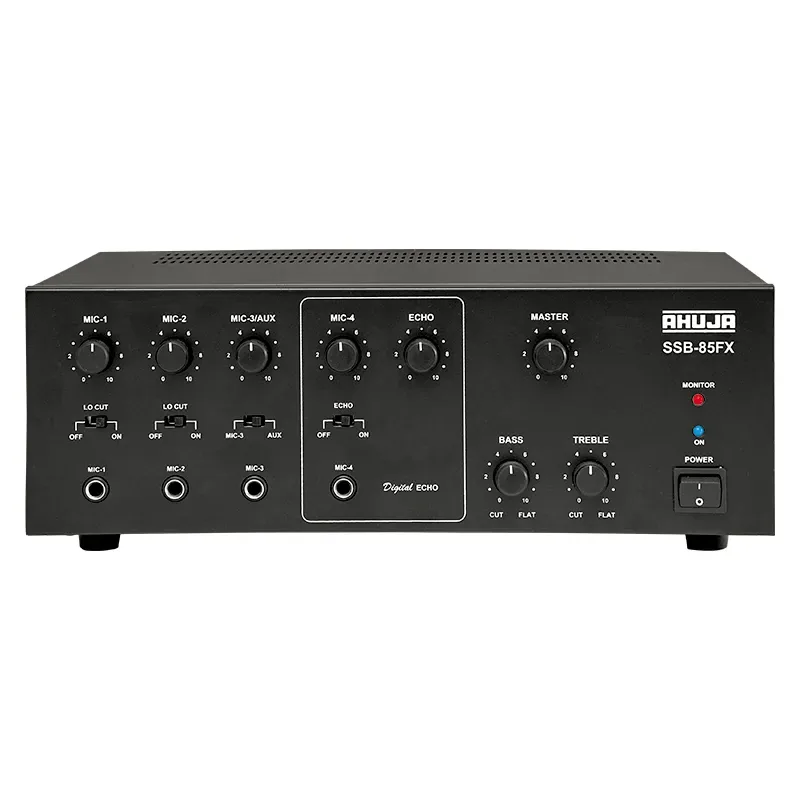

The Ahuja SSB-85FX is an 80W medium wattage PA mixer amplifier. Preamplifier Output for connecting to a Booster Amplifier and for recording the programme.
Instant transfer to DC power (Car Battery) if AC power fails.
Features
- 4 Mic & 1 Aux Inputs.
- Built-in digital echo effect on Mic-4.
- Mic-3 is altenate to Aux through switch.
- Mic-1 & Mic-2 having LO-CUT facility.
- Preamplifier Output for connecting to a Booster Amplifier and for recording the programme.
- Cut type Bass & Treble controls.
- Instant transfer to DC power (Car Battery) if AC power fails.
Specifications, Q&A and videos
| Power Output | 110W Max., 80W RMS at 10% THD, 75W RMS at 5% THD, 60W RMS at 2% THD |
|---|---|
| Output Regulation | ≤ 2 dB, no load to full load at 1kHz |
| Input Channels | 4×Mic 0.65mV/4.7kΩ, 1 × Aux 100mV/470kΩ |
| Frequency Response | 65-15,000Hz ±3dB |
| Signal to Noise Ratio | 60dB |
| Tone Controls | Bass: -10dB at 100Hz, Treble: -10dB at 10kHz |
| Outputs | Preamp 200mV/600Ω |
| Speaker Outputs | 4Ω, 8Ω, 16Ω, 70V & 100V |
| Power Supply | AC: 220-240V 50/60Hz, DC: 12V (12V Car Battery) |
| Power Consumption | AC: 180VA DC: 3A |
| Dimensions | W355 × H133 × D285 mm |
| Weight | 8.5kg |
The SSB-85FX is an Ahuja medium wattage PA mixer amplifier in the SSB Series rated 80 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
4 Mic & 1 Aux Inputs; Built-in digital echo effect on Mic-4; Mic-3 is altenate to Aux through switch; Mic-1 & Mic-2 having LO-CUT facility; Preamplifier Output for connecting to a Booster Amplifier and for recording the programme; Cut type Bass & Treble controls.
The SSB-85FX output regulation is ≤ 2 dB, no load to full load at 1kHz.
The SSB-85FX input channels is 4×Mic 0.65mV/4.7kΩ, 1 × Aux 100mV/470kΩ.
The SSB-85FX frequency response is 65-15,000Hz ±3dB.
The SSB-85FX signal to noise ratio is 60dB.
The SSB-85FX tone controls is Bass: -10dB at 100Hz, Treble: -10dB at 10kHz.
