Ahuja
SSB-60EM
- Power
- 60 WATTS
- Series
- SSB Series
- Category
- Mixer Amplifiers

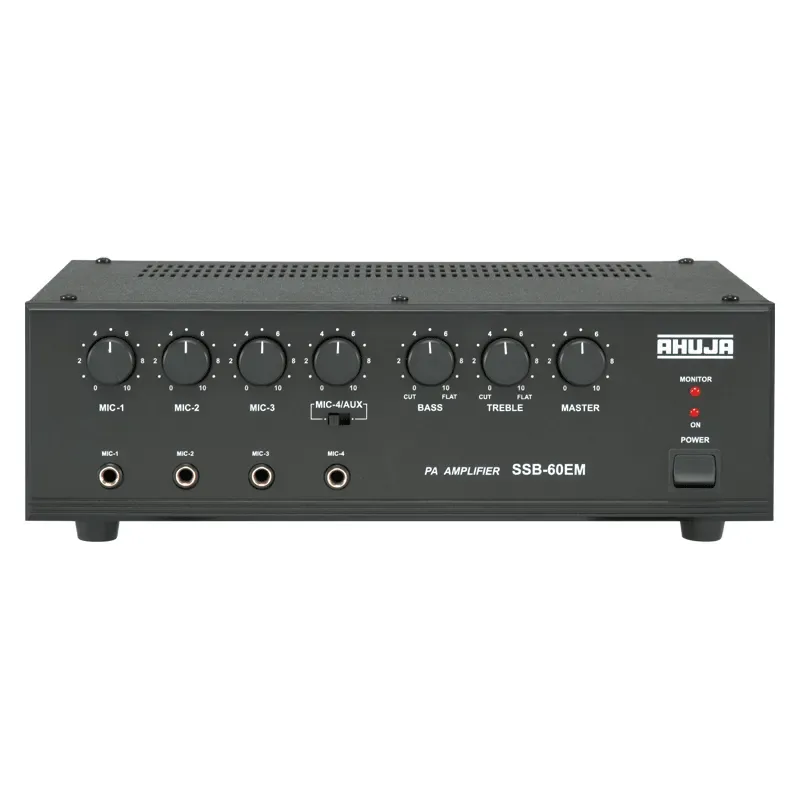

The Ahuja SSB-60 EM is a 60W medium wattage PA mixer amplifier. Preamplifier Output for connecting to a Booster Amplifier and for recording the programme.
Instant transfer to DC power (Car Battery) if AC power fails.
Features
- 4 Mic & 1 Aux Inputs.
- Preamplifier Output for connecting to a Booster Amplifier and for recording the programme.
- Instant transfer to DC power (Car Battery) if AC power fails.
- Cut type Bass & Treble Controls.
Specifications, Q&A and videos
| Power Output | 90W Max., 65W RMS at 10% THD, 60W RMS at 5% THD, 50W RMS at 2% THD |
|---|---|
| Output Regulation | ≤ 2 dB, no load to full load at 1kHz |
| Input Channels | 4 × Mic 0.65mV/4.7kΩ, 1 × Aux 100mV/470 kΩ |
| Frequency Response | 50-15,000Hz ±3dB |
| Signal to Noise Ratio | 60dB |
| Tone Controls | Bass: -10dB at 100Hz, Treble: -10dB at 10kHz, |
| Speaker Outputs | 4Ω, 8Ω, 16Ω & 100V |
| Power Supply | AC: 220-240V 50/60Hz, DC: 12V (12V Car Battery) |
| Power Consumption | AC: 160VA DC: 3A |
| Dimensions | W350 × H120 × D265 mm |
The SSB-60EM is an Ahuja medium wattage PA mixer amplifier in the SSB Series rated 60 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
4 Mic & 1 Aux Inputs; Preamplifier Output for connecting to a Booster Amplifier and for recording the programme; Instant transfer to DC power (Car Battery) if AC power fails; Cut type Bass & Treble Controls.
The SSB-60EM output regulation is ≤ 2 dB, no load to full load at 1kHz.
The SSB-60EM input channels is 4 × Mic 0.65mV/4.7kΩ, 1 × Aux 100mV/470 kΩ.
The SSB-60EM frequency response is 50-15,000Hz ±3dB.
The SSB-60EM signal to noise ratio is 60dB.
The SSB-60EM tone controls is Bass: -10dB at 100Hz, Treble: -10dB at 10kHz,.
