Ahuja
SSB-45EM
- Power
- 45 WATTS
- Series
- SSB Series
- Category
- Mixer Amplifiers

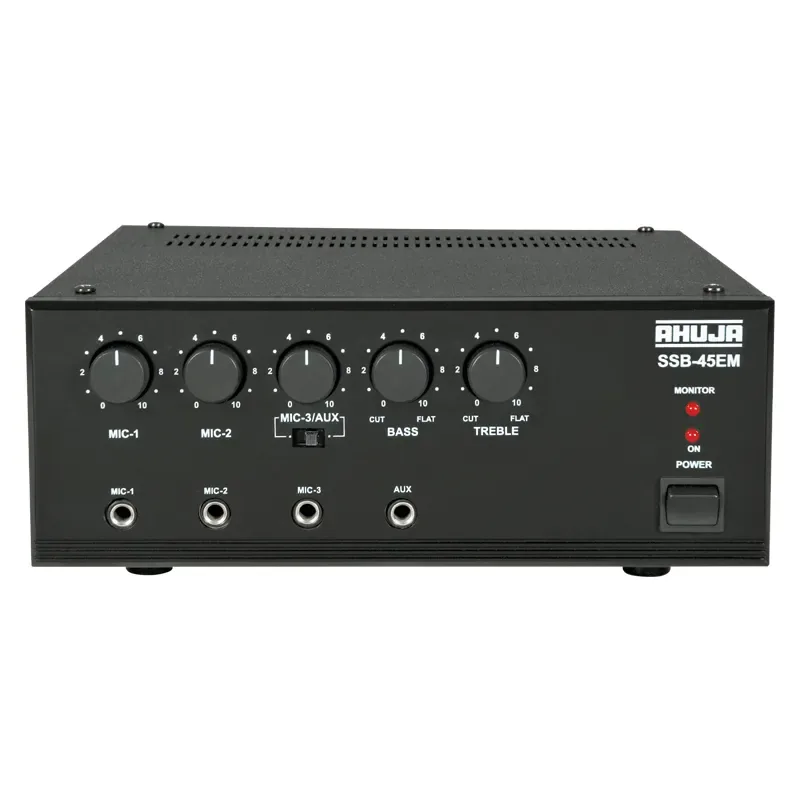

The Ahuja SSB-45 EM is a 45W medium wattage PA mixer amplifier. Preamplifier Output for connecting to a Booster Amplifier and for recording the programme.
Instant transfer to DC power (Car Battery) if AC power fails.
Features
- 3 Mic & 1 Aux Inputs.
- Preamplifier Output for connecting to a Booster Amplifier and for recording the programme.
- Instant transfer to DC power (Car Battery) if AC power fails.
- Cut type Bass & Treble Controls.
Specifications, Q&A and videos
| Power Output | 64W Max., 45W RMS at 10% THD, 40W RMS at 5% THD, 30W RMS at 2% THD |
|---|---|
| Output Regulation | ≤ 2 dB, no load to full load at 1kHz |
| Input Channels | 3 × Mic 0.65mV/4.7kΩ, 1 × Aux 100mV/470 kΩ |
| Frequency Response | 100-15,000Hz ±3dB |
| Signal to Noise Ratio | 60dB |
| Tone Controls | Bass: -10dB at 100Hz, Treble: -10dB at 10kHz |
| Outputs | Preamp 200mV/600Ω |
| Speaker Outputs | 4Ω, 8Ω, 16Ω & 100V |
| Power Supply | AC: 220-240V 50/60Hz, DC: 12V (12V Car Battery) |
| Power Consumption | AC: 110VA DC: 2A |
| Dimensions | W280 × H120 × D270 mm |
| Weight | 4.8kg |
The SSB-45EM is an Ahuja medium wattage PA mixer amplifier in the SSB Series rated 45 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
3 Mic & 1 Aux Inputs; Preamplifier Output for connecting to a Booster Amplifier and for recording the programme; Instant transfer to DC power (Car Battery) if AC power fails; Cut type Bass & Treble Controls.
The SSB-45EM output regulation is ≤ 2 dB, no load to full load at 1kHz.
The SSB-45EM input channels is 3 × Mic 0.65mV/4.7kΩ, 1 × Aux 100mV/470 kΩ.
The SSB-45EM frequency response is 100-15,000Hz ±3dB.
The SSB-45EM signal to noise ratio is 60dB.
The SSB-45EM tone controls is Bass: -10dB at 100Hz, Treble: -10dB at 10kHz.
