Ahuja
SSA-7000
- Power
- 700 WATTS
- Series
- SSA Series
- Category
- Mixer Amplifiers

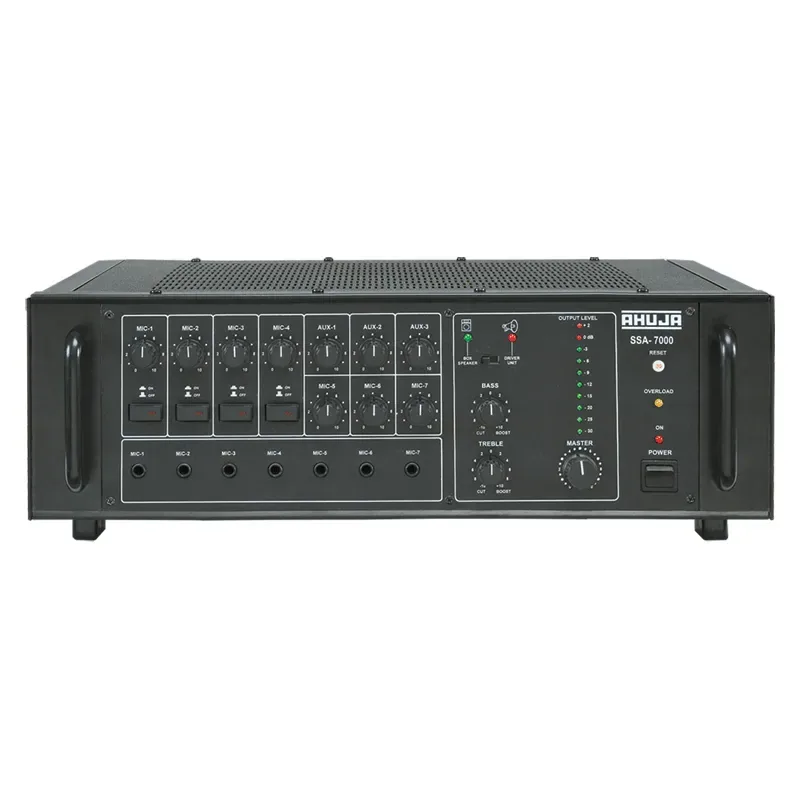

The Ahuja SSA-7000 is a 700W high wattage PA mixer amplifier. Line Input for connecting the output from any external mixer or permitting SSA-7000 to be used as a Booster Power Amplifier.
It has box speaker/driver unit selector switch. Bass boost defeated at driver unit position for safer operation of driver units.
Features
- 7 Mic & 3 Aux Inputs.
- Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme.
- Line Input for connecting the output from any external mixer or permitting SSA-7000 to be used as a Booster Power Amplifier.
- Resettable circuit breaker for protection against overload and short circuit.
- Instant transfer to DC power (Car Battery) if AC power fails.
- Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.
Specifications, Q&A and videos
| Power Output | 950W Max., 700W RMS at 10% THD, 600W RMS at 5% THD, 570W RMS at 2% THD |
|---|---|
| Output Regulation | ≤ 2 dB, no load to full load at 1kHz |
| Input Channels | 7 × Mic 0.8mV/4.7kΩ, 2 × Aux 100mV/50kΩ |
| Frequency Response | 50-15,000Hz ±3dB |
| Signal to Noise Ratio | 60dB |
| Tone Controls | Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz |
| Outputs | Preamp 200mV/600Ω, Line 1V/1kΩ |
| Speaker Outputs | 2Ω, 4Ω, 70V & 100V |
| Power Supply | AC: 220-240V 50/60Hz DC: 36V (3×12V Car Battery) |
| Power Consumptiion | AC: 1100VA DC: 11A |
| Dimensions | W510 × H185 × D400 mm |
| Weight | 38.0kg |
The SSA-7000 is an Ahuja high wattage PA mixer amplifier in the SSA Series rated 700 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
7 Mic & 3 Aux Inputs; Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme; Line Input for connecting the output from any external mixer or permitting SSA-7000 to be used as a Booster Power Amplifier; Resettable circuit breaker for protection against overload and short circuit; Instant transfer to DC power (Car Battery) if AC power fails; Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.
The SSA-7000 output regulation is ≤ 2 dB, no load to full load at 1kHz.
The SSA-7000 input channels is 7 × Mic 0.8mV/4.7kΩ, 2 × Aux 100mV/50kΩ.
The SSA-7000 frequency response is 50-15,000Hz ±3dB.
The SSA-7000 signal to noise ratio is 60dB.
The SSA-7000 tone controls is Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz.
