Ahuja
SSA-350DP
- Power
- 350 WATTS
- Series
- SSA Series
- Category
- Mixer Amplifiers
- Category
- DP Mixer Amplifiers

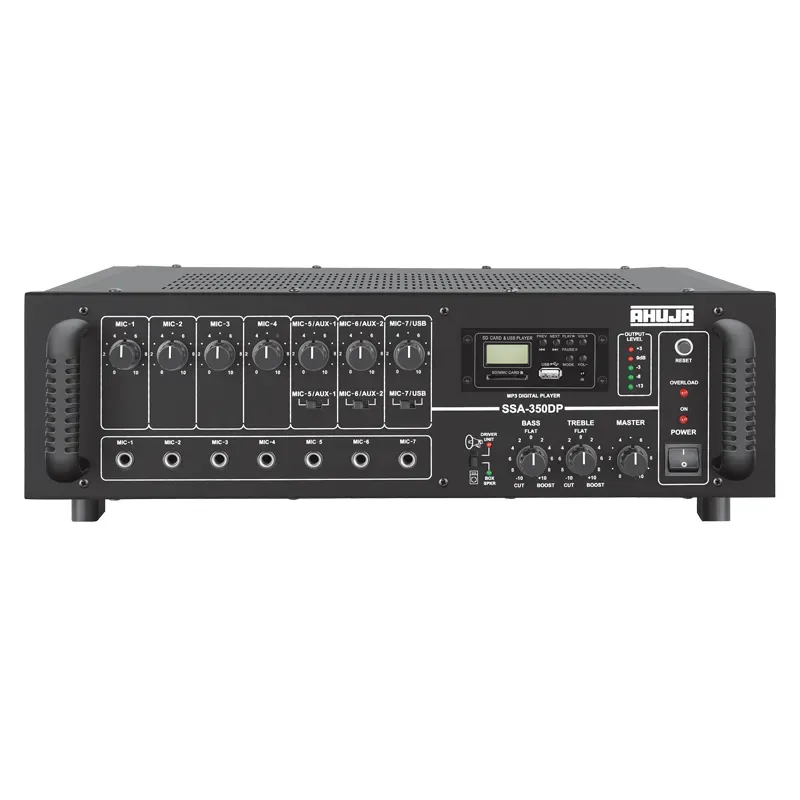

The Ahuja SSA-350DP is a 350W high wattage PA mixer amplifier. Built-in MP3 player facility with USB, SD and MMC Card Reader, Bluetooth.
Line Input for connecting the output from any external PA mixer or permitting SSA-350DP to be used as a Booster Power Amplifier.
Features
- 7 Mic & 2 Aux Inputs.
- Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme.
- Line Input for connecting the output from any external PA mixer or permitting SSA-350DP to be used as a Booster Power Amplifier.
- Resettable circuit breaker for protection against overload and short circuit.
- Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.
- Instant transfer to DC power (Car Battery) if AC power fails.
- Built-in MP3 player facility with USB, SD and MMC Card Reader, Bluetooth.
Specifications, Q&A and videos
| Power Output | 450W Max., 350W RMS at 10% THD; 320W RMS at 5% THD, 300W RMS at 2% THD |
|---|---|
| Output Regulation | ≤ 2 dB, no load to full load at 1kHz |
| Input Channels | 7 × Mic 0.8mV/4.7kΩ, 1 × Aux 100mV/470kΩ; 1 × Aux 200mV/470kΩ, 1 × Line 1V/50kΩ |
| Frequency Response | 50-15,000Hz ±3dB |
| Signal to Noise Ratio | 60dB |
| Tone Controls | Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz |
| Output | Preamp 200mV/600Ω, Line 1V/1kΩ |
| Speaker Output | 4Ω, 8Ω, 70V & 100V |
| Digital Player | MP3 Player with USB, SD and MMC Card Reader, Bluetooth |
| Power Supply | AC: 220-240V 50/60Hz DC: 36V (3 ×12V Car Battery) |
| Power Consumption | AC: 660VA DC: 6A |
| Dimensions | W480 × H160 × D360 mm |
| Weight | 18.96kg |
The SSA-350DP is an Ahuja high wattage PA mixer amplifier in the SSA Series rated 350 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
7 Mic & 2 Aux Inputs; Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme; Line Input for connecting the output from any external PA mixer or permitting SSA-350DP to be used as a Booster Power Amplifier; Resettable circuit breaker for protection against overload and short circuit; Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units; Instant transfer to DC power (Car Battery) if AC power fails.
The SSA-350DP output regulation is ≤ 2 dB, no load to full load at 1kHz.
The SSA-350DP input channels is 7 × Mic 0.8mV/4.7kΩ, 1 × Aux 100mV/470kΩ; 1 × Aux 200mV/470kΩ, 1 × Line 1V/50kΩ.
The SSA-350DP frequency response is 50-15,000Hz ±3dB.
The SSA-350DP signal to noise ratio is 60dB.
The SSA-350DP tone controls is Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz.
