Ahuja

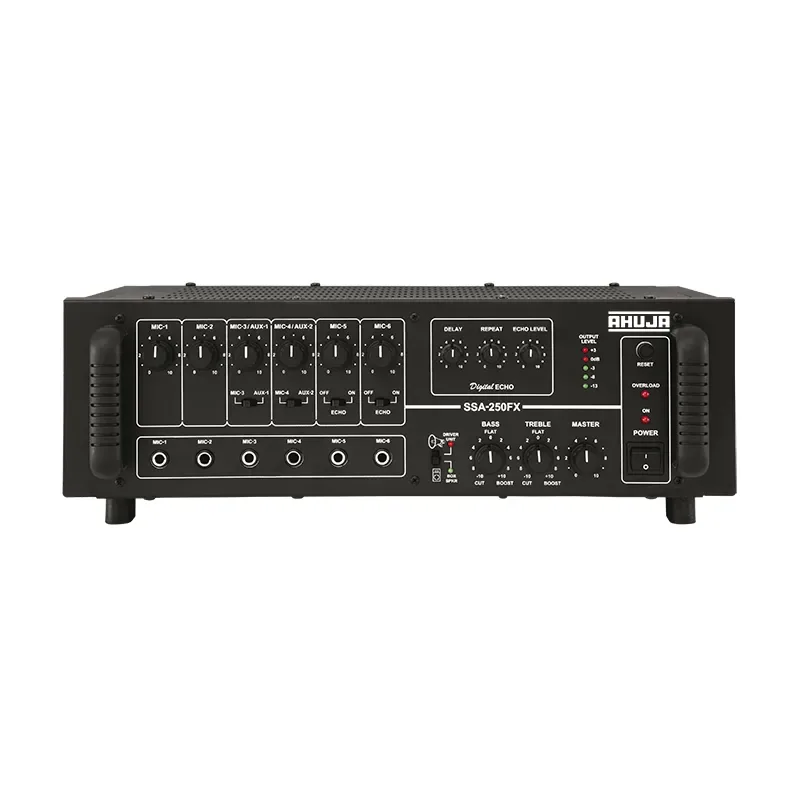

The Ahuja SSA-250FX is a 250W high wattage PA mixer amplifier. Built-in digital effect processor for 2 Mic Inputs.
Resettable circuit breaker for protection against overload and short circuit. Instant transfer to DC power (Car Battery) if AC power fails.
| Power Output | 300W Max., 250W RMS at 10% THD 220W RMS at 5% THD, 200W RMS at 2% THD |
|---|---|
| Output Regulation | ≤ 2 dB, no load to full load at 1kHz |
| Input Channels | 6×Mic 0.65mV/4.7kΩ, 2×Aux 100mV/470 kΩ, 1 × Line 1V/50kΩ |
| Delay System | Digital Signal Processing |
| Delay Range Setting | 60-300ms |
| Frequency Response | 50-15,000Hz ±3dB |
| Signal to Noise Ratio | 60dB |
| Tone Controls | Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz |
| Outputs | Preamp 200mV/600Ω, Line 1V/1kΩ |
| Speaker Outputs | 4Ω, 8Ω, 70V & 100V |
| Power Supply | AC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery) |
| Power Consumption | AC: 460VA DC: 6A |
| Dimensions | W450 × H160 × D340 mm |
| Weight | 15.70kg |
The SSA-250FX is an Ahuja high wattage PA mixer amplifier in the SSA Series rated 250 WATTS. Available from Mansukhlal Sales Corp, an authorized dealer.
Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme; Line Input for connecting the output from any external mixer or permitting SSA-250®M to be used as a Booster Power Amplifier; Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.
The SSA-250FX output regulation is ≤ 2 dB, no load to full load at 1kHz.
The SSA-250FX input channels is 6×Mic 0.65mV/4.7kΩ, 2×Aux 100mV/470 kΩ, 1 × Line 1V/50kΩ.
The SSA-250FX delay system is Digital Signal Processing.
The SSA-250FX delay range setting is 60-300ms.
The SSA-250FX frequency response is 50-15,000Hz ±3dB.
