Ahuja

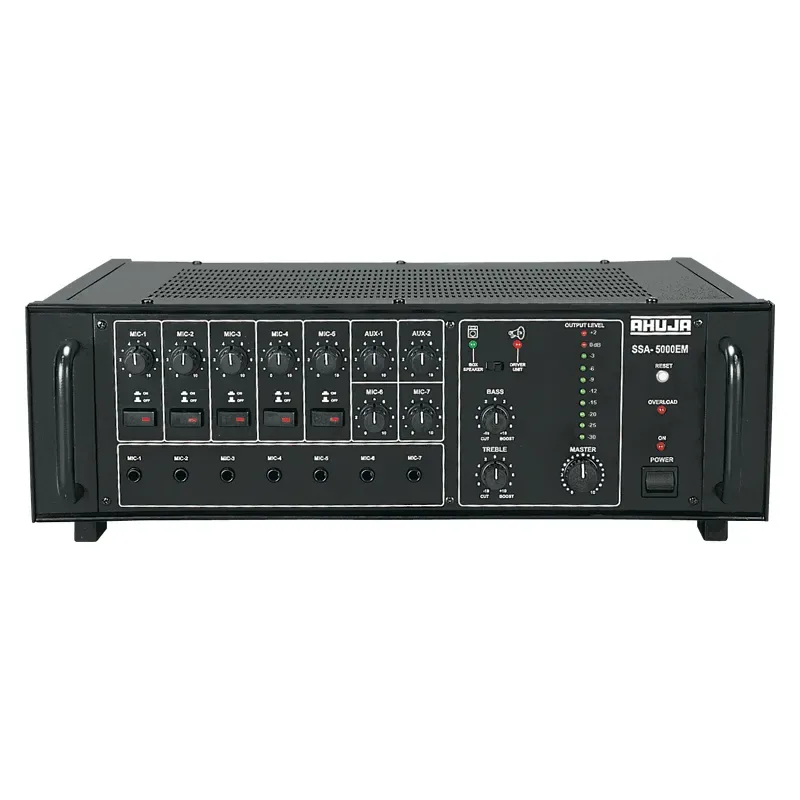

The Ahuja SSA-5000EM is a 500W high wattage PA mixer amplifier. Line Input for connecting the output from any external mixer or permitting SSA-5000EM to be used as a Booster Power Amplifier.
It has box speaker/driver unit selector switch. Bass boost defeated at driver unit position for safer operation of driver units.
| Power Output | 750W Max., 500W RMS at 10% THD, 450W RMS at 5% THD, 415W RMS at 2% THD |
|---|---|
| Output Regulation | ≤ 2 dB, no load to full load at 1kHz |
| Input Channels | 7 × Mic 0.8mV/4.7kΩ, 2 × Aux 100mV/470 kΩ, 1 × Line 1V/50kΩ |
| Frequency Response | 50-15,000Hz ±3dB |
| Signal to Noise Ratio | 60dB |
| Tone Controls | Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz |
| Outputs | Preamp 200mV/600Ω, Line 1V/1kΩ |
| Speaker Outputs | 4Ω, 8Ω, 70V & 100V |
| Power Supply | AC: 220-240V 50/60Hz DC: 36V (3×12V Car Battery) |
| Power Consumption | AC: 1000VA DC: 8A |
| Dimensions | W510 × H172 × D385 mm |
| Weight | 26.7kg |
The SSA-5000EM is an Ahuja high wattage PA mixer amplifier in the SSA Series rated 500 WATTS. Available from Mansukhlal Sales Corp, an authorized dealer.
Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme; Resettable circuit breaker for protection against overload and short circuit; Instant transfer to DC power (Car Battery) if AC power fails.
The SSA-5000EM output regulation is ≤ 2 dB, no load to full load at 1kHz.
The SSA-5000EM input channels is 7 × Mic 0.8mV/4.7kΩ, 2 × Aux 100mV/470 kΩ, 1 × Line 1V/50kΩ.
The SSA-5000EM frequency response is 50-15,000Hz ±3dB.
The SSA-5000EM signal to noise ratio is 60dB.
The SSA-5000EM tone controls is Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz.
