Ahuja

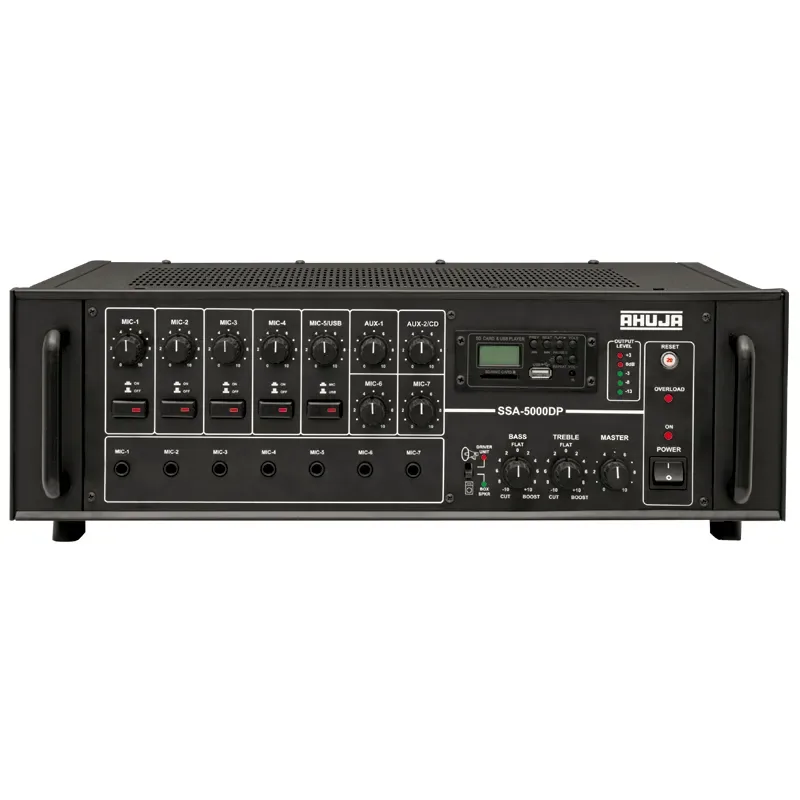

The Ahuja SSA-5000DP is a 500W high wattage PA mixer amplifier. Built-in MP3 player with remote control for USB, SD/MMC card reader.
It has box speaker/driver unit selector switch. Bass boost defeated at driver unit position for safer operation of driver units.
| Power Output | 750W Max., 500W RMS at 10% THD 450W RMS at 5% THD, 415W RMS at 2% THD |
|---|---|
| Output Regulation | ≤ 2 dB, no load to full load at 1kHz |
| Input Channels | 7 × Mic 0.8mV/4.7kΩ, 2 × Aux 100mV/470 kΩ,1 × CD 200mV/50 kΩ, 1 × Line 1V/50kΩ |
| Frequency Response | 50-15,000Hz ±3dB |
| Signal to Noise Ratio | 60dB |
| Tone Controls | Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz |
| Output | Preamp 200mV/600Ω, Line 1V/1kΩ |
| Speaker Output | 4Ω, 8Ω, 70V & 100V |
| Digital Player | MP3 Player with USB, SD and MMC Card Reader |
| Power Supply | AC: 220-240V 50/60Hz DC: 36V (3×12V Car Battery) |
| Power Consumption | AC: 1000VA DC: 8A |
| Dimensions | W510 × H172 × D385 mm |
| Weight | 27.0kg |
The SSA-5000DP is an Ahuja high wattage PA mixer amplifier in the SSA Series rated 500 WATTS. Available from Mansukhlal Sales Corp, an authorized dealer.
Preamplifier and Line Output for connecting to a Booster Amplifier; Line Input for connecting the output from any external mixer or another amplifier; Resettable circuit breaker for protection against overload and short circuit; Instant transfer to DC power (Car Battery) if AC power fails.
The SSA-5000DP output regulation is ≤ 2 dB, no load to full load at 1kHz.
The SSA-5000DP input channels is 7 × Mic 0.8mV/4.7kΩ, 2 × Aux 100mV/470 kΩ,1 × CD 200mV/50 kΩ, 1 × Line 1V/50kΩ.
The SSA-5000DP frequency response is 50-15,000Hz ±3dB.
The SSA-5000DP signal to noise ratio is 60dB.
The SSA-5000DP tone controls is Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz.
