Ahuja

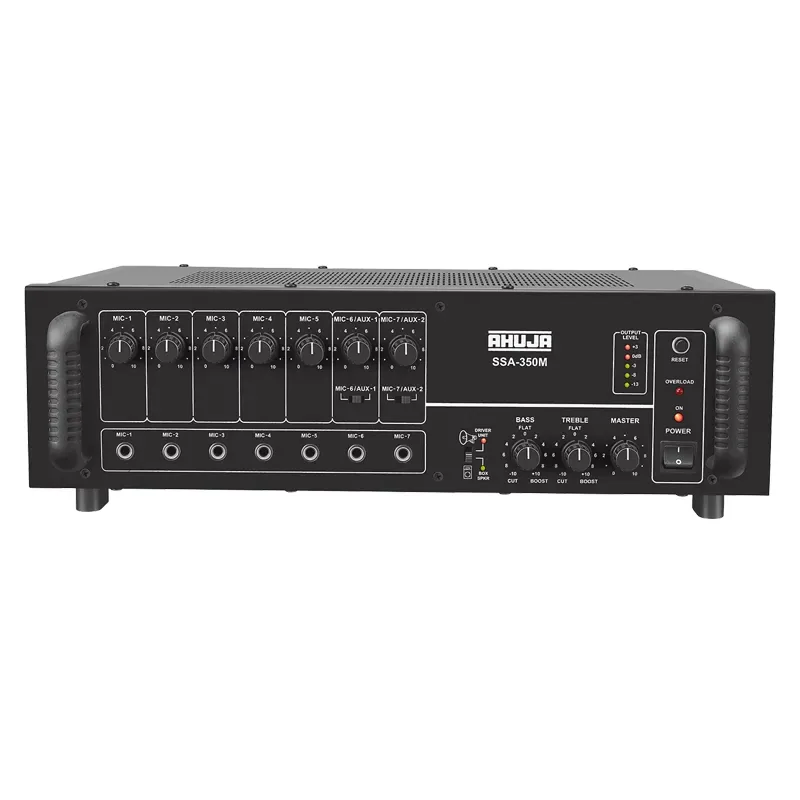

The Ahuja SSA-350M PA Mixer Amplifier is a PA mixer amplifier (350 Watts) from Ahuja for commercial PA, announcements, worship venues, schools, and installations. Built-in mic/line mixing with 70V and 100V speaker outputs.
Supports AC mains with instant DC fallback on car battery.
| Power Output | 450W Max., 350W RMS at 10% THD, 320W RMS at 5% THD, 300W RMS at 2% THD |
|---|---|
| Output Regulation | ≤ 2 dB, no load to full load at 1kHz |
| Input Channels | 7 × Mic 0.8mV/4.7kΩ, 1 × Aux 100mV/470kΩ, 1 × Aux 200mV/470kΩ, 1 × Line 1V/50kΩ |
| Frequency Response | 50-15,000Hz ±3dB |
| Signal to Noise Ratio | 60dB |
| Tone Controls | Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz |
| Outputs | Preamp 200mV/600Ω, Line 1V/1kΩ |
| Speaker Outputs | 4Ω, 8Ω, 70V & 100V |
| Power Supply | AC: 220-240V 50/60Hz DC: 36V (3 × 12V Car Battery) |
| Power Consumption | AC: 660VA DC: 6A |
| Dimensions | W480 × H155 × D360 mm |
| Weight | 18.90kg |
The SSA-350M is an Ahuja high wattage PA mixer amplifier in the SSA Series rated 350 WATTS. The Ahuja SSA-350M PA Mixer Amplifier is a PA mixer amplifier (350 Watts) from Ahuja for commercial PA, announcements, worship venues, schools, and installations. Available from Mansukhlal Sales Corp, an authorized dealer.
AC & 36V DC Operation; 7 Mic & 2 Aux Inputs; Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme; Line Input for connecting the output from any external PA mixer or permitting SSA-350M to be used as a Booster Power Amplifier; Resettable circuit breaker for protection against overload and short circuit. Instant transfer to DC power (Car Battery) if AC power fails; Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.
The SSA-350M output regulation is ≤ 2 dB, no load to full load at 1kHz.
The SSA-350M input channels is 7 × Mic 0.8mV/4.7kΩ, 1 × Aux 100mV/470kΩ, 1 × Aux 200mV/470kΩ, 1 × Line 1V/50kΩ.
The SSA-350M frequency response is 50-15,000Hz ±3dB.
The SSA-350M signal to noise ratio is 60dB.
The SSA-350M tone controls is Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz.
