Ahuja
SRX-510
- Power
- 400 WATTS
- Series
- SRX Series
- Category
- Speakers
- Category
- Passive Speakers

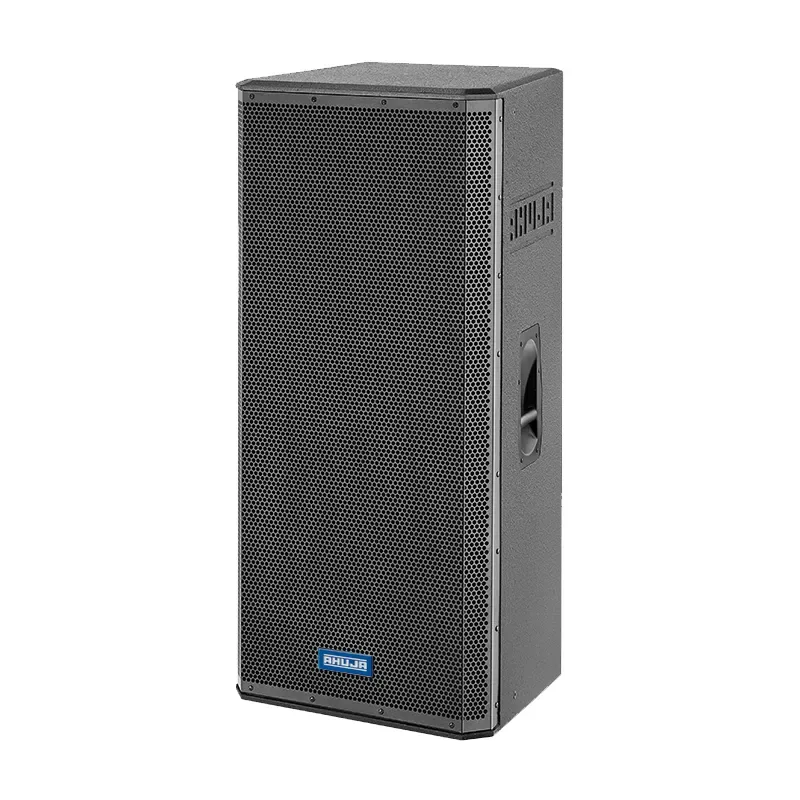

The Ahuja SRX-510 is a 400W PA speaker system with 2×15" LF woofer and dynamic horn. Professional 2-Way Loudspeaker with long throw and unmatched intelligibility of sound.
It consists of two 38.1cm (15”) full range dual cone speakers and a High frequency compression driver.
Features
- Professional 2-Way Loudspeaker with long throw and unmatched intelligibility of sound.
- It consists of two 38.1cm (15”) full range dual cone speakers and a High frequency compression driver.
- The speaker system is housed in an acoustically treated Bass Reflex Trapezoidal painted enclosure.
- Fitted with heavy-duty handles and a strong steel grille.
- Ideal for both indoor and outdoor sound reinforcement applications.
- Specially designed for Auditoriums and DJs.
Specifications, Q&A and videos
| Power Rating | 400W RMS/800W Programme |
|---|---|
| Configuration | Two Way |
| Frequency Response | 50-20,000Hz |
| Low Frequency Speaker | 2 × 381 mm (15”), Ø50.8 mm (2.0”) Voice Coil |
| High Frequency Unit | Dynamic Horn, 101.6 mm (4”) × 254 mm (10”) |
| SPL at (1W/1m) | 101dB |
| Max. Rated SPL | 127dB |
| Nominal Impedance | 8Ω |
| Crossover Frequency | 6kHz |
| Port | Free Flow Flared |
| Input Connectors | 2 Nos. of Speakon Sockets |
| Dimensions | W510 × H1135 × D505 mm |
| Weight | 52.00kg |
The SRX-510 is an Ahuja PA speaker system in the SRX Series rated 400 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Professional 2-Way Loudspeaker with long throw and unmatched intelligibility of sound; It consists of two 38.1cm (15”) full range dual cone speakers and a High frequency compression driver; The speaker system is housed in an acoustically treated Bass Reflex Trapezoidal painted enclosure; Fitted with heavy-duty handles and a strong steel grille; Ideal for both indoor and outdoor sound reinforcement applications; Specially designed for Auditoriums and DJs.
The SRX-510 configuration is Two Way.
The SRX-510 frequency response is 50-20,000Hz.
The SRX-510 low frequency speaker is 2 × 381 mm (15”), Ø50.8 mm (2.0”) Voice Coil.
The SRX-510 high frequency unit is Dynamic Horn, 101.6 mm (4”) × 254 mm (10”).
The SRX-510 spl at (1w/1m) is 101dB.
