Ahuja
SRX-220
- Power
- 200 WATTS
- Series
- SRX Series
- Category
- Speakers
- Category
- Passive Speakers

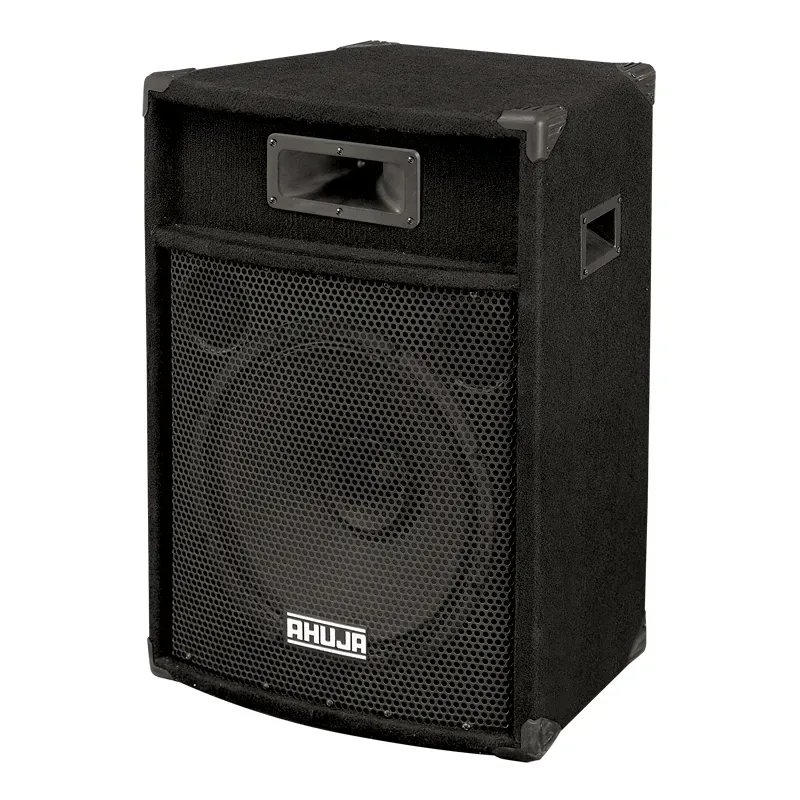

The Ahuja SRX-220 is a 200W PA speaker system with 15" LF woofer and HF tweeter.
Professional 2-Way Loudspeaker with high efficiency, long throw and clean undistorted sound for both speech and music.
Features
- Professional 2-Way Loudspeaker with high efficiency, long throw & clean undistorted sound for both speech & music.
- It consists of one 38.1 cm (15”) Full Range Dual Cone Speaker and a Piezo Horn Tweeter.
- The system is housed in an acoustically treated Bass Reflex Trapezoidal enclosure made of 18 mm board, and carpet covered.
- Stand mount adaptor is provided at the bottom.
Specifications, Q&A and videos
| Input Power | 200W RMS |
|---|---|
| Configuration | Two Way |
| Frequency Response | 50-20,000Hz |
| Low Frequency Speaker | 1 × 381 mm (15”), Ø 50.8 mm (2.0”) Voice Coil |
| High Frequency Unit | 1 × Piezo Horn Tweeter 76.2 mm (3”) × 152.4 mm (6”) |
| Spl at (1W/1m) | 98dB |
| Max. Rated SPL | 121dB |
| Nominal Impedance | 8Ω |
| Port | Free Flow Flared |
| Input Connectors | 6.35 mm (1/4”) Phone Jack + Terminal Strip |
| Dimensions | W490 × H680 × D415mm |
| Weight | 26.00kg |
The SRX-220 is an Ahuja PA speaker system in the SRX Series rated 200 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Professional 2-Way Loudspeaker with high efficiency, long throw & clean undistorted sound for both speech & music; It consists of one 38.1 cm (15”) Full Range Dual Cone Speaker and a Piezo Horn Tweeter; The system is housed in an acoustically treated Bass Reflex Trapezoidal enclosure made of 18 mm board, and carpet covered; Stand mount adaptor is provided at the bottom.
The SRX-220 input power is 200W RMS.
The SRX-220 configuration is Two Way.
The SRX-220 frequency response is 50-20,000Hz.
The SRX-220 low frequency speaker is 1 × 381 mm (15”), Ø 50.8 mm (2.0”) Voice Coil.
The SRX-220 high frequency unit is 1 × Piezo Horn Tweeter 76.2 mm (3”) × 152.4 mm (6”).
