Ahuja
SRX-120DXM
- Power
- 100 WATTS
- Series
- SRX Series
- Category
- Speakers
- Category
- Passive Speakers

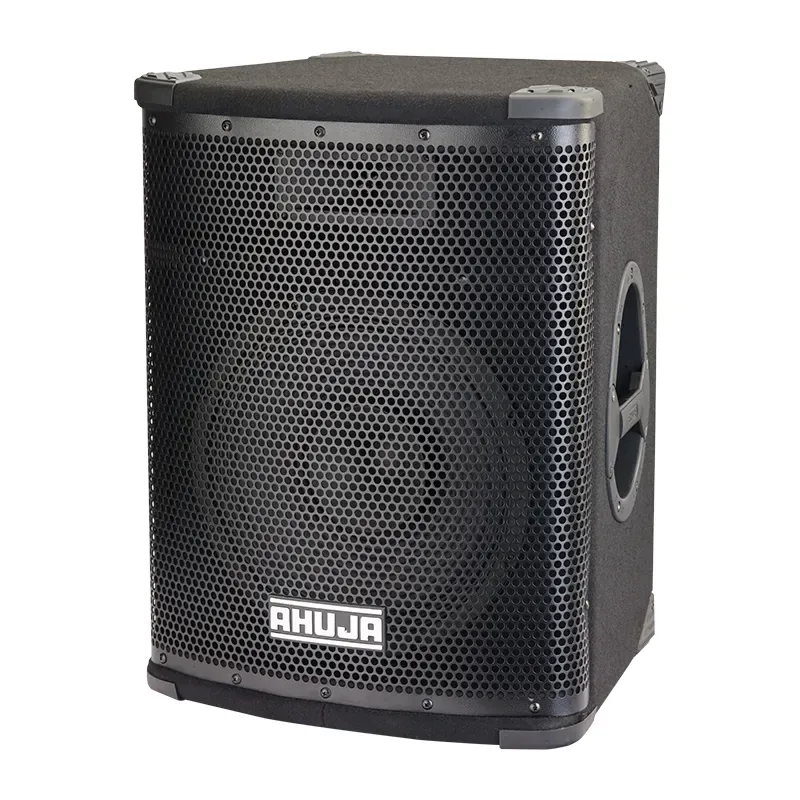

The Ahuja SRX-120DXM is a 100W PA speaker system. It uses an a compact superior quality speaker system comprising of a single 30.48 cm (12") full range dual cone speaker and a piezo horn tweeter.
The speakers are housed in a trapezoidal closed box enclosure made of 18 mm board, and carpet covered.
Features
- A compact superior quality speaker system comprising of a single 30.48 cm (12") Full Range Dual Cone speaker and a Piezo Horn Tweeter.
- The speakers are housed in a trapezoidal closed box enclosure made of 18 mm board, and carpet covered.
- Stand mount adaptor is provided at the bottom.
Specifications, Q&A and videos
| Input Power | 100W RMS |
|---|---|
| Configuration | Two Way |
| Frequency Response | 55-20,000Hz |
| Low Frequency Speaker | 1 × 304.8 mm (12”), Ø38.1 mm (1.5”) Voice Coil |
| High Frequency Unit | 1 × Piezo Horn Tweeter 50.8 mm (2”) × 127 mm (5”) |
| SPL at (1W/1m) | 97dB |
| Max. Rated SPL | 117dB |
| Nominal Impedance | 8Ω |
| Port | Sealed Enclosure |
| Input Connectors | 6.35 mm (1/4”) Phone Jack + Terminal Strip |
| Dimensions | W410 × H530 × D380 mm |
| Weight | 15.40kg |
The SRX-120DXM is an Ahuja PA speaker system in the SRX Series rated 100 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
A compact superior quality speaker system comprising of a single 30.48 cm (12") Full Range Dual Cone speaker and a Piezo Horn Tweeter; The speakers are housed in a trapezoidal closed box enclosure made of 18 mm board, and carpet covered; Stand mount adaptor is provided at the bottom.
The SRX-120DXM input power is 100W RMS.
The SRX-120DXM configuration is Two Way.
The SRX-120DXM frequency response is 55-20,000Hz.
The SRX-120DXM low frequency speaker is 1 × 304.8 mm (12”), Ø38.1 mm (1.5”) Voice Coil.
The SRX-120DXM high frequency unit is 1 × Piezo Horn Tweeter 50.8 mm (2”) × 127 mm (5”).
