Ahuja
SRX-50DX
- Power
- 50 WATTS
- Series
- SRX Series
- Category
- Speakers
- Category
- Passive Speakers

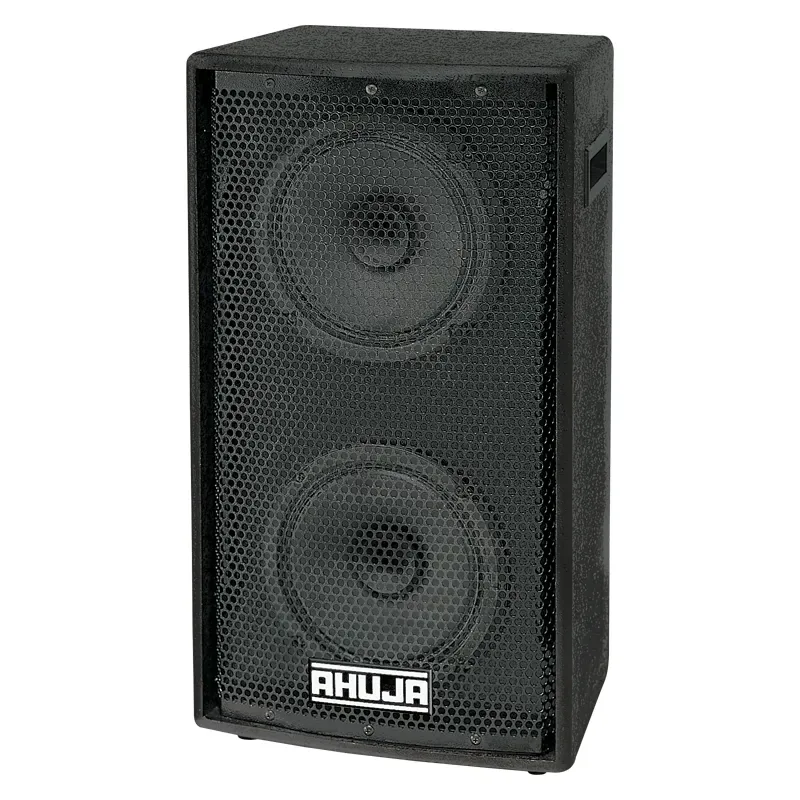

The Ahuja SRX-50DX is a 50W PA speaker system with 2×8" LF woofer.
A compact general purpose Loudspeaker column using two Full Range Dual Cone 20.32 cm (8") speakers, reproducing a clean undistorted sound for both speech and music.
Features
- A compact general purpose Loudspeaker column using two Full Range Dual Cone 20.32 cm (8") speakers, reproducing a clean undistorted sound for both speech and music.
- The system is housed in a Rugged Closed Box Enclosure made of 12 mm medium density fibre board, and is carpet covered.
- SRX-50DX has nominal impedance of 16Ω, SRX-50XT operates on 100V line with three power taps selectable through a rotary switch.
Specifications, Q&A and videos
| Input Power | 50W Max. |
|---|---|
| Power Taps | 30/20/10W at 100V |
| Configuration | One Way |
| Frequency Response | 55-16,000Hz |
| Low Frequency Speaker | 2 x 203.2 mm (8”), Ø19.05 mm (0.75”) Voice Coil |
| SPL at (1W/1m) | 96dB |
| Max. Rated SPL | 113dB |
| Nominal Impedance | 16Ω / 333/500/1kΩ |
| Port | Sealed Enclosure |
| Input Connectors | Two nos. of Terminal Strip in parallel |
| Dimensions | W325 × H585 × D240 mm / W325 × H605 × D240 mm |
| Weight | 9.20kg / 9.60kg |
The SRX-50DX is an Ahuja PA speaker system in the SRX Series rated 50 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
A compact general purpose Loudspeaker column using two Full Range Dual Cone 20.32 cm (8") speakers, reproducing a clean undistorted sound for both speech and music; The system is housed in a Rugged Closed Box Enclosure made of 12 mm medium density fibre board, and is carpet covered; SRX-50DX has nominal impedance of 16Ω, SRX-50XT operates on 100V line with three power taps selectable through a rotary switch.
The SRX-50DX input power is 50W Max..
The SRX-50DX power taps is 30/20/10W at 100V.
The SRX-50DX configuration is One Way.
The SRX-50DX frequency response is 55-16,000Hz.
The SRX-50DX low frequency speaker is 2 x 203.2 mm (8”), Ø19.05 mm (0.75”) Voice Coil.
