Ahuja
SRM-220
- Power
- 200 WATTS
- Series
- SRM Stage Monitors
- Category
- Speakers
- Category
- Stage Monitors

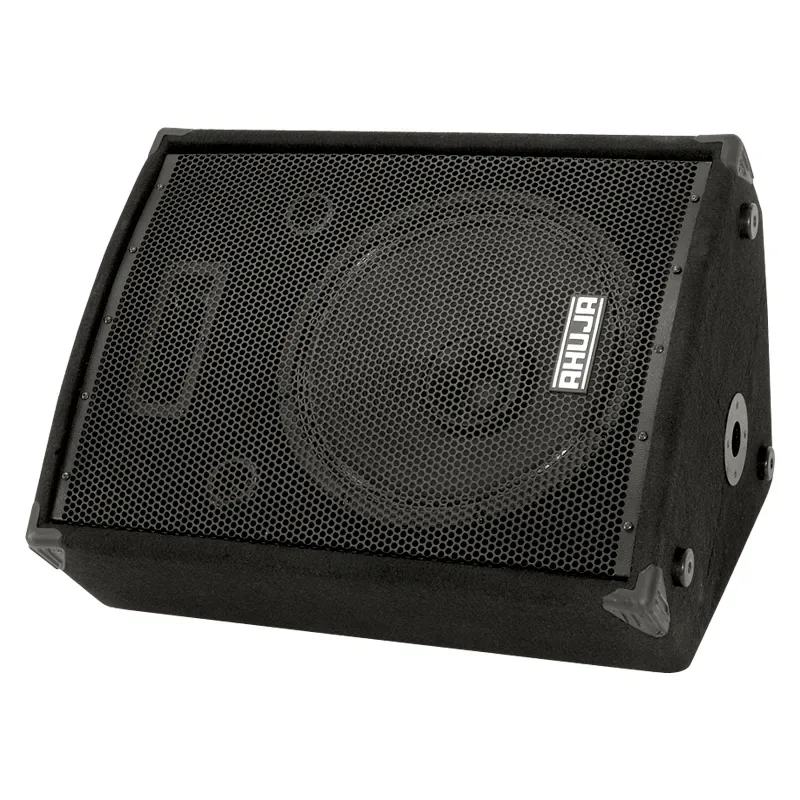

The Ahuja SRM-220 is a 200W PA speaker system with 15" LF woofer and HF tweeter.
Compact 2-Way Stage Monitor Loudspeaker comprising of a single 38.1 cm (15”) Full Range Dual Cone Speaker and a Piezo Horn Tweeter.
Features
- Compact 2-Way Stage Monitor Loudspeaker comprising of a single 38.1 cm (15”) Full Range Dual Cone Speaker and a Piezo Horn Tweeter.
- The unique multi functional trapezoidal design of the enclosure for effective floor monitoring in various indoor & outdoor applications.
- The system is housed in an acoustically treated Bass Reflex enclosure made of 18 mm board and carpet covered.
- An On/Off switch for the piezo speaker is provided to limit extended HF, if desired.
- Stand mount adaptor is provided at the bottom.
Specifications, Q&A and videos
| Input Power | 200W RMS |
|---|---|
| Configuration | Two Way |
| Frequency Response | 55-20,000Hz |
| Low Frequency Speaker | 1 × 381mm (15”), Ø50.8mm (2.0”) Voice Coil |
| High Frequency Unit | 1 × Piezo Horn Tweeter 76.2mm (3”) × 152.4 (6”) |
| SPL at (1W/1m) | 98dB |
| Max. Rated SPL | 121dB |
| Nominal Impedance | 8Ω |
| Port | Free Flow Flared |
| Input Connectors | 1/4” Phone Jack + Terminal Strip |
| Dimensions | W520 × H690 × D420mm |
| Weight | 25.0kg |
The SRM-220 is an Ahuja PA speaker system in the SRM Stage Monitors rated 200 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Compact 2-Way Stage Monitor Loudspeaker comprising of a single 38.1 cm (15”) Full Range Dual Cone Speaker and a Piezo Horn Tweeter; The unique multi functional trapezoidal design of the enclosure for effective floor monitoring in various indoor & outdoor applications; The system is housed in an acoustically treated Bass Reflex enclosure made of 18 mm board and carpet covered; An On/Off switch for the piezo speaker is provided to limit extended HF, if desired; Stand mount adaptor is provided at the bottom.
The SRM-220 input power is 200W RMS.
The SRM-220 configuration is Two Way.
The SRM-220 frequency response is 55-20,000Hz.
The SRM-220 low frequency speaker is 1 × 381mm (15”), Ø50.8mm (2.0”) Voice Coil.
The SRM-220 high frequency unit is 1 × Piezo Horn Tweeter 76.2mm (3”) × 152.4 (6”).
