SM Professional
SPS 8
- Channels
- 8 Channels
- Category
- Power Supply
- Category
- Servo Stabilizers

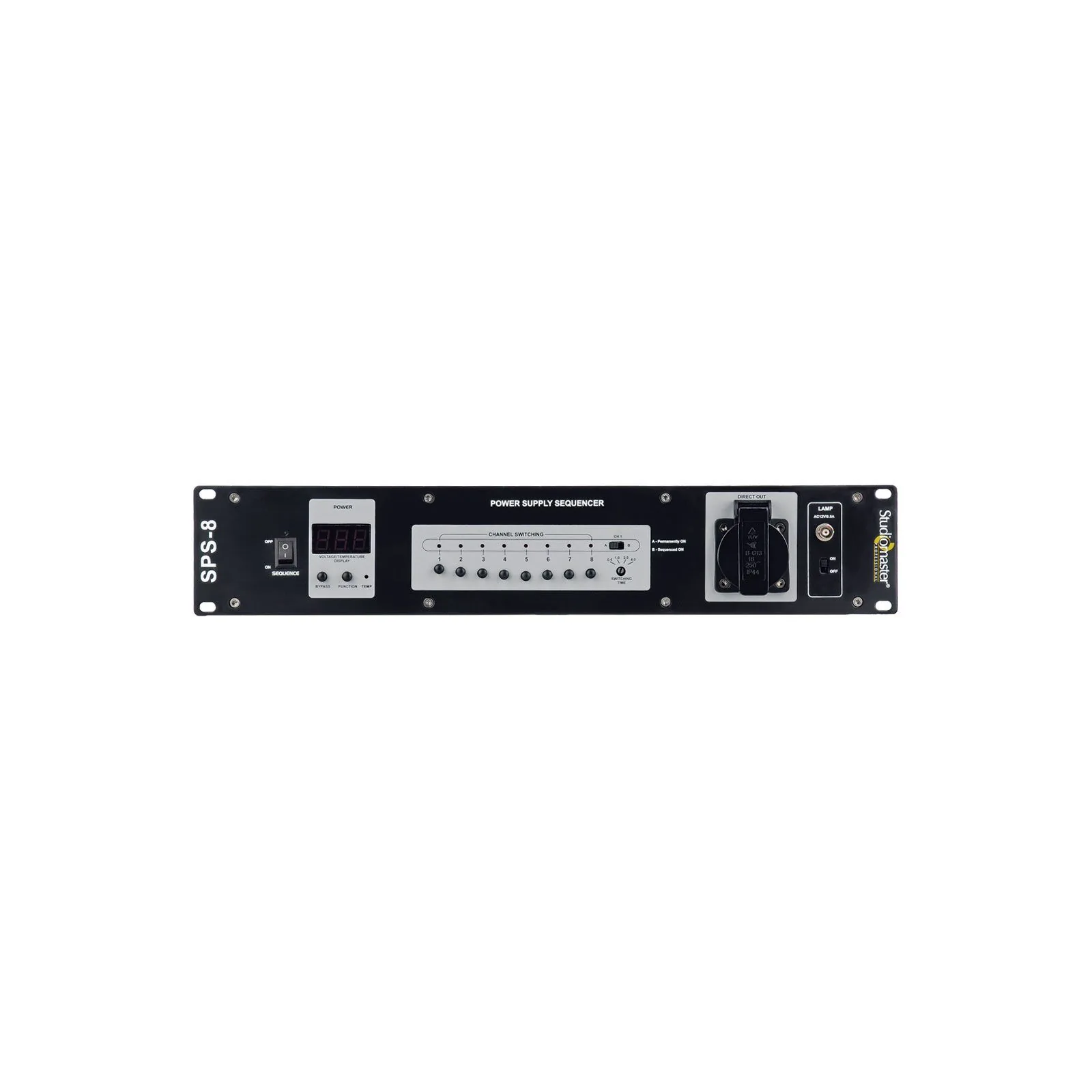

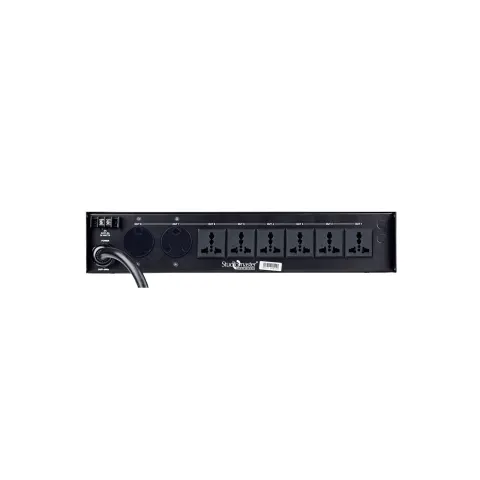

The SM Professional SPS-8 is a 8 Channel Power Sequencer, that supplies power to equipment in sequence, thereby offering maximum safety & utmost ease in operation, making it ideal for range of sound reinforcement applications.
Features
- Provides Powering On & Off Sequencing.
- 2 x 25 Ampere Output Channels for high power equipment like amplifiers, powered speakers etc.
- 2 Operating Modes: Permanent ON & Sequenced On.
- 6 x 6 Ampere Output Channels for other lower power equipment like Mixers, CD Players, processors etc.
- Provides +24V DC Supply to connect auxiliary equipments.
- Surge & Spike Protection.
- Selectable Sequence Delay time from 0.5 to 4 Seconds.
- BNC Lamp Connector On Front Panel.
- LED Display for AC voltage & ambient temperature.
Specifications, Q&A and videos
| Output Current | 6 x 6A AC & 2 x 25A AC (RMS) |
|---|---|
| Output Voltage | Max. 275Vac |
| Output Power | 1440 VA ea. (CH 1 -6 ) & 6000VA ea. (CH 7 - 8) |
| Required AC Mains | 240VAC (50Hz) |
| Dissipation Power | 20W |
| Unit Dimensions (W x D x H) mm | 483 x 347 x 89 |
| Net Weight | 8.80 Kg |
The SPS 8 is an SM Professional Power Supply. The SM Professional SPS-8 is a 8 Channel Power Sequencer, that supplies power to equipment in sequence, thereby offering maximum safety & utmost ease in operation, making it ideal. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Provides Powering On & Off Sequencing; 2 x 25 Ampere Output Channels for high power equipment like amplifiers, powered speakers etc; 2 Operating Modes: Permanent ON & Sequenced On; 6 x 6 Ampere Output Channels for other lower power equipment like Mixers, CD Players, processors etc; Provides +24V DC Supply to connect auxiliary equipments; Surge & Spike Protection.
The SPS 8 output current is 6 x 6A AC & 2 x 25A AC (RMS).
The SPS 8 output voltage is Max. 275Vac.
The SPS 8 output power is 1440 VA ea. (CH 1 -6 ) & 6000VA ea. (CH 7 - 8).
The SPS 8 required ac mains is 240VAC (50Hz).
The SPS 8 dissipation power is 20W.
