SM Professional
MVC 12000
- Power
- 12000 WATTS
- Series
- MVC Series
- Category
- Power Supply
- Category
- Servo Stabilizers

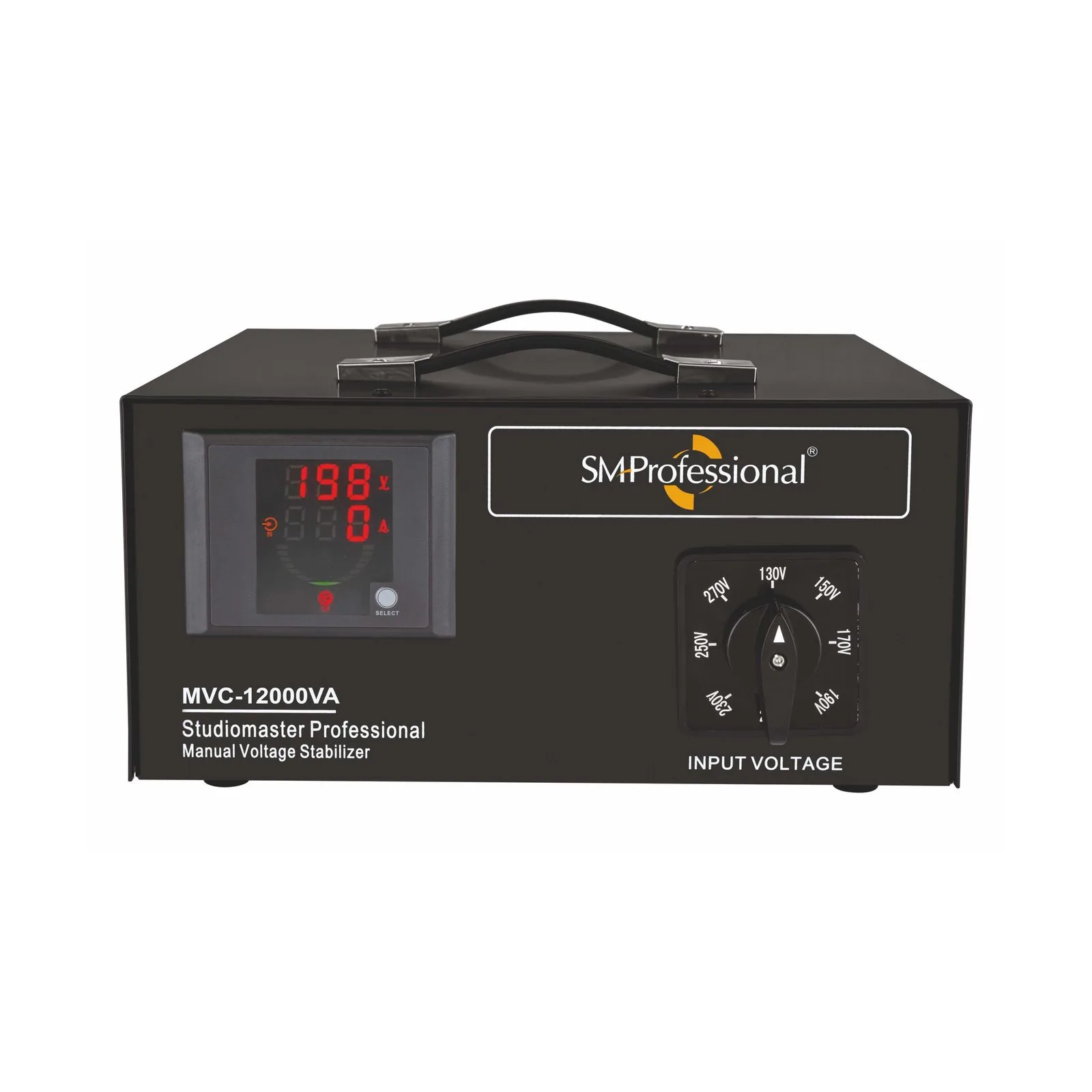

The SM Professional MVC 12000 is high-endurance 12KVA/12000W professional manual voltage stablizer for high power loads, specially designed for audio equipment.
Features
- High-endurance 12KVA/12000W professional manual stabilizers specially designed for audio equipment.
- Wide input voltage range and powerful load performance for Indian conditions.
- Protection features: over and under voltage, overload and short-circuit.
- Quick stabilization time.
- No waveform distortion.
- Low-noise operation.
- High lifespan and minimal servicing cycle.
- Accurate voltage control.
- Generator compatible.
- Rugged road-ready metal housing.
- Display meter indications: input and output voltage (via selection switch), output current, over and under voltage, load ratio, overload buzzer and power ON delay.
- Ships in a thick abuse-resistant wooden box for easy and safe transportation.
Specifications, Q&A and videos
| Series | MVC Series |
|---|---|
| VA Rating | 12000VA |
| Input Voltage | Single Phase AC 130V-270V |
| Output Voltage | 230V AC (±10V) |
| Frequency | 50Hz-60Hz |
| Rated Current | 45A |
| Over-Voltage Protection | 250V |
| Under-Voltage Protection | 170V |
| Delay Output | 6 Seconds |
| Working Temperature | -10°C to +50°C |
| Relative Humidity | ≤90% |
| Waveform Distortion | No Additional Distortion |
| Efficiency | >95% |
| Withstanding Voltage | 1000V |
| Dimension (W x D X H) mm | 380 x 410 x 193 |
| Net Weight (Kg) | 20.2 |
The MVC 12000 is an SM Professional PA product in the MVC Series. The SM Professional MVC 12000 is high-endurance 12KVA/12000W professional manual voltage stablizer for high power loads, specially designed for audio equipment. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
High-endurance 12KVA/12000W professional manual stabilizers specially designed for audio equipment; Wide input voltage range and powerful load performance for Indian conditions; Protection features: over and under voltage, overload and short-circuit; Quick stabilization time; No waveform distortion; Low-noise operation.
The MVC 12000 va rating is 12000VA.
The MVC 12000 input voltage is Single Phase AC 130V-270V.
The MVC 12000 output voltage is 230V AC (±10V).
The MVC 12000 frequency is 50Hz-60Hz.
The MVC 12000 rated current is 45A.
