SM Professional

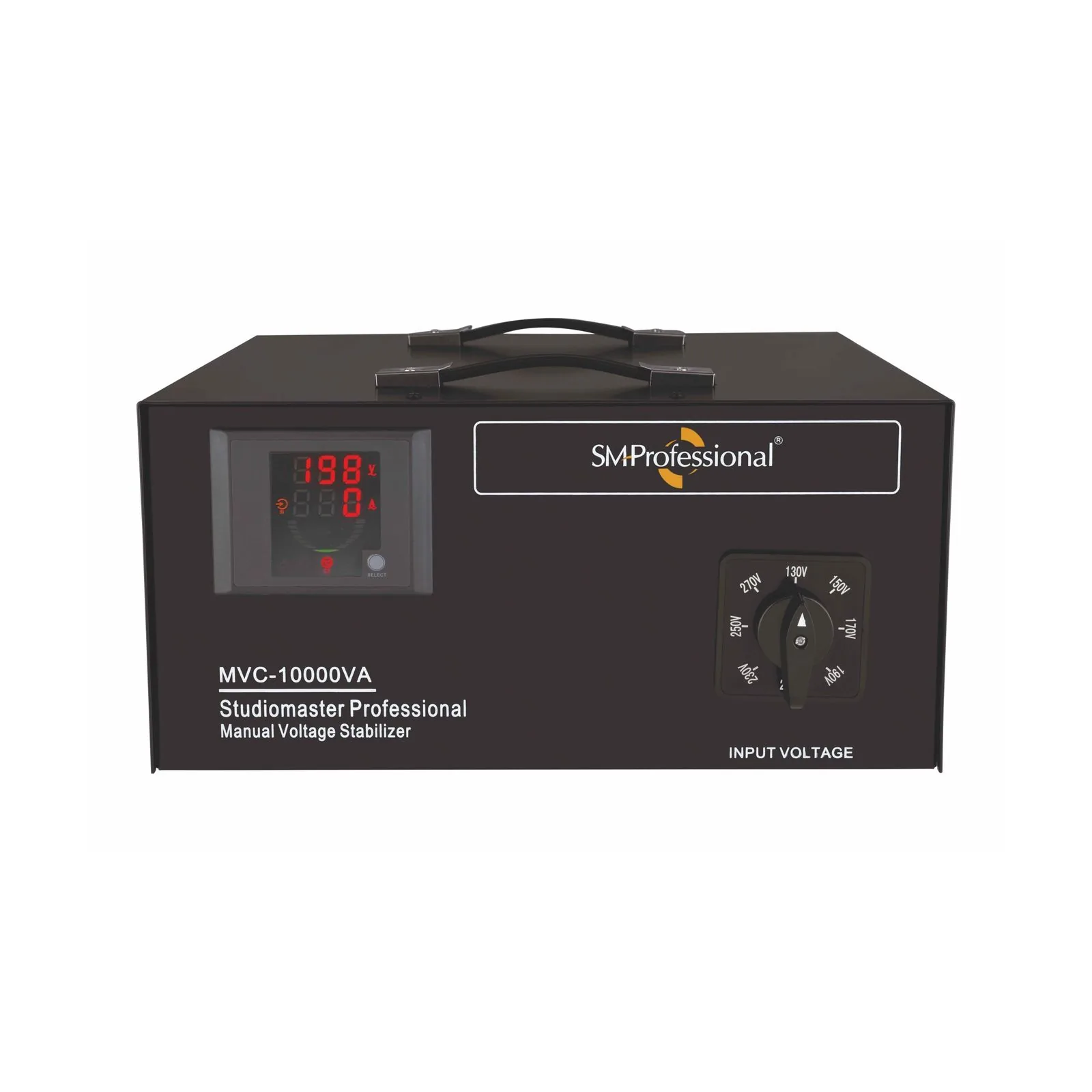

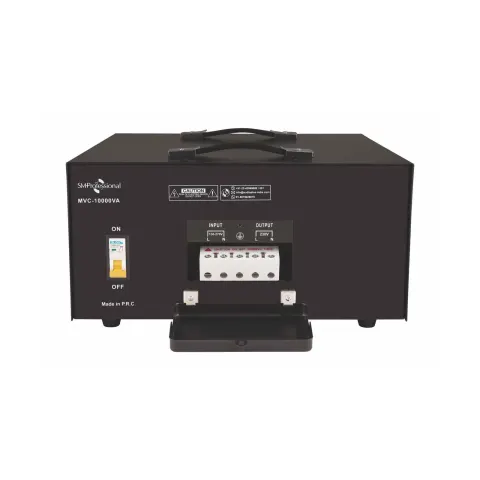

The SM Professional MVC 10000 is high-endurance 10KVA/10000W professional manual voltage stablizer for high power loads, specially designed for audio equipment.
| Series | MVC Series |
|---|---|
| VA Rating | 10000VA |
| Input Voltage | Single Phase AC 130V-270V |
| Output Voltage | 230V AC (±10V) |
| Frequency | 50Hz-60Hz |
| Rated Current | 45A |
| Over-Voltage Protection | 250V |
| Under-Voltage Protection | 170V |
| Delay Output | 6 Seconds |
| Working Temperature | -10°C to +50°C |
| Relative Humidity | ≤90% |
| Waveform Distortion | No Additional Distortion |
| Efficiency | >95% |
| Withstanding Voltage | 1000V |
| Dimension (W x D X H) mm | 375 x 382 x 183 |
| Net Weight (Kg) | 18.3 |
The MVC 10000 is an SM Professional PA product in the MVC Series rated 10000 WATTS. The SM Professional MVC 10000 is high-endurance 10KVA/10000W professional manual voltage stablizer for high power loads, specially designed for audio equipment. Available from Mansukhlal Sales Corp, an authorized dealer.
100 UHF selectable channels; High-endurance 10KVA/10000W professional manual stabilizers specially designed for audio equipment; Wide input voltage range and powerful load performance for Indian conditions; Protection features: over and under voltage, overload and short-circuit; Quick stabilization time; No waveform distortion.
The MVC 10000 va rating is 10000VA.
The MVC 10000 input voltage is Single Phase AC 130V-270V.
The MVC 10000 output voltage is 230V AC (±10V).
The MVC 10000 frequency is 50Hz-60Hz.
The MVC 10000 rated current is 45A.
