Ahuja
SMS-450P
- Power
- 400 WATTS
- Series
- SMS Speakers
- Category
- Speakers
- Category
- Stage Monitors

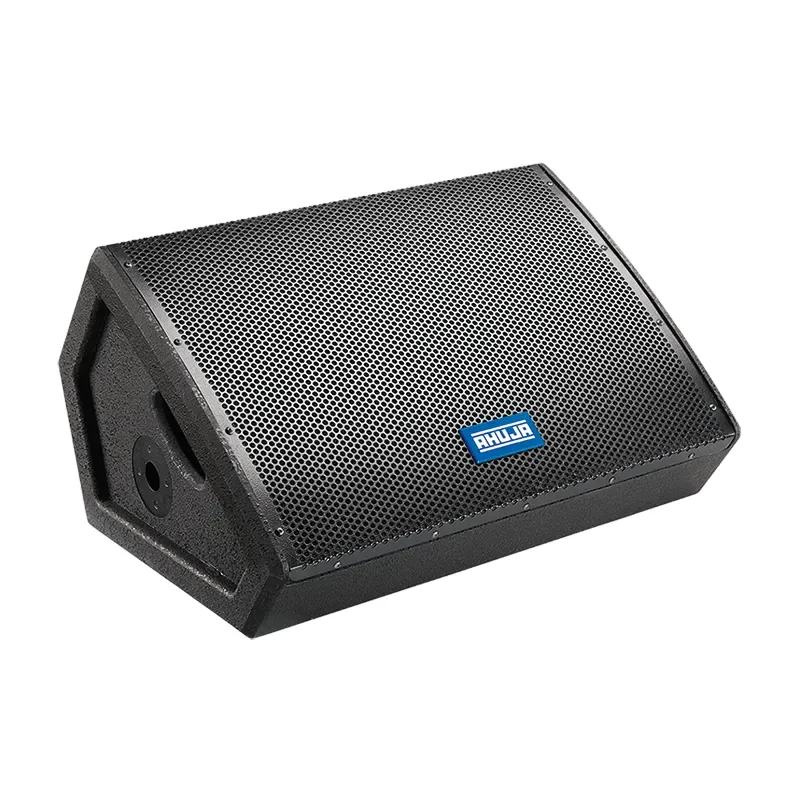

The Ahuja SMS-450P is a 400W PA active loudspeaker - stage monitor with 15" LF woofer and dynamic horn. It has a balanced mic/line input.
A link output can feed another SMS-450P or a recorder.
Features
- Professional 2-Way Active Stage Monitor Loudspeaker has built-in Bi-Amplifier for LF and HF driver separately. An optimally angled enclosure for effective floor monitoring in various indoor & outdoor applications. The system is housed in an acoustically treated Bass Reflex enclosure made of 18mm board in durable paint finish. Adaptor is provided at the bottom for stand mount applications. Heavy duty metal handles allow ease of mobility and transportation.
- 1 x Balanced Mic/Line Input selectable through a push switch.
- 1 x Line Input can be used for connecting balanced MONO signal through jack or unbalanced STEREO signal source through dual RCA.
- Balanced output to link another SMS-450P or for recording on a computer, record player.
- Switchable balanced output either as a Loop through output of Input-1 or a mix output of Input-1 and 2.
- 2-Way Speaker System: 38.1cm (15") LF Woofer (ø7.62cm (3.0") voice coil) + Dynamic Horn (ø4.44cm (1.75") voice coil).
Specifications, Q&A and videos
| Power Output (Bi-Amp) | LF: 350W RMS at 1% THD Class H, HF: 50W RMS at 1% THD Class AB |
|---|---|
| Output Regulation | Better than 0.5dB |
| Input Channels | INPUT-1: MIC 20mV/3kΩ balanced, LINE: 775mV/10kΩ balanced, INPUT-2: LINE (Jack) 250mV/20kΩ balanced, RCA: 250mV (L&R)/10kΩ |
| Frequency Response | 50-20,000Hz ±3dB |
| Crossover Frequency | 2.5kHz , Filter Slope 24dB per octave |
| Signal to Noise Ratio | 60dB |
| Tone Controls | Bass: ±5dB at 100Hz, Treble: ±5dB at 10kHz |
| Output | (a) Loop through (INPUT-1): 20mV or 775mV, (b) Mixed Output (1+2): 775mV/1kΩ |
| Protection | AC: Fuse 1x5A (T 5A L) DC: Fuse 2x8A (T 8A L) |
| Power Supply | AC: 220-240V 50/60Hz |
| AC Power Consumption | 500VA |
| Dimensions | W700 × H400 × D525mm |
| Weight | 35.50kg |
The SMS-450P is an Ahuja PA active loudspeaker - stage monitor in the SMS Speakers. The Ahuja SMS-450P is a 400W PA active loudspeaker - stage monitor with 15" LF woofer and dynamic horn. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Professional 2-Way Active Stage Monitor Loudspeaker has built-in Bi-Amplifier for LF and HF driver separately. An optimally angled enclosure for effective floor monitoring in various indoor & outdoor applications. The system is housed in an acoustically treated Bass Reflex enclosure made of 18mm board in durable paint finish. Adaptor is provided at the bottom for stand mount applications. Heavy duty metal handles allow ease of mobility and transportation; 1 x Balanced Mic/Line Input selectable through a push switch; 1 x Line Input can be used for connecting balanced MONO signal through jack or unbalanced STEREO signal source through dual RCA; Balanced output to link another SMS-450P or for recording on a computer, record player; Switchable balanced output either as a Loop through output of Input-1 or a mix output of Input-1 and 2; 2-Way Speaker System: 38.1cm (15") LF Woofer (ø7.62cm (3.0") voice coil) + Dynamic Horn (ø4.44cm (1.75") voice coil).
The SMS-450P power output (bi-amp) is LF: 350W RMS at 1% THD Class H, HF: 50W RMS at 1% THD Class AB.
The SMS-450P output regulation is Better than 0.5dB.
The SMS-450P input channels is INPUT-1: MIC 20mV/3kΩ balanced, LINE: 775mV/10kΩ balanced, INPUT-2: LINE (Jack) 250mV/20kΩ balanced, RCA: 250mV (L&R)/10kΩ.
The SMS-450P frequency response is 50-20,000Hz ±3dB.
The SMS-450P crossover frequency is 2.5kHz , Filter Slope 24dB per octave.
