SM Professional
SHF 0106
- Power
- 120 WATTS
- Series
- SHF Series
- Category
- Transducers
- Category
- PA Drivers
The SM Professional S-SERIES Components are made from high quality parts which ensure excellent sound reproduction.
The transducers are built to last for years, without losing their sonic qualities.
Features

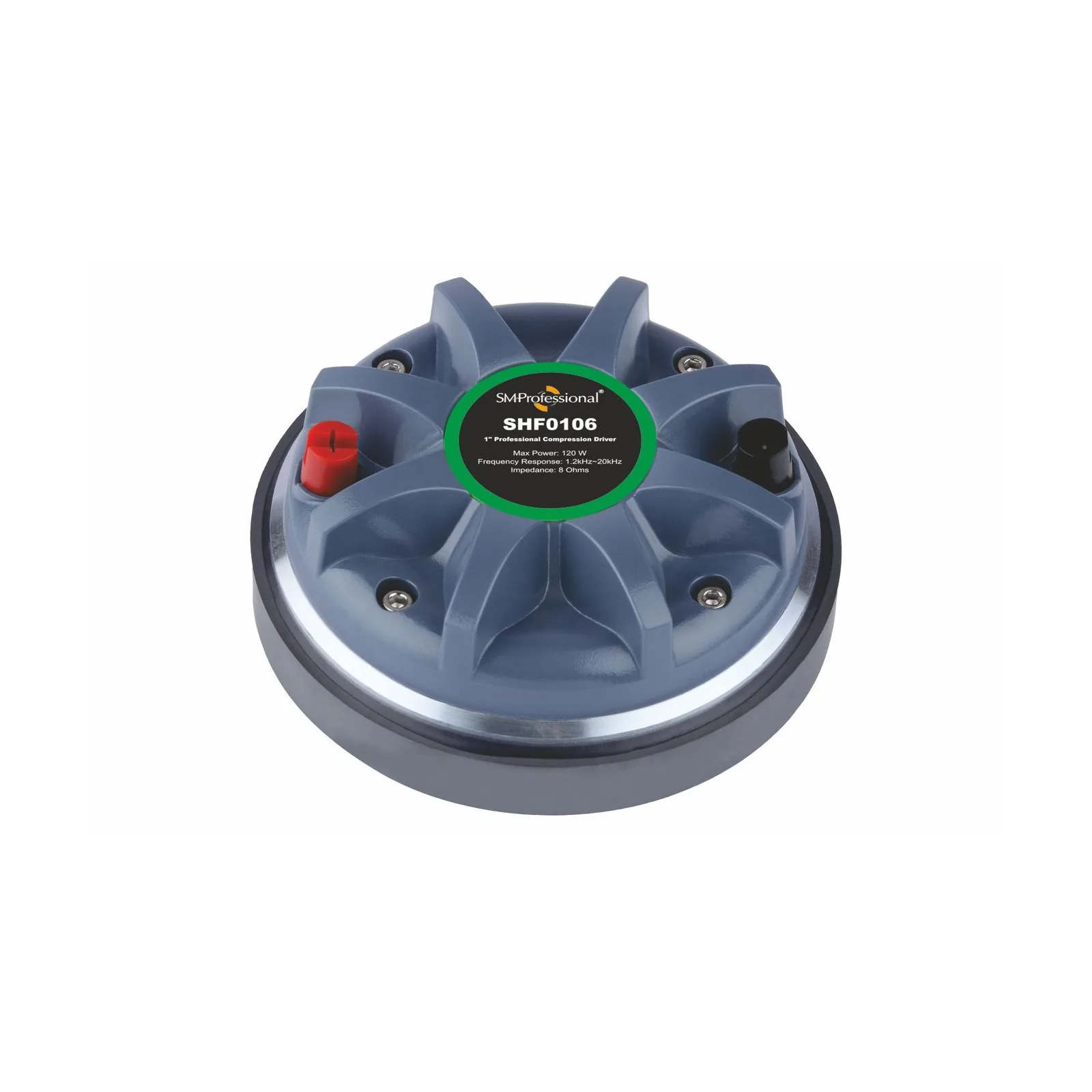

- The SHF 0106 is a 1 inch (25.4mm) diameter extended High frequency transducer.
- High Quality CCAR Voice Coil.
- Designed to provide superlative Soft power high and high-mid, suitable for all systems demanding the best possible high frequency response.
- Suitable for Compact 2-way systems, multiple-way medium throw systems
- Very good in combination with any metal 1” throat bolt-on horns.
Specifications, Q&A and videos
| Series | S Series |
|---|---|
| Product Type | HF |
| Power Output (RMS / Peak) Watts | 60 / 120 |
| Frequency Response (Hz) | 1200-20000 |
| Impedance (Ω) | 8 |
| Nominal Diameter | 25.4/1 |
| Voice Coil Diameter(mm/Inch) | 44.4/1.75 |
| Voice Coil Material | Titanium |
| Resonance Frequency Fs (Hz) | 119 |
| Dc Resistance Re (Ω) | 6 |
| Mechanical Q factor Qms | 7.02 |
| Electrical factor Qes | 1.53 |
| Total Q factor Qts | 1.23 |
| Net Weight (Kg) | 1.44 |
The SHF 0106 is an SM Professional PA product in the SHF Series rated 120 WATTS. The SM Professional S-SERIES Components are made from high quality parts which ensure excellent sound reproduction. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
The SHF 0106 is a 1 inch (25.4mm) diameter extended High frequency transducer; High Quality CCAR Voice Coil; Designed to provide superlative Soft power high and high-mid, suitable for all systems demanding the best possible high frequency response; Suitable for Compact 2-way systems, multiple-way medium throw systems; Very good in combination with any metal 1” throat bolt-on horns.
The SHF 0106 product type is HF.
The SHF 0106 power output (rms / peak) watts is 60 / 120.
The SHF 0106 frequency response (hz) is 1200-20000.
The SHF 0106 impedance (ω) is 8.
The SHF 0106 nominal diameter is 25.4/1.
