SM Professional

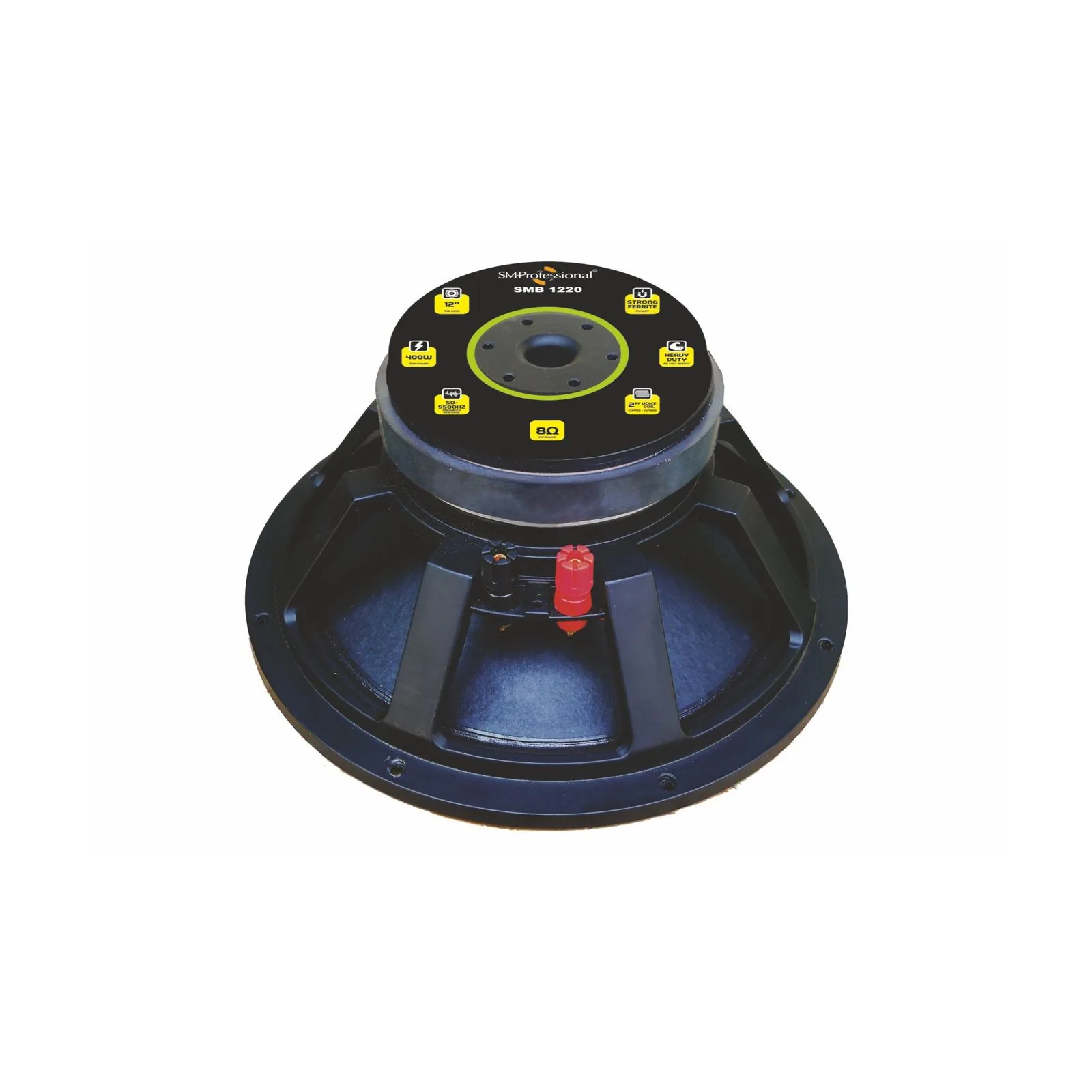

SMB 1220
- Power
- 400 WATTS
- Series
- SMB Series
- Category
- Transducers
- Category
- PA Drivers
The SM Professional S-SERIES Components are made from high quality parts which ensure excellent sound reproduction.
The transducers are built to last for years, without losing their sonic qualities.
Features
- High quality transducers with excellent sensitivity & excursion capabilities.
- Highly recommended for two-way & three-way systems where high power handling and punch are required
- Designed to be extremely rugged, robust & sturdy, making it perfect for a variety of sound reinforcement systems.
Specifications, Q&A and videos
| Series | S Series |
|---|---|
| Product Type | Mid-Bass |
| Power Output (RMS / Peak) Watts | 200/400 |
| Frequency Range (Hz) | 50-5500 |
| Impedance (Ω) | 8 |
| Sensitivity (1w @ 1m) dB | 97 |
| Nominal Diameter | 300/12 |
| Voice Coil Diameter(mm/Inch) | 50.5/2 |
| Voice Coil Material | Copper |
| Kind of Layer | Outside |
| Basket | Die-cast |
| Net Weight (Kgs.) | 5.2 |
The SMB 1220 is an SM Professional PA product in the SMB Series rated 400 WATTS. The SM Professional S-SERIES Components are made from high quality parts which ensure excellent sound reproduction. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
High quality transducers with excellent sensitivity & excursion capabilities; Highly recommended for two-way & three-way systems where high power handling and punch are required; Designed to be extremely rugged, robust & sturdy, making it perfect for a variety of sound reinforcement systems.
The SMB 1220 product type is Mid-Bass.
The SMB 1220 power output (rms / peak) watts is 200/400.
The SMB 1220 frequency range (hz) is 50-5500.
The SMB 1220 impedance (ω) is 8.
The SMB 1220 sensitivity (1w @ 1m) db is 97.
