SM Professional
SMB 1230
- Power
- 600 WATTS
- Series
- SMB Series
- Category
- Transducers
- Category
- PA Drivers

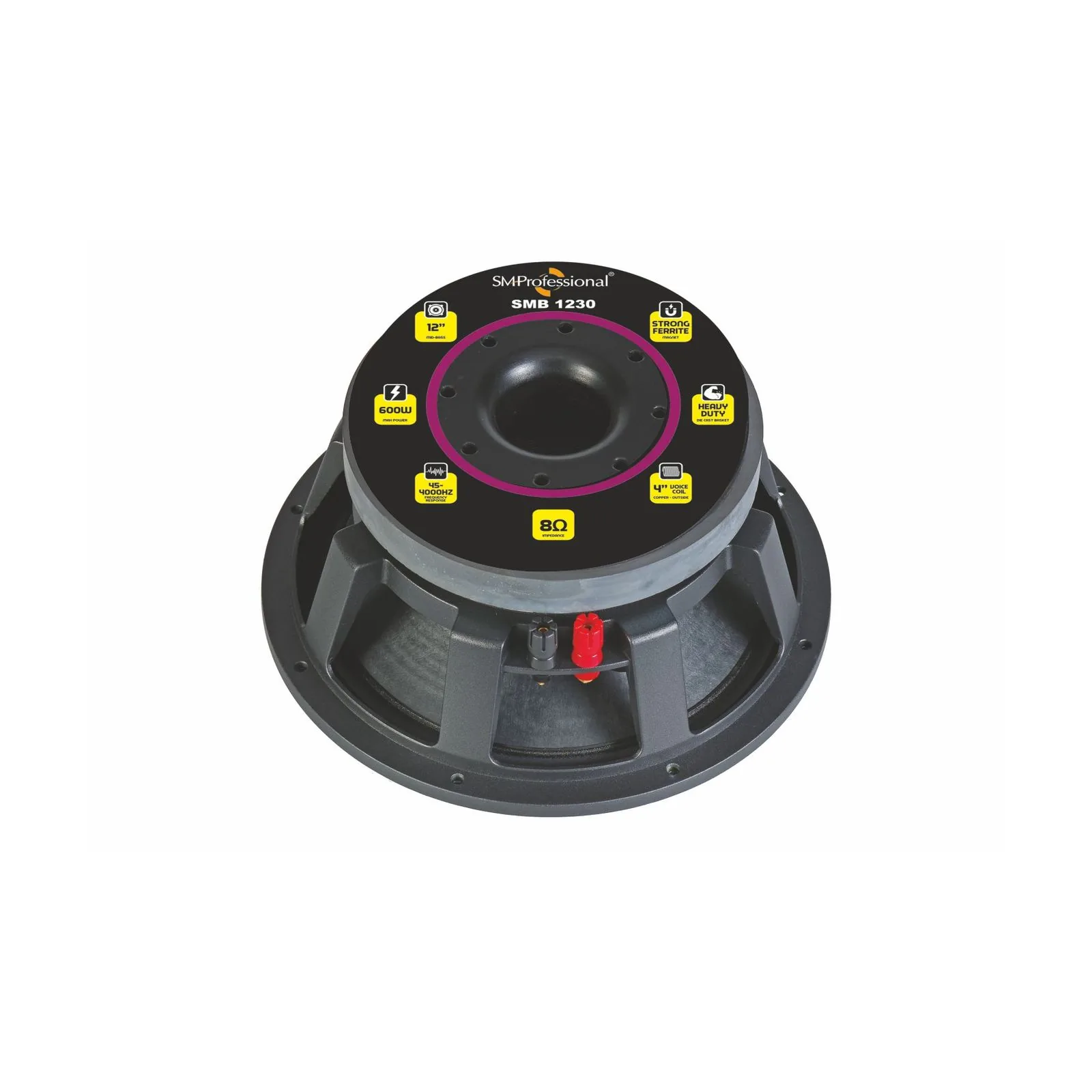

The SM Professional S-SERIES Components are made from high quality parts which ensure excellent sound reproduction.
The transducers are built to last for years, without losing their sonic qualities.
Features
- High quality transducers with excellent sensitivity & excursion capabilities.
- Highly recommended for two-way & three-way systems where high power handling and punch are required
- Designed to be extremely rugged, robust & sturdy, making it perfect for a variety of sound reinforcement systems.
Specifications, Q&A and videos
| Series | S Series |
|---|---|
| Product Type | Mid-Bass |
| Power Output (RMS / Peak) Watts | 300/600 |
| Frequency Range (Hz) | 45-4000 |
| Impedance (Ω) | 8 |
| Sensitivity (1w @ 1m) dB | 96 |
| Nominal Diameter | 300/12 |
| Voice Coil Diameter(mm/Inch) | 100/4 |
| Voice Coil Material | Copper |
| Kind of Layer | Outside |
| Basket | Die-cast |
| Net Weight (Kgs.) | 9.5 |
The SMB 1230 is an SM Professional PA product in the SMB Series rated 600 WATTS. The SM Professional S-SERIES Components are made from high quality parts which ensure excellent sound reproduction. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
High quality transducers with excellent sensitivity & excursion capabilities; Highly recommended for two-way & three-way systems where high power handling and punch are required; Designed to be extremely rugged, robust & sturdy, making it perfect for a variety of sound reinforcement systems.
The SMB 1230 product type is Mid-Bass.
The SMB 1230 power output (rms / peak) watts is 300/600.
The SMB 1230 frequency range (hz) is 45-4000.
The SMB 1230 impedance (ω) is 8.
The SMB 1230 sensitivity (1w @ 1m) db is 96.
