SM Professional
SD 300
- Category
- Processors
- Category
- Effects Processors

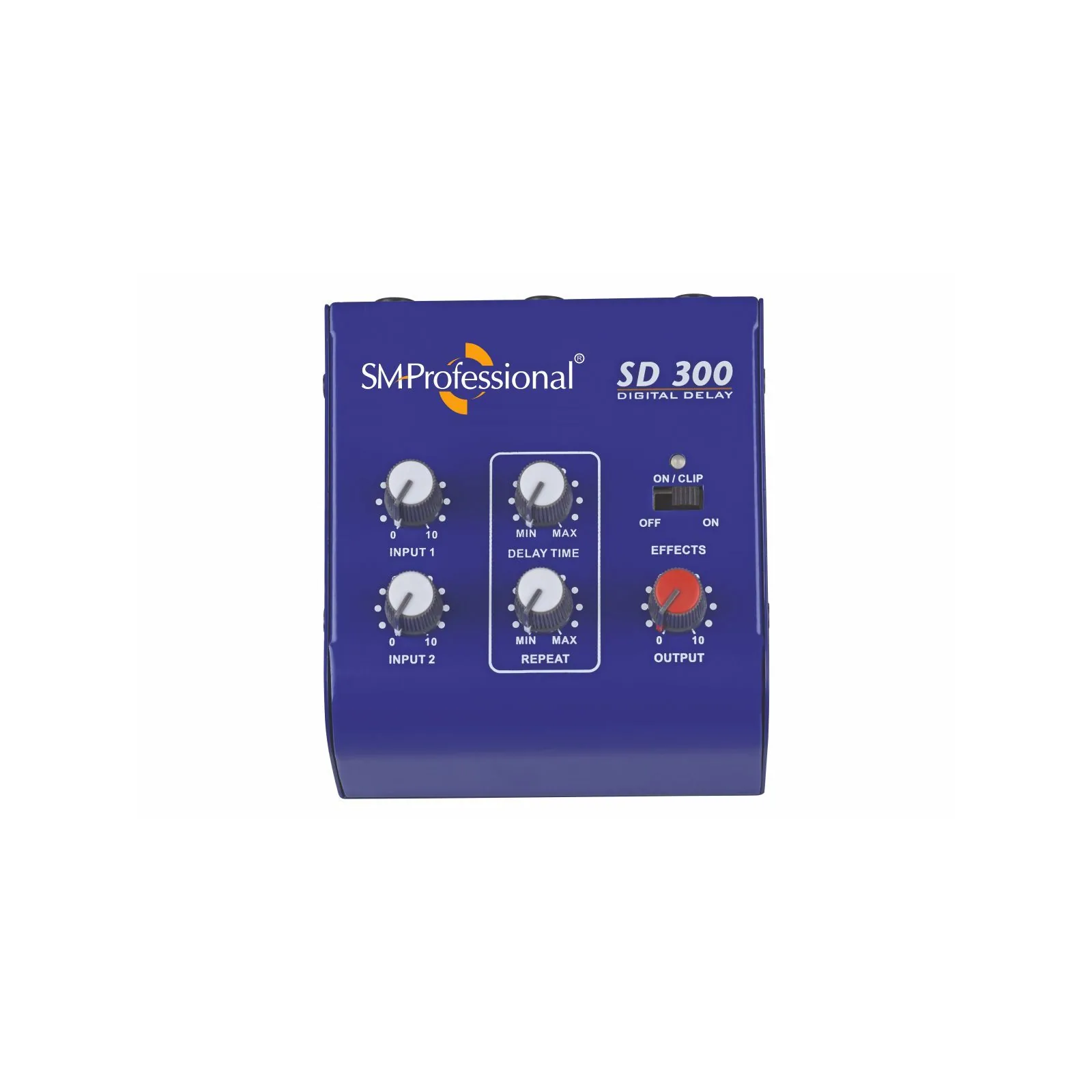

The SM Professional SD 300 is a compact high-quality digital delay EFX processor ideal for a variety of singing, musical, and vocal applications in live, touring, and public address scenarios.
Features
- High-performance digital delay EFX processor.

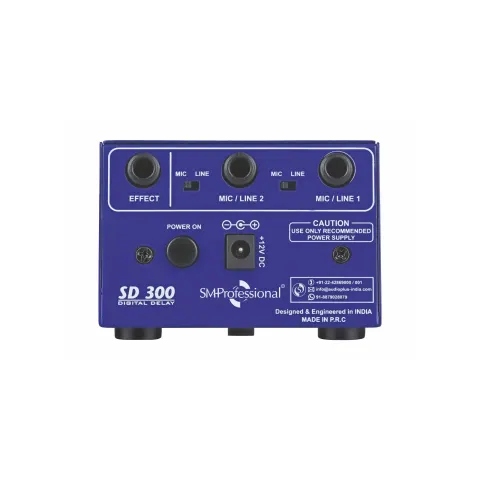

- Features 2 x professional-grade 1/4" unbalanced Mic/Line inputs and 1 x output.
- Inputs switchable between Mic and Line.
- Delay time and repeat control for a variety of effect options.
- Individual level controls for the inputs and effect output.
- Convenient effect ON/OFF or bypass switch.
- Works on +12V DC adapter as well as +9V DC battery.
- Elegant look with a compact build size for easy portability.
Specifications, Q&A and videos
| Input Impedance ( Mic / Line ) | > 2.5 K / > 20 K |
|---|---|
| Sensitivity Mic / Line | - 34dB (15.5mV) / - 3.5dB (518mV) |
| S/N Ratio Mic / Line | >65 / >70 |
| THD | 0.10% |
| Frequency Response Mic / Line | 0 dB @ 50Hz - 15kHz / 0 dB @ 50Hz - 20kHz |
| Current Consumption | 55 mA DC Max. |
| Dimensions (W x D x H) | 90 x 93 x 55 mm. |
| Net Weight (GMS) | 400 |
The SD 300 is an SM Professional Processor. The SM Professional SD 300 is a compact high-quality digital delay EFX processor ideal for a variety of singing, musical, and vocal applications in live, touring, and public. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
High-performance digital delay EFX processor; Features 2 x professional-grade 1/4" unbalanced Mic/Line inputs and 1 x output; Inputs switchable between Mic and Line; Delay time and repeat control for a variety of effect options; Individual level controls for the inputs and effect output; Convenient effect ON/OFF or bypass switch.
The SD 300 input impedance ( mic / line ) is > 2.5 K / > 20 K.
The SD 300 sensitivity mic / line is - 34dB (15.5mV) / - 3.5dB (518mV).
The SD 300 s/n ratio mic / line is >65 / >70.
The SD 300 thd is 0.10%.
The SD 300 frequency response mic / line is 0 dB @ 50Hz - 15kHz / 0 dB @ 50Hz - 20kHz.
