SM Professional
MULTI 6
- Channels
- 8 Channels
- Series
- MULTI Series
- Category
- Processors
- Category
- Effects Processors

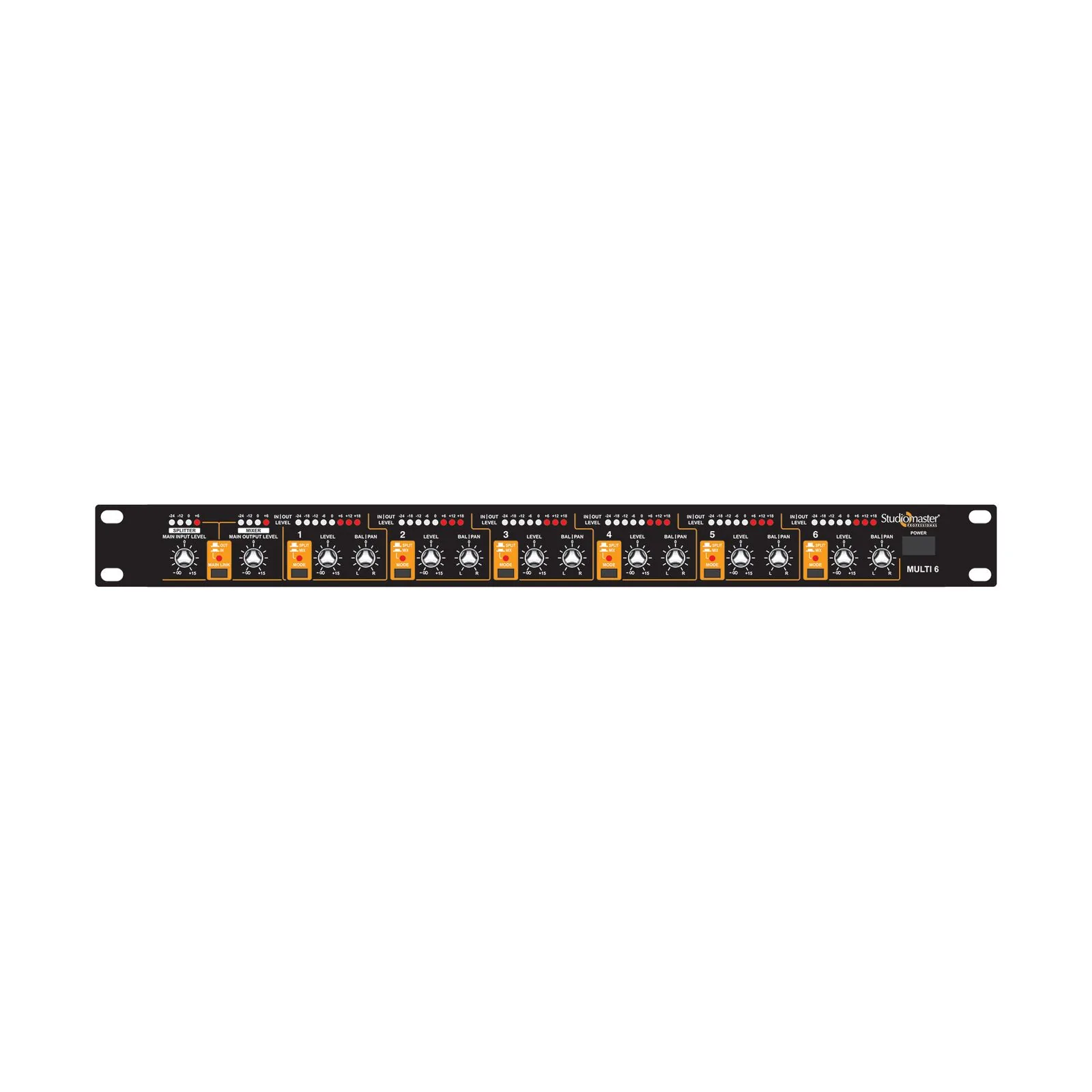

The SM Professional MULTI 6 is a high quality multipurpose 8 channel splitter/mixer designed to suit a wide variety of applications in fixed installations, PA, and live sound reinforcement.
Features
- 4 modes of operation: 2 In – 6 Out c 6 In – 8 Out 2 In – 8 Out 8 In – 8 Out
- 2 In – 6 Out
- c 6 In – 8 Out
- 2 In – 8 Out
- 8 In – 8 Out
- 8 balanced inputs + 8 balanced outputs.
- Each channel is provided with SPLIT / MIX mode, level, pan control, and LED bargraph.
- Main in / out is provided with level controls, link switch, and LED bargraph.

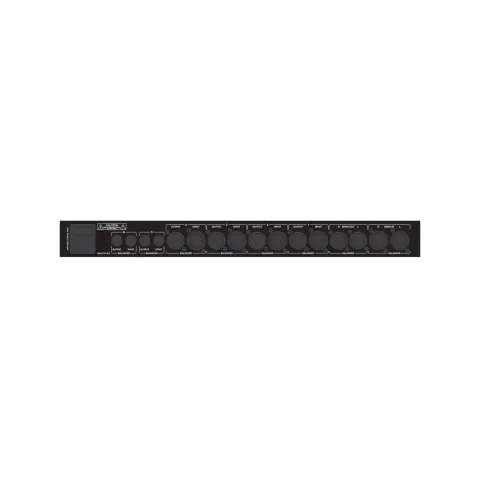

- Main and 1-4 inputs and outputs via balanced XLR connectors.
- 5-6 inputs and outputs via balanced ¼” TRS jack connectors.
- All switches with LED status indicators.
Specifications, Q&A and videos
| Input Sensitivity | 0dBu (0.775v RMS) |
|---|---|
| Input Impedance | >20K Ohms Balanced / 10k Ohms Unbalanced |
| Maximum Output level | +20dBu |
| Frequency Range | 20Hz - 20kHz (± 0.5 db) |
| Dimensions (W x D x H) | 483 x 462 x 44.5 |
| Net Weight (Kg) | 2.4 |
The MULTI 6 is an SM Professional PA product in the MULTI Series. The SM Professional MULTI 6 is a high quality multipurpose 8 channel splitter/mixer designed to suit a wide variety of applications in fixed installations, PA, and live sound. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
4 modes of operation: 2 In – 6 Out c 6 In – 8 Out 2 In – 8 Out 8 In – 8 Out; 2 In – 6 Out; c 6 In – 8 Out; 2 In – 8 Out; 8 In – 8 Out; 8 balanced inputs + 8 balanced outputs.
The MULTI 6 input sensitivity is 0dBu (0.775v RMS).
The MULTI 6 input impedance is >20K Ohms Balanced / 10k Ohms Unbalanced.
The MULTI 6 maximum output level is +20dBu.
The MULTI 6 frequency range is 20Hz - 20kHz (± 0.5 db).
The MULTI 6 dimensions (w x d x h) is 483 x 462 x 44.5.
