Ahuja
SAX-300DX
- Power
- 300 WATTS
- Series
- SAX Series
- Category
- Speakers
- Category
- Passive Speakers

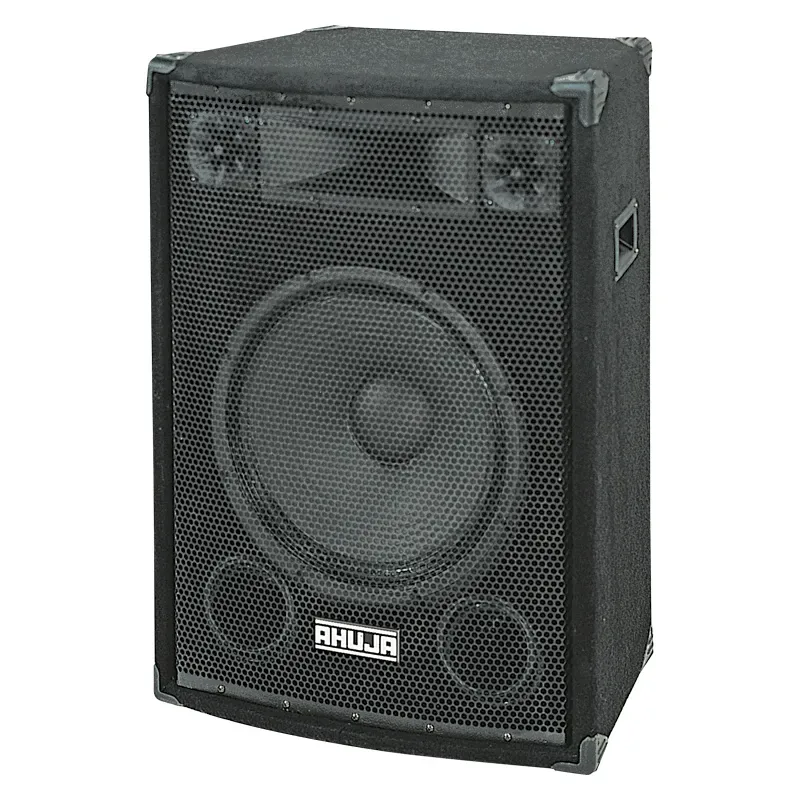

The Ahuja SAX-300DX is a 300W PA speaker system with 15" LF woofer and dynamic horn.
Professional 3-Way Loudspeaker consisting of one high efficiency, high SPL 38.1 cm (15”) LF speaker, a 2.54 cm (1”) HF Compression Driver and two Piezo Tweeters, for excellent high frequency response.
Features
- Professional 3-Way Loudspeaker consisting of one high efficiency, high SPL 38.1 cm (15”) LF speaker, a 2.54 cm (1”) HF Compression Driver and two Piezo Tweeters, for excellent high frequency response.
- The system is housed in a Rugged Bass Reflex Trapezoidal Enclosure made of 18 mm board, and Carpet covered.
- A Stand Adapter is provided at the bottom for stand mounting.
- The trapezoidal cabinet design assures optimum low frequency performance.
- An On/Off switch for the piezo speakers is provided to limit extended HF if desired.
- The speaker is ideal for PA as well as music performances.
Specifications, Q&A and videos
| Input Power | 300W RMS |
|---|---|
| Configuration | Three Way |
| Frequency Response | 40-20,000Hz |
| Low Frequency Speaker | 1 x 381 mm (15”), Ø76.2 mm (3”) Edge Wound Voice Coil |
| High Frequency Unit | Dynamic Horn, 101.6 mm (4”) x 254 mm (10”) + 2 Piezo Tweeters |
| SPL at (1W/1m) | 100dB |
| Max. Rated SPL | 125dB |
| Nominal Impedance | 8Ω |
| Crossover Frequency | 4kHz |
| Port | Free Flow Flared |
| Input Connectors | 1/4” Phone Jack + Terminal Strip |
| Dimensions | W550 × H755 × D425 mm |
| Weight | 33.00kg |
The SAX-300DX is an Ahuja PA speaker system in the SAX Series rated 300 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Professional 3-Way Loudspeaker consisting of one high efficiency, high SPL 38.1 cm (15”) LF speaker, a 2.54 cm (1”) HF Compression Driver and two Piezo Tweeters, for excellent high frequency response; The system is housed in a Rugged Bass Reflex Trapezoidal Enclosure made of 18 mm board, and Carpet covered; A Stand Adapter is provided at the bottom for stand mounting; The trapezoidal cabinet design assures optimum low frequency performance; An On/Off switch for the piezo speakers is provided to limit extended HF if desired; The speaker is ideal for PA as well as music performances.
The SAX-300DX input power is 300W RMS.
The SAX-300DX configuration is Three Way.
The SAX-300DX frequency response is 40-20,000Hz.
The SAX-300DX low frequency speaker is 1 x 381 mm (15”), Ø76.2 mm (3”) Edge Wound Voice Coil.
The SAX-300DX high frequency unit is Dynamic Horn, 101.6 mm (4”) x 254 mm (10”) + 2 Piezo Tweeters.
