Ahuja
SAX-200DX
- Power
- 200 WATTS
- Series
- SAX Series
- Category
- Speakers
- Category
- Passive Speakers

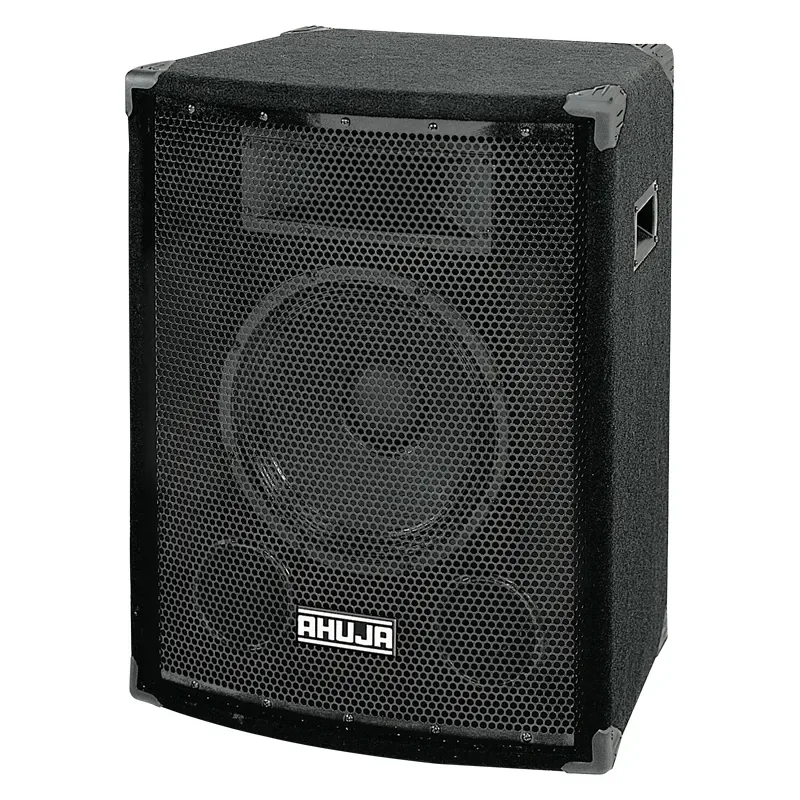

The Ahuja SAX-200DX is a 200W PA speaker system with 12" LF woofer and dynamic horn.
Professional 2-Way Loudspeaker consists of one high efficiency 30.48 cm (12”) LF speaker and a 2.54 cm (1”) HF Compression Driver.
Features
- Professional 2-Way Loudspeaker consists of one high efficiency 30.48 cm (12”) LF speaker and a 2.54 cm (1”) HF Compression Driver.
- The system is housed in a Rugged Bass Reflex Trapezoidal Enclosure made of 18 mm board, and Carpet covered.
- A Stand Adapter at the bottom for stand mounting is also provided.
- The trapezoidal enclosure construction assures optimum low frequency performance and smoothness with minimum interference from standing waves and box resonance.
- The speaker produces high sound pressure levels with accuracy in any environment and thus is ideal for all PA and music performances.
Specifications, Q&A and videos
| Input Power | 200W RMS |
|---|---|
| Configuration | Two Way |
| Frequency Response | 45-20,000Hz |
| Low Frequency Speaker | 1 x 304.8 mm (12”), Ø50.8 mm (2”) Voice Coil |
| High Frequency Unit | Dynamic Horn, 101.6 mm (4”) × 254 mm (10”) |
| SPL at (1W/1m) | 97dB |
| Max. Rated SPL | 119dB |
| Nominal Impedance | 8Ω |
| Crossover Frequency | 4kHz |
| Port | Free Flow Flared |
| Input Connectors | 6.35mm (1/4”) Phone Jack + Terminal Strip |
| Dimensions | W510 × H655 × D405 mm |
| Weight | 25.50kg |
The SAX-200DX is an Ahuja PA speaker system in the SAX Series rated 200 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Professional 2-Way Loudspeaker consists of one high efficiency 30.48 cm (12”) LF speaker and a 2.54 cm (1”) HF Compression Driver; The system is housed in a Rugged Bass Reflex Trapezoidal Enclosure made of 18 mm board, and Carpet covered; A Stand Adapter at the bottom for stand mounting is also provided; The trapezoidal enclosure construction assures optimum low frequency performance and smoothness with minimum interference from standing waves and box resonance; The speaker produces high sound pressure levels with accuracy in any environment and thus is ideal for all PA and music performances.
The SAX-200DX input power is 200W RMS.
The SAX-200DX configuration is Two Way.
The SAX-200DX frequency response is 45-20,000Hz.
The SAX-200DX low frequency speaker is 1 x 304.8 mm (12”), Ø50.8 mm (2”) Voice Coil.
The SAX-200DX high frequency unit is Dynamic Horn, 101.6 mm (4”) × 254 mm (10”).
