SM Professional

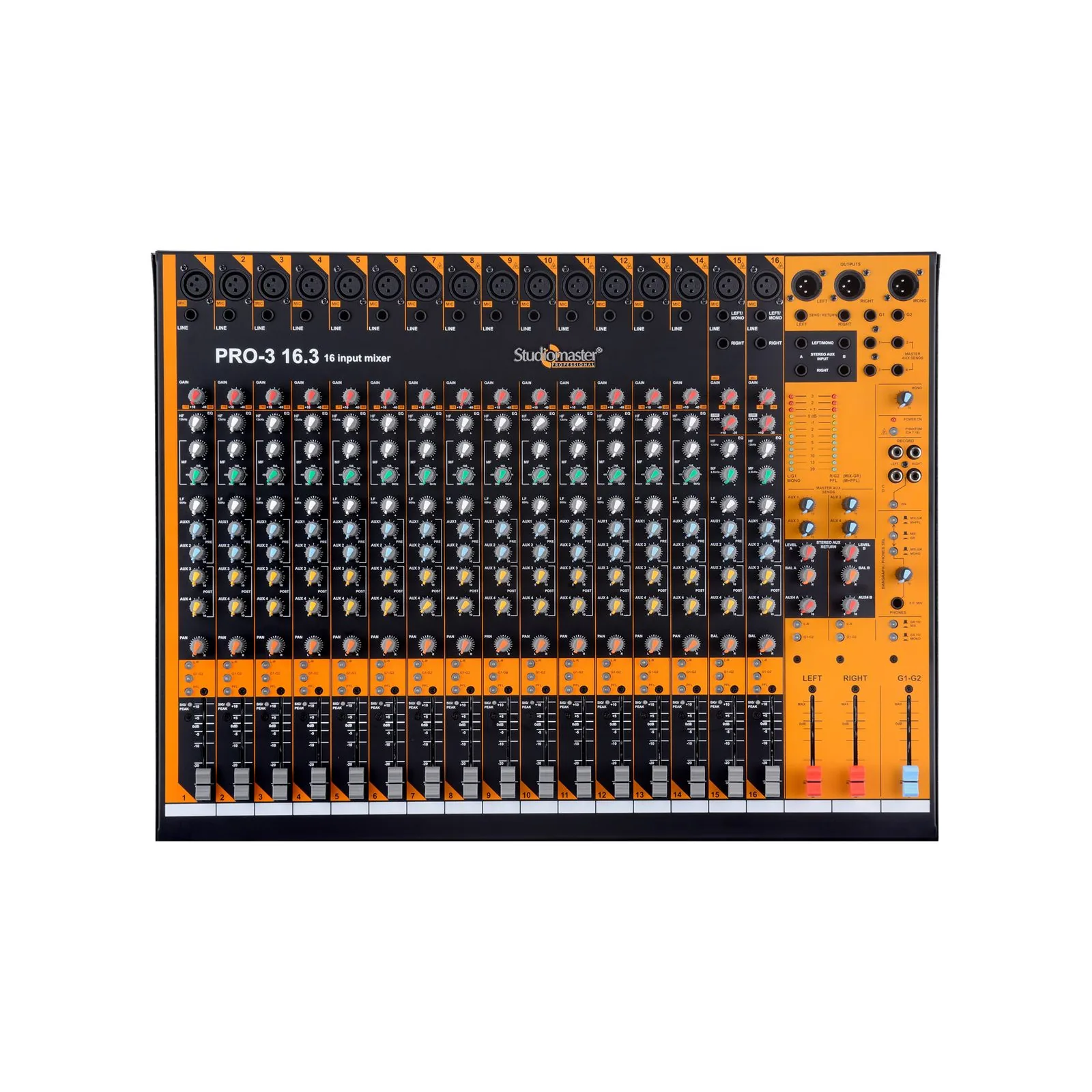

Pro 16.3
- Series
- PRO 3 Series
- Category
- Mixers
- Category
- Analog Mixers
The Pro 3 Series combines the simplicity of the Diamond Club series with the requirement of more complex professional applications.
Features
- 16 Mic/14 Line + 2 Mono/Stereo
- Balanced Mic/Line inputs.
- Monster (Mono-Stereo) Inputs for full flexibility.
- Gain control with 3 Band EQ & mid-sweep on each channel.
- 4 Aux Send/level AB & Aux 4 AB returns on board.
- L/R Pan/Bal control & Signal/Peak led per channel.
- Master (L-R), Group (G1-G2), PFL Self illuminated switches per channel.
- Aux 1/2 – Pre fader & Aux 3/4 – Post fader.
- Group switchable to Main Mix/Mono or both.
- Headphone & bargraph monitoring by selection of Mix/Group & Mono/PFL.
- Stereo CD In/Record Out & ¼” Headphone out.
- Balanced XLR Master Output.
- Separate Mono Output with Level Control on Balanced XLR connector.
- Switchable +48V Phantom on all channels except first 6 channels.
- 12 Segments LED Meter.
- Operates on wide mains supply variation 150V-240V.
Specifications, Q&A and videos
| Series | Pro III Series |
|---|---|
| Nominal Gain (Mic/Line/Stereo Line) | 60dB/40dB/20dB |
| Max Gain (Mic/Line/Stereo Line) | 80dB/60dB/40dB |
| Mic (Gain Min/Gain Max) | -10dBu / -60dBu |
| Line (Gain Min /Gain Max) | -10dBu / -40dBu |
| Stereo (Gain Min /Gain Max) | +10dBu / -20dBu |
| Mic Input | Typically 1.7K Ω balanced |
| Line input | 17K Ω (Balanced) /8K Ω (Unbalanced) |
| Main Output level (Nominal / Max) | +0dBu (0.775V RMS) / +22dBu (10V RMS) |
| Main Output Impedance | <30 Ω |
| Frequency Response | 20Hz to 20KHz (+0/-1 dB) |
| Total Harmonic Distortion | <0.1 |
| Signal to Noise Ratio | -78 dB |
| Clip indication | 5 dB prior to true clip |
| Mono Mic [Treble/Mid(with sweep)/Bass] | ±16dB @ 12KHz/350Hz-6KHz/60 Hz |
| Stereo Mic/Line (Treble/Mid/Bass) | ±16dB @ 12KHz/2.5 Hz/45 Hz |
| Phantom Supply | +48V (Ch 7-16) |
| Power Supply | 150V~250V AC/50Hz |
| Dimensions (W x D x H in mm) | 599 x 460 x 128 |
| Net Weight (Kgs.) | 10.6 |
The Pro 16.3 is an SM Professional Professional mixing consoles with expanded routing in the PRO 3 Series. The Pro 3 Series combines the simplicity of the Diamond Club series with the requirement of more complex professional applications. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
16 Mic/14 Line + 2 Mono/Stereo; Balanced Mic/Line inputs; Monster (Mono-Stereo) Inputs for full flexibility; Gain control with 3 Band EQ & mid-sweep on each channel; 4 Aux Send/level AB & Aux 4 AB returns on board; L/R Pan/Bal control & Signal/Peak led per channel.
The Pro 16.3 nominal gain (mic/line/stereo line) is 60dB/40dB/20dB.
The Pro 16.3 max gain (mic/line/stereo line) is 80dB/60dB/40dB.
The Pro 16.3 mic (gain min/gain max) is -10dBu / -60dBu.
The Pro 16.3 line (gain min /gain max) is -10dBu / -40dBu.
The Pro 16.3 stereo (gain min /gain max) is +10dBu / -20dBu.
