SM Professional
The Pro 3 Series combines the simplicity of the Diamond Club series with the requirement of more complex professional applications.
The Pro 3 Series combines the simplicity of the Diamond Club series with the requirement of more complex professional applications.
| Series | Pro III Series |
|---|---|
| Nominal Gain (Mic/Line/Stereo Line) | 60dB/40dB/20dB |
| Max Gain (Mic/Line/Stereo Line) | 80dB/60dB/40dB |
| Mic (Gain Min/Gain Max) | -10dBu / -60dBu |
| Line (Gain Min /Gain Max) | -10dBu / -40dBu |
| Stereo (Gain Min /Gain Max) | +10dBu / -20dBu |
| Mic Input | Typically 1.7K Ω balanced |
| Line input | 17K Ω (Balanced) /8K Ω (Unbalanced) |
| Main Output level (Nominal / Max) | +0dBu (0.775V RMS) / +22dBu (10V RMS) |
| Main Output Impedance | <30 Ω |
| Frequency Response | 20Hz to 20KHz (+0/-1 dB) |
| Total Harmonic Distortion | <0.1 |
| Signal to Noise Ratio | -78 dB |
| Clip indication | 5 dB prior to true clip |
| Phantom Supply | +48V (Ch 7-12) |
| Power Supply | 150V~250V AC/50Hz |
| Dimensions (W x D x H in mm) | 480 x 460 x 128 |
| Net Weight (Kgs.) | 9.2 |

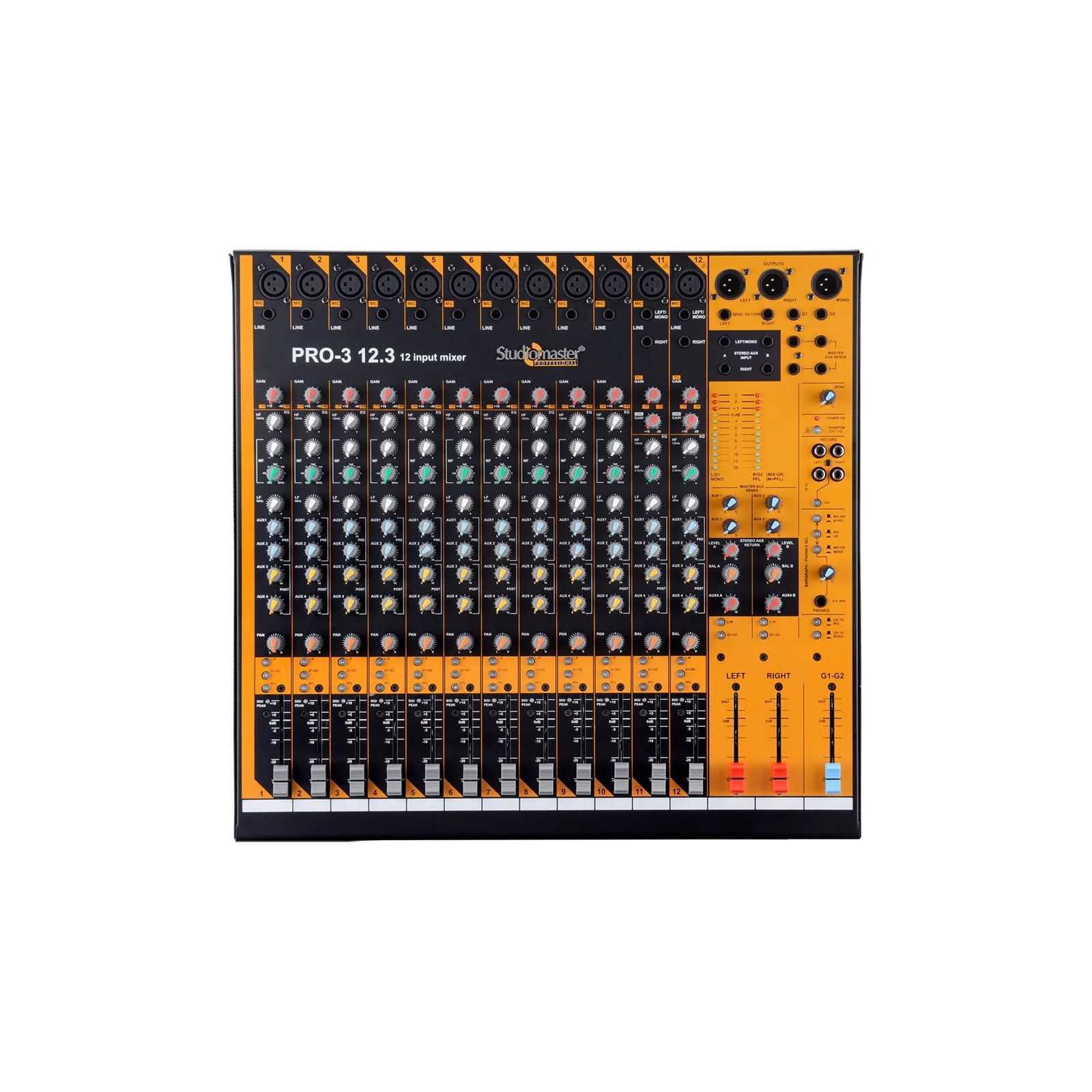

The Pro 12.3 is an SM Professional professional mixing consoles with expanded routing in the PRO 3 Series. The Pro 3 Series combines the simplicity of the Diamond Club series with the requirement of more complex professional applications. Available from Mansukhlal Sales Corp, an authorized dealer.
12 Mic/10 Line + 2 Mono/Stereo; Balanced Mic/Line inputs; Monster (Mono-Stereo) Inputs for full flexibility; Gain control with 3 Band EQ & mid-sweep on each channel; 4 Aux Send/level AB & Aux 4 AB returns on board; L/R Pan/Bal control & Signal/Peak led per channel.
The Pro 12.3 nominal gain (mic/line/stereo line) is 60dB/40dB/20dB.
The Pro 12.3 max gain (mic/line/stereo line) is 80dB/60dB/40dB.
The Pro 12.3 mic (gain min/gain max) is -10dBu / -60dBu.
The Pro 12.3 line (gain min /gain max) is -10dBu / -40dBu.
The Pro 12.3 stereo (gain min /gain max) is +10dBu / -20dBu.
